2909676 PHOENIX CONTACT -

PLC-RPT-230UC/21AU/MS - Relay Module

PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal block with Push-in connection and plug-in miniature relay with multi-layer gold contact and manual operation, 1 changeover contact, 230 V AC/220 V DC input voltage

Cod. Articolo: 2909676 copia - copy

Cod. Fornitore: 2909676 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Palm switch Operating mode: 100% operating factor Mechanical service life: 2x 10⁷ cycles
Electrical properties	Maximum power dissipation for nominal condition: 0.74 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact) Insulation characteristics: Coil/contact Rated insulation voltage: 250 V Rated impulse withstand voltage: 6 kV Overvoltage category: III Degree of pollution: 3

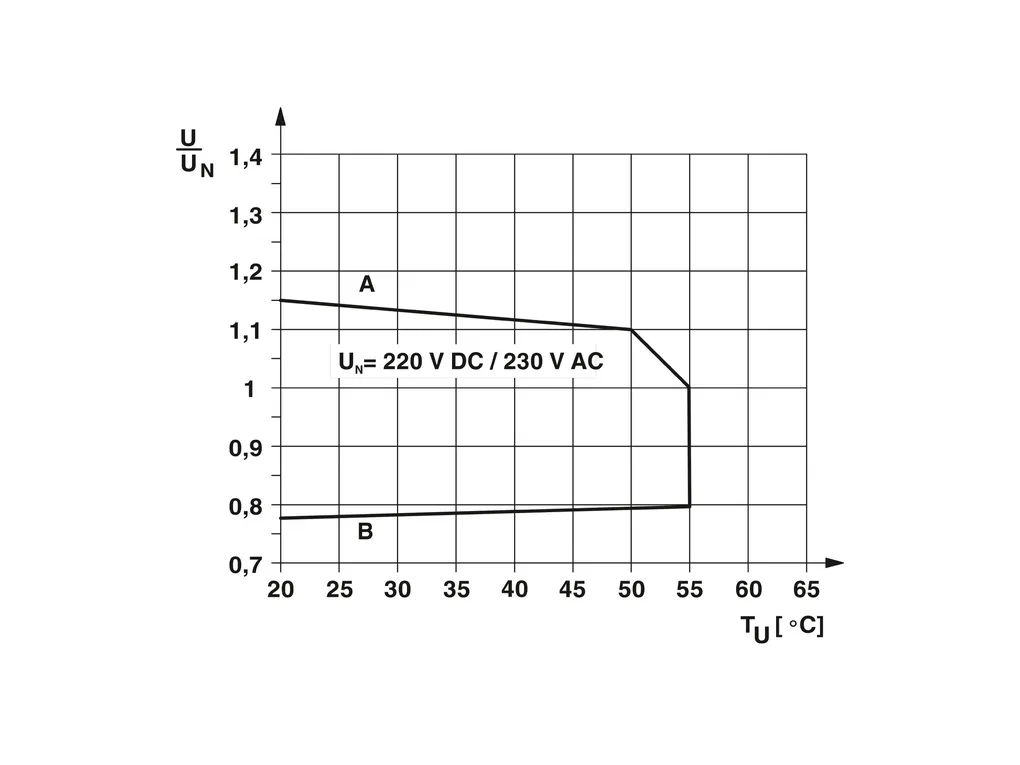

Input data	Coil side Nominal input voltage U_N: 230 VÃAC 220 VÃDC Input voltage range: 179.4 VÃAC ... 264.5 VÃAC (20Ã°C) 171.6 VÃDC ... 253 VÃDC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 3.2 mA (at U_N = 230 V AC) 3 mA (at U_N = 220 V DC) Typical response time: 7 ms Typical release time: 15 ms Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgSnO, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV (at 10 mA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (24ÃV) Short-circuit current: 200 A (conditional short-circuit current) Interrupting rating (ohmic load) max.: 1.2 W (at 24 V DC) Output fuse: 4 A gL/gG NEOZED Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 5 V (at 100 mA) Limiting continuous current: 6 A Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 20 W (at 48 V DC) 18 W (at 60 V DC) 23 W (at 110 V DC) 40 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.1 A (at 220 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 3 A (at 230 V, AC15)
Connection data	Connection method: Push-in connection Stripping length: 10 mm Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14
Dimensions	Width: 6.2 mm Height: 80 mm Depth: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay): RT III (Relay) Degree of protection (Relay base): IP20 (Relay base) Ambient temperature (operation): -40°C ... 55°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Standards/regulations Standards/regulations: IEC 60664 IEC 60664A DINÃVDEÃ0110 IEC 60255/DIN VDE 0435 (in relevant parts)
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
