2910514 PHOENIX CONTACT -

PLC-RSC- 24DC/21HC/MS - Relay Module

PLC-INTERFACE, consisting of a relay base and pluggable power contact relay with manual operation, integrated status LED and freewheeling diode, Screw connection, 1changeover contact, Polarity protection diode, Freewheeling diode, Input voltage: 24 VDC

Cod. Articolo: 2910514 copia - copy

Cod. Fornitore: 2910514 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Palm switch High continuous currents Operating mode: 100% operating factor Mechanical service life: 5x 10⁶cycles Insulation characteristics Insulation: Safe isolation, reinforced insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Safe isolation, reinforced insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Maximum power dissipation for nominal condition: 0.44 W Test voltage (Winding/contact): 4 kV_rms (50ÃHz, 1Ãmin., winding/contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV

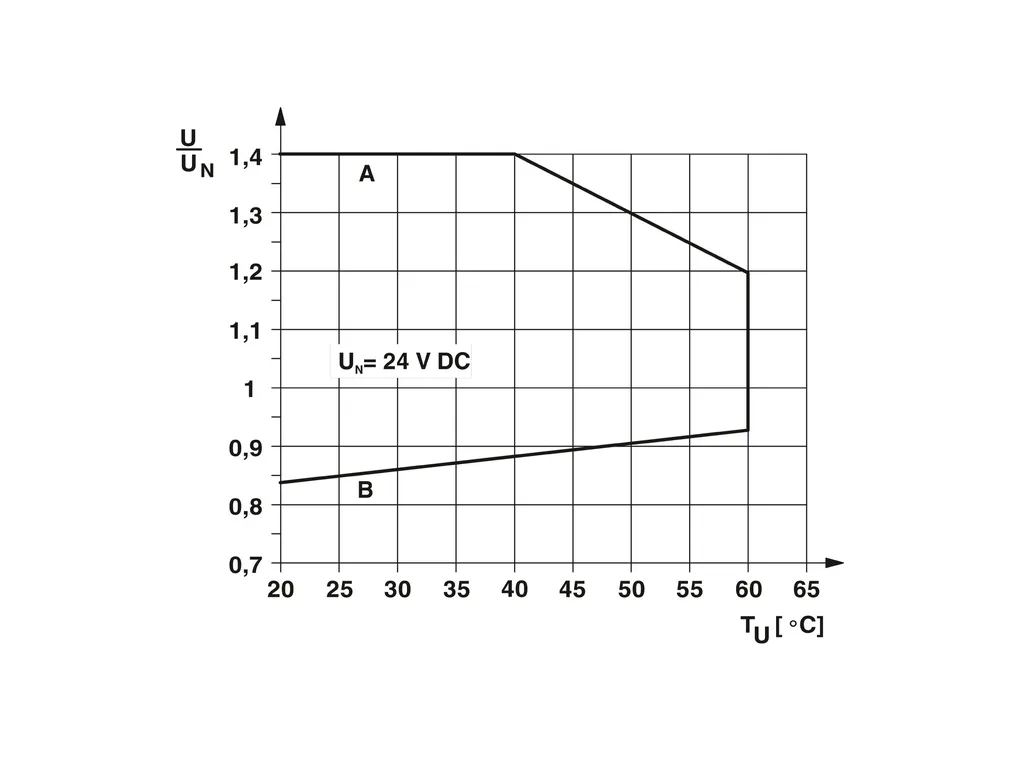

Input data	Coil side Nominal input voltage U_N: 24 VÃDC Input voltage range: 20.2 VÃDC ... 33.6 VÃDC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 18 mA Typical response time: 10 ms Typical release time: 10 ms Coil voltage: 24 VÃDC Protective circuit: Reverse polarity protection; Polarity protection diode Freewheeling diode; Freewheeling diode Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) Minimum switching voltage: 12 V (10ÃmA) Limiting continuous current: 10 A Maximum inrush current: 24 A (20Ãms) Min. switching current: 10 mA (12ÃV) Interrupting rating (ohmic load) max.: 264 W (24ÃVÃDC) 62 W (48ÃVÃDC) 48 W (60ÃVÃDC) 52 W (110ÃVÃDC) 66 W (220ÃVÃDC) 2750 VA (250ÃVÃAC) Switching capacity: 2 A (24ÃV, DC13) 3 A (230 V, AC15)
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm
Dimensions	Width: 14 mm Height: 80 mm Depth: 104 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay): RT II (Relay) Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Installation location): Ã¢Ã¢°¥ IP54 (Installation location) Ambient temperature (operation): -40°C ... 60°C Ambient temperature (storage/transport): -20°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 UL, USA Identification: ULÃ508 ULÃ508 Recognized UL, USA/Canada Identification: ULÃ508 ULÃ508 Recognized Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
