2943259 PHOENIX CONTACT -

EMG 17-OV-TTL/ 24DC/2 - Solid-state relay module

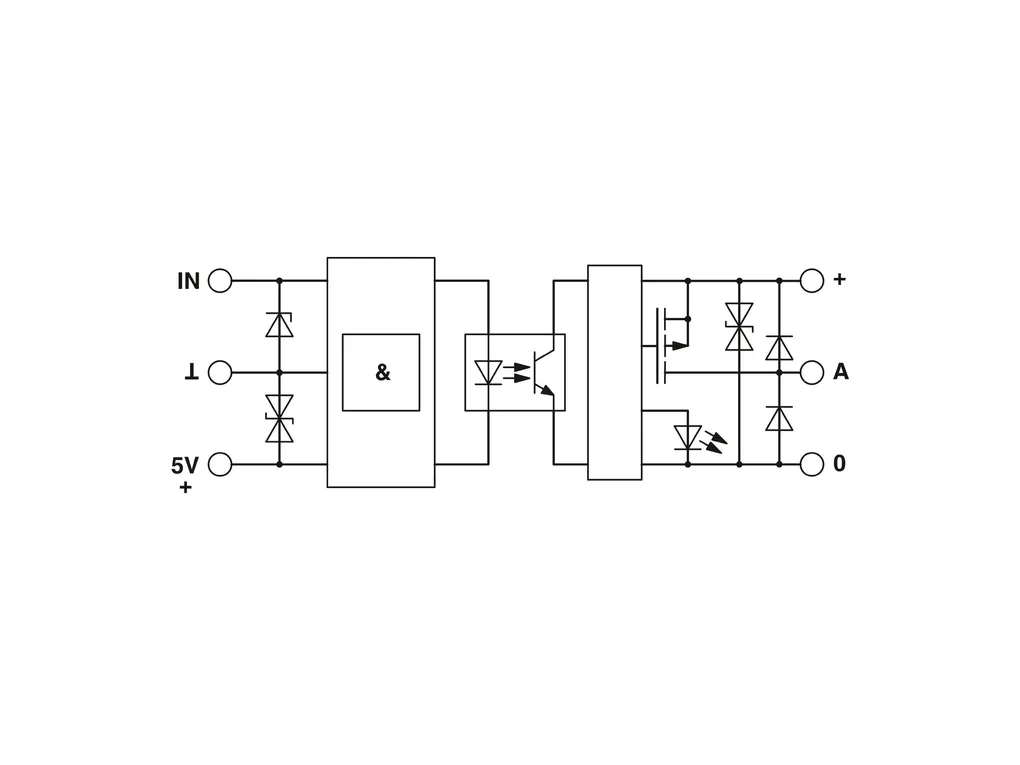

Power solid-state relay, with LED and protective circuit in input and output circuits, input: TTL 5 V DC, output: short-circuit-proof, 24 V DC/max. 2 A

Cod. Articolo: 2943259 copia - copy

Cod. Fornitore: 2943259 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Solid-state relay module Application: TTL signal at input Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 2
Electrical properties	Test voltage (Input/output): 2.5 kV AC (Input/output)
Input data	Nominal input voltage U_N: 5 VÃDC (TTL) Input voltage range in reference to U_N: 0.8 ... 1.2 Input voltage range: 4 VÃDC ... 6 VÃDC Switching threshold "0" signal, voltage: 0.8 V (TTL) Switching threshold "1" signal voltage: 2 V (TTL) Typical input current at U_N: 2.6 mA Typical response time: 170 Ãµs Typical turn-off time: 190 Ãµs Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Surge protection; Suppressor diode Free running; Freewheeling diode Auxiliary voltage TTL input: 5 VÃDC Ã±20Ã% Auxiliary current TTL input: 2.8 mA Transmission frequency: 1000 Hz
Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output voltage range: 10 VÃDC ... 30 VÃDC Limiting continuous current: 2 A (see derating curve) Leakage current: 150 ÃµA Peak offstate voltage: 33 VÃDC (Collector-emitter reverse voltage) Current limitation at short-circuits: > 2 A (short-circuit-proof) Voltage drop at max. limiting continuous current: Ã¢Ã¢°¤ 0.3 V Output circuit: 3-conductor, ground-referenced Error indication: Red LED Protective circuit: Reverse polarity protection; Polarity protection diode Freewheeling diode; Freewheeling diode Surge protection; Suppressor diode
Connection data	Input side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Output side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Width: 17.5 mm Height: 75 mm Depth: 102 mm
Material specifications	Flammability rating according to UL 94: V0
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 ENÃ50178
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
