2944229 PHOENIX CONTACT -

EMG 10-OV- 24DC/24DC/1 - Solid-state relay module

Power solid-state relay, with LED and protective circuit in input and output circuits, input: 24 V DC, output: 5 - 36 V DC/max. 1 A

Cod. Articolo: 2944229 copia - copy

Cod. Fornitore: 2944229 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Solid-state relay module Application: Output function Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation
Electrical properties	Maximum power dissipation for nominal condition: 0.11 W Test voltage (Input/output): 3.5 kV AC (Input/output)
Input data	Nominal input voltage U_N: 24 VÃDC Input voltage range in reference to U_N: 0.9 ... 1.1 Input voltage range: 21.6 VÃDC ... 26.4 VÃDC Switching threshold "0" signal in reference to U_N: Ã¢Ã¢°¤ 0.21 Switching threshold "1" signal in reference to U_N: Ã¢Ã¢°¥ 0.9 Typical input current at U_N: 4.4 mA Typical response time: 0.1 ms Typical turn-off time: 0.2 ms Status display: Yellow LED Protective circuit: Reverse polarity protection; Polarity protection diode Transmission frequency: 500 Hz

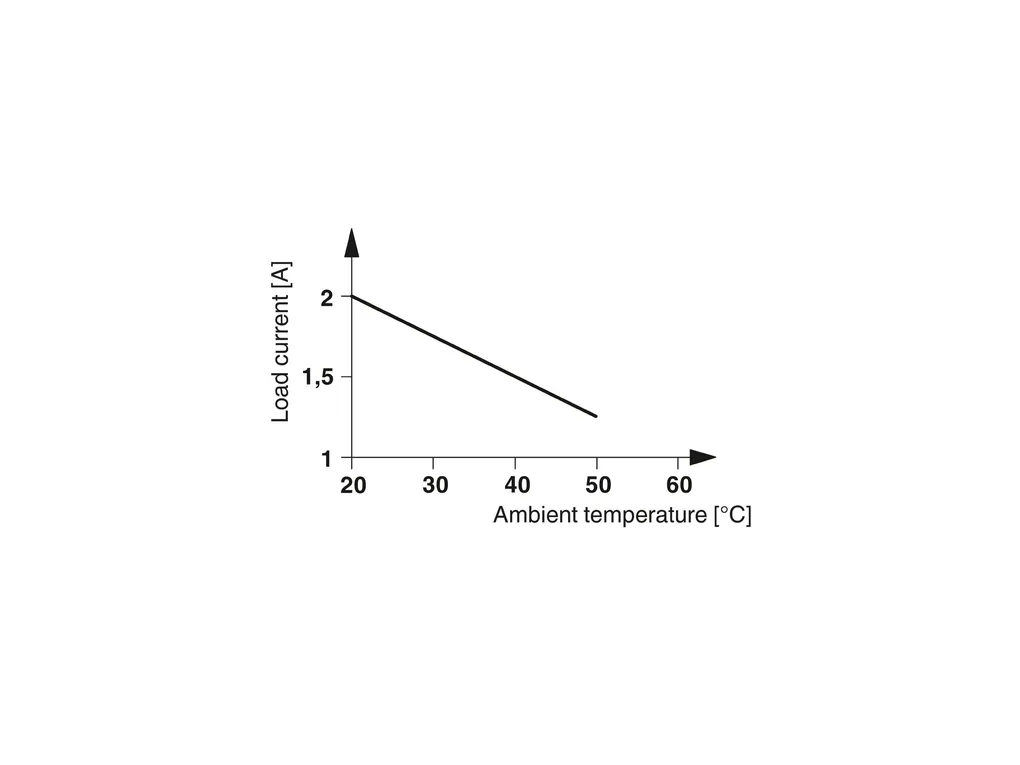

Output data	Contact switching type: 1 N/O contact Design of digital output: electronic Output nominal voltage: 24 VÃDC Output voltage range: 5 VÃDC ... 36 VÃDC Limiting continuous current: 1 A (see derating curve) Surge current: 2 A (tÃ=Ã1Ãs) Peak offstate voltage: 45 VÃDC (Collector-emitter reverse voltage) Voltage drop at max. limiting continuous current: Ã¢Ã¢°¤ 1 V Output circuit: 2-conductor, floating Protective circuit: Reverse polarity protection; Polarity protection diode
Connection data	Input side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 Output side Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12
Dimensions	Width: 10 mm Height: 75 mm Depth: 102 mm
Material specifications	Flammability rating according to UL 94: V0
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -20°C ... 70°C
Standards and regulations	Standards/regulations: IEC 60664 ENÃ50178
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
