| Product properties | Product type: Diode module Insulation characteristics Pollution degree: 2 |

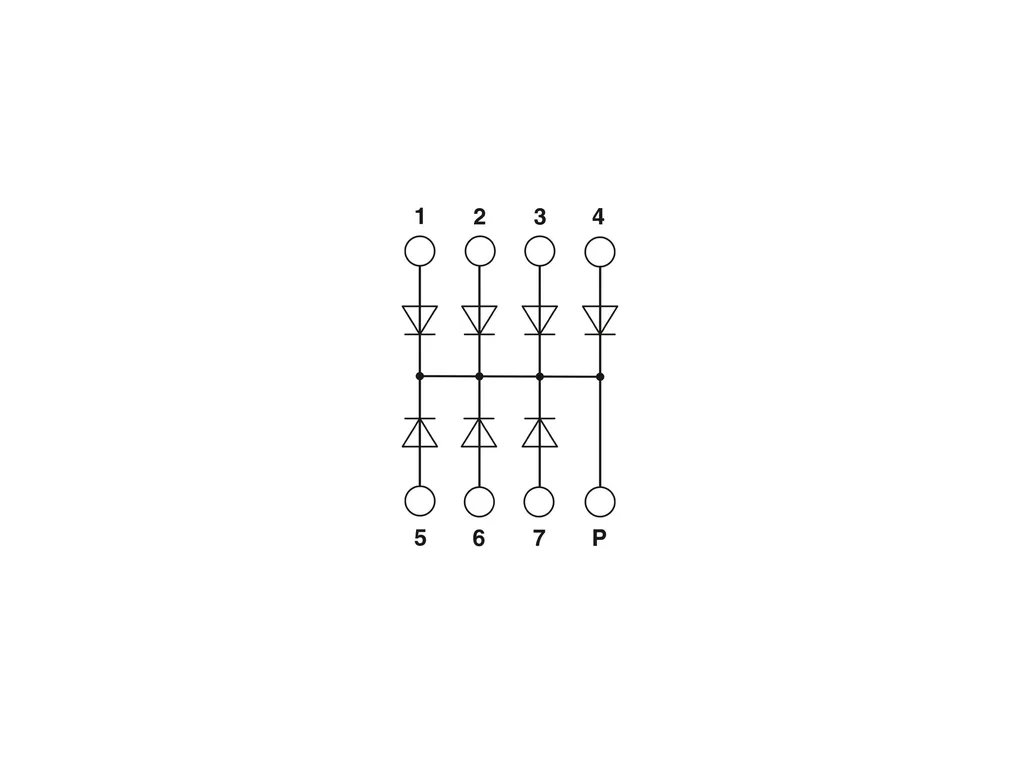

| Input data | Diode Description of the input: 7 diodes, common cathode Diode type: 1 N 4007 Max. operating voltage Umax: 250 VÃAC Peak reverse voltage per diode: 1300 V Reverse current per diode: 5 õA Conducting state voltage per diode: approx. 0.8 V Conducting state current per diode: 0.7 A (with single load) 0.5 A (with simultaneous loads) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Width: 22.5 mm Height: 75 mm Depth: 55 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -20°C ... 50°C Ambient temperature (storage/transport): -40°C ... 70°C |
| Approvals | CE Certificate: CE-compliant Note: and ENÃ61326 |
| Standards and regulations | Standards/regulations: DINÃENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
