2961299 PHOENIX CONTACT -

Product properties	Product type: Single relay Operating mode: 100% operating factor Mechanical service life: 3x 10⁷ cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 3
Electrical properties	Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.4 W Test voltage (Winding/contact): 5 kV AC (50ÃHz, 1Ãmin., winding/contact) Test voltage (Contact/contact): 2.5 kV AC (50ÃHz, 1Ãmin., contact/contact)
Input data	Coil side Nominal input voltage U_N: 12 VÃDC Input voltage range: 7.8 VÃDC ... 29.76 VÃDC Drive and function: monostable Drive (polarity): non-polarized Typical input current at U_N: 33 mA Typical response time: 7 ms Typical release time: 3 ms Coil resistance: 360 Ã© Ã±10Ã% (at 20Ã°C)
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV (at 10 mA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (at 24ÃV) Interrupting rating (ohmic load) max.: 1.2 W (at 24 V DC) Switching capacity min.: 0.12 W Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Contact material: AgNi Maximum switching voltage: 250 V Minimum switching voltage: 5 V (at 10 mA) Limiting continuous current: 8 A Maximum inrush current: 15 A (300Ãms) Min. switching current: 10 mA (At 5 V) Interrupting rating (ohmic load) max.: 190 W (at 24 V DC) 85 W (at 48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 60 W (at 220 V DC) 2000 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 2 A (at 24 V, AC15) 2 A (at 120 V, AC15) 2 A (at 250 V, AC15)
Connection data	Connection method: Plug / solder connection

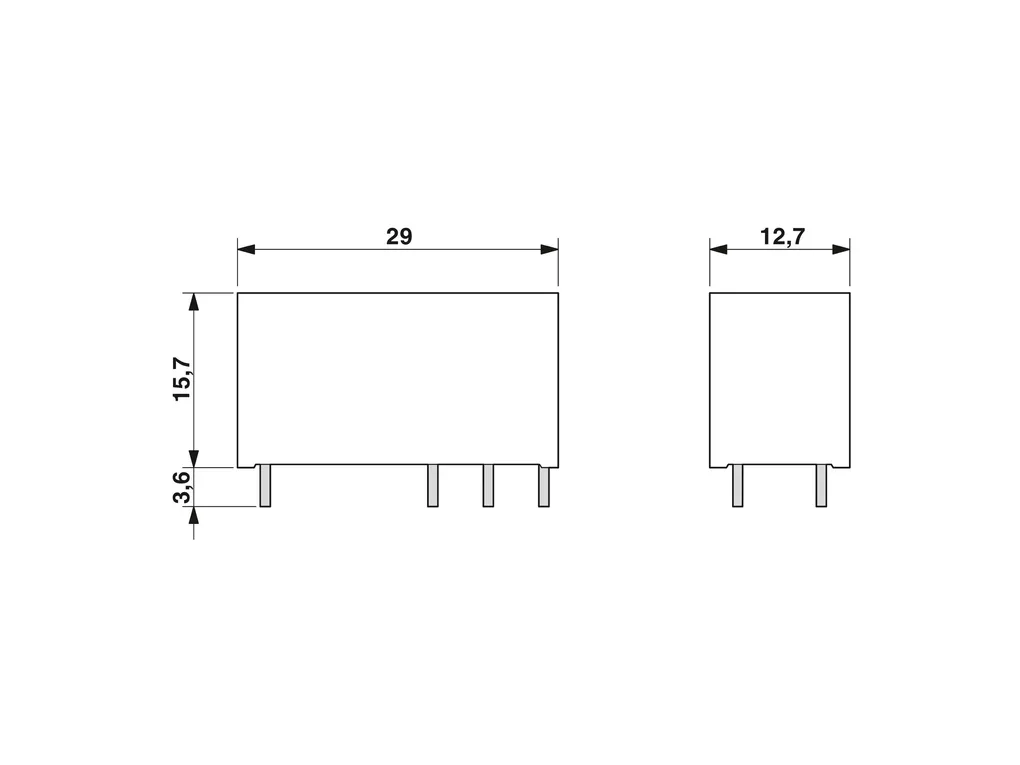

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3910bc75f47a504ca09d3a5c5f3e7f0f/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 15.7 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: RT III Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations: IEC 60664 ENÃ50178 ENÃ61810-1
Mounting	Assembly instructions: Can be aligned without spacing (> 70°C Ã¢Ã¢°¥ 2.5 mm) Mounting position: any
