| Product properties | Product type: Single relay Operating mode: 100% operating factor Mechanical service life: 1x 107 cycles Insulation characteristics Overvoltage category: III Pollution degree: 3 |
| Electrical properties | Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.77 W Test voltage (Winding/contact): 5 kV AC (50ÃHz, 1Ãmin., winding/contact) |
| Input data | Coil side Nominal input voltage UN: 24 VÃAC Input voltage range: 18.72 VÃAC ... 37.2 VÃAC Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): non-polarized Typical input current at UN: 32 mA (at 50 Hz) 24 mA (At 60 Hz) Typical response time: 3 ms ... 12 ms (depending on phase relation) Typical release time range: 2 ms ... 9 ms (depending on phase relation) Coil resistance: 350 é ñ10Ã% (at 20ðC) |
| Output data | Switching Contact switching type: 1Ãchangeover contact Type of switch contact: Single contact Contact material: AgNi, hard gold-plated Maximum switching voltage: 30 VÃAC 36 VÃDC Minimum switching voltage: 100 mV (at 10 mA) Limiting continuous current: 50 mA Maximum inrush current: 50 mA Min. switching current: 1 mA (at 24ÃV) Interrupting rating (ohmic load) max.: 1.2 W (at 24 V DC) Switching capacity: 2 A (at 24 V, AC15) Switching: when the gold layer is destroyed Note: the following values are applicable if a gold layer is destroyed Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (at 10 mA) Limiting continuous current: 16 A Maximum inrush current: 50 A (20Ãms) Min. switching current: 10 mA (at 12 V) Interrupting rating (ohmic load) max.: 384 W (at 24 V DC) 58 W (at 48 V DC) 48 W (at 60 V DC) 50 W (at 110 V DC) 80 W (at 220 V DC) 4000 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 0.2 A (at 110 V, DC13) 0.2 A (at 250 V, DC13) 2 A (at 24 V, AC15) 2 A (at 120 V, AC15) 2 A (at 250 V, AC15) |
| Connection data | Connection method: Plug / solder connection |

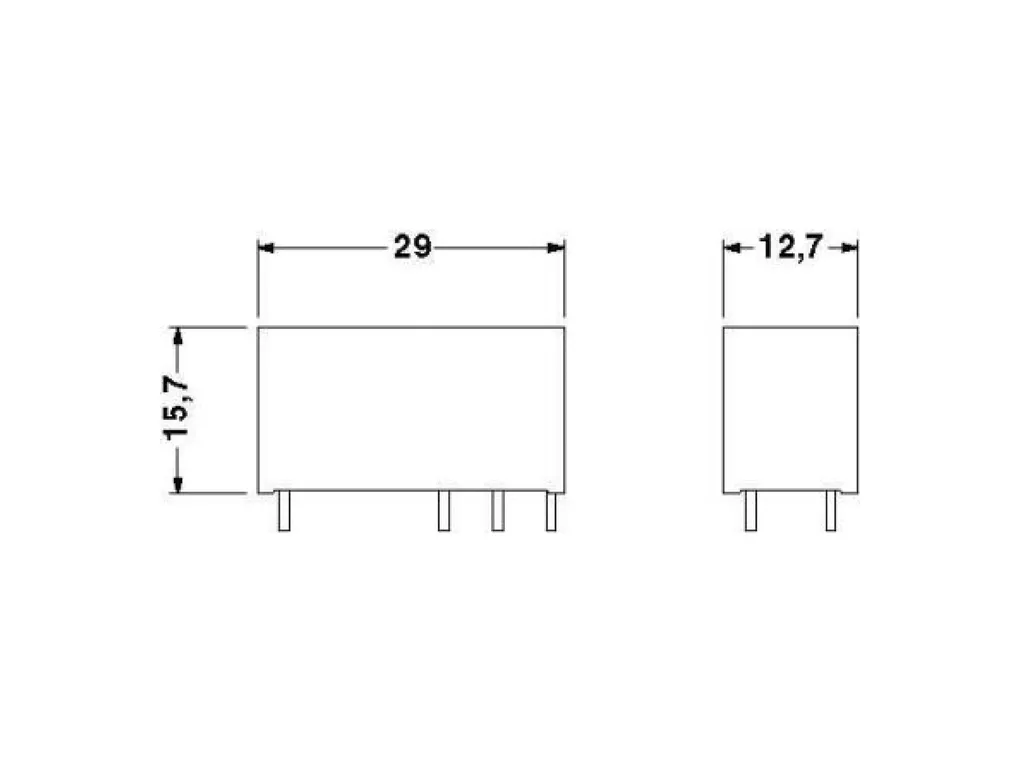

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/37788bd461ae68468735a1e1d50e814b/-S204x204-FJPG Width: 12.7 mm Height: 29 mm Depth: 15.7 mm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| Standards and regulations | Standards/regulations: IEC 60664 ENÃ50178 ENÃ61810-1 |
| Mounting | Assembly instructions: Can be aligned without spacing (> 70°C ââ°¥ 2.5 mm) Mounting position: any |
