2967073 PHOENIX CONTACT -

PLC-RSC- 24UC/21-21 - Relay Module

PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V AC/DC

Cod. Articolo: 2967073 copia - copy

Cod. Fornitore: 2967073 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: PLC-INTERFACE Application: Universal Operating mode: 100% operating factor Mechanical service life: 3x 10⁷ cycles Insulation characteristics Insulation: Safe isolation: Control side / contact side Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Safe isolation: Control side / contact side Overvoltage category: III Pollution degree: 3
Electrical properties	Maximum power dissipation for nominal condition: 0.42 W Test voltage (Winding/contact): 4 kV AC (50ÃHz, 1Ãmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kV AC (50ÃHz, 1Ãmin., changeover contact/changeover contact) Rated surge voltage: 6 kV

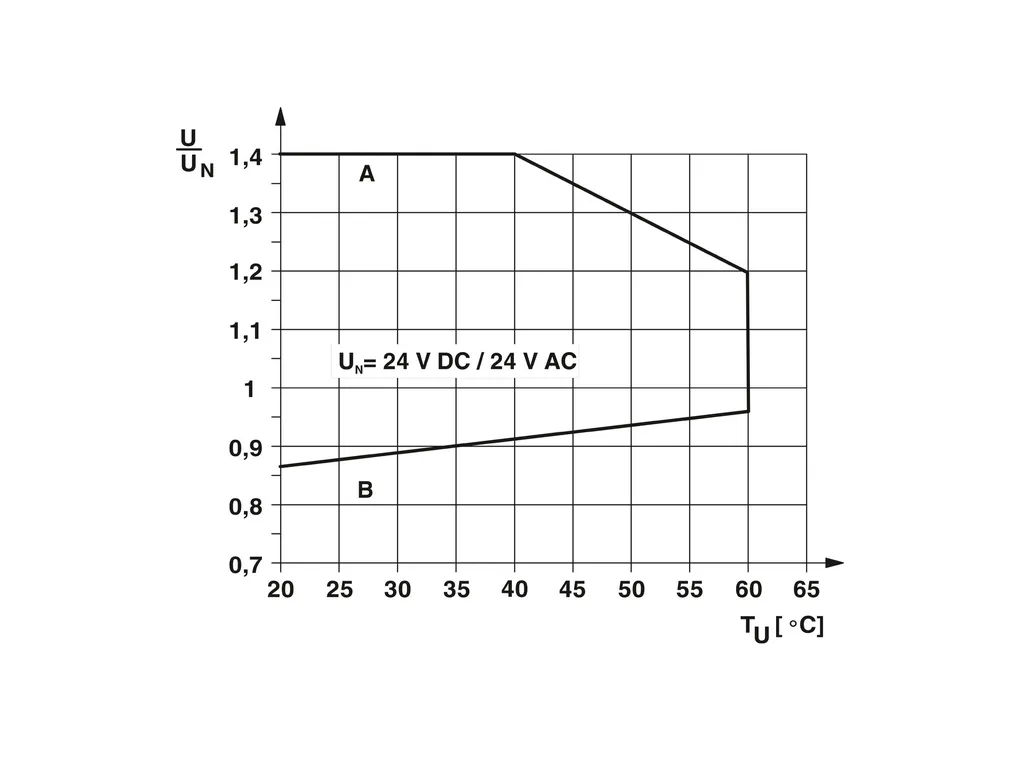

Input data	Coil side Nominal input voltage U_N: 24 V AC/DC Input voltage range: 20.6 V AC/DC ... 33.6 V AC/DC (20Ã°C) Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 17.5 mA (at U_N = 24 V AC) 17.5 mA (at U_N = 24 V DC) Typical response time: 8 ms Typical release time: 10 ms Protective circuit: Bridge rectifier; Bridge rectifier Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) Minimum switching voltage: 5 V AC/DC (10ÃmA) Limiting continuous current: 6 A Maximum inrush current: 15 A (300Ãms) Min. switching current: 10 mA (5ÃV) Interrupting rating (ohmic load) max.: 140 W (at 24 V DC) 85 W (at 48 V DC) 60 W (at 60 V DC) 44 W (at 110 V DC) 60 W (at 220 V DC) 1500 VA (for 250 V AC) Switching capacity: 2 A (at 24 V, DC13) 3 A (at 24 V, AC15) 3 A (at 120 V, AC15) 0.2 A (at 250 V, DC13) 3 A (at 250 V, AC15)
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm
Dimensions	Width: 14 mm Height: 80 mm Depth: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay): RT III (Relay) Degree of protection (Relay base): IP20 (Relay base) Ambient temperature (operation): -40°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Standards and regulations	Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
