| Product properties | Product type: Solid-state relay module Product family: PLC-INTERFACE Application: NAMUR proximity sensors Operating mode: 100% operating factor Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances Insulation: Basic insulation Overvoltage category: I Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.34 W Air clearances and creepage distances Rated insulation voltage: 50 VÃDC Rated surge voltage: 0.4 kV |

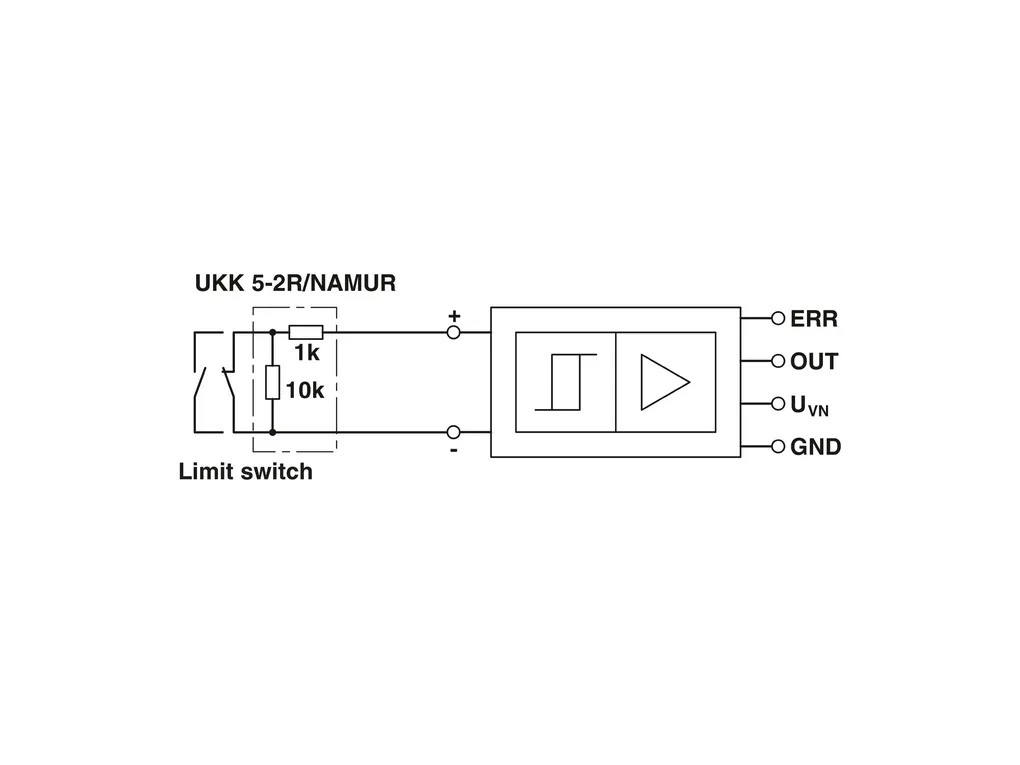

| Input data | Control circuit Nominal input voltage UN: 8.2 VÃDC ñ10Ã% Protective circuit: Surge protection; Suppressor diode Non-load voltage: 8.2 VÃDC ñ10Ã% Switching point: ââ°¥ 2.1 mA (In conductive state) ââ°¤ 1.2 mA (In blocking state) 6.3 mA ... 10 mA (in the event of a short-circuit) 0 mA ... 0.35 mA (In the event of a wire break) Switching hysteresis: approx. 0.2 mA Internal resistance: approx. 1 ké Cable length: < 30 m |
| Output data | Designation: Signal output Alarm output Contact switching type: 1 N/O contact Design of digital output: electronic Output nominal voltage: ââ°¤ 100 mV (In conductive state) UVN - UR; in blocking state UVN - URes Limiting continuous current: 50 mA Transmission frequency: approx. 350 Hz Voltage drop at max. limiting continuous current: ââ°¤ 1.5 V (UR) ââ°¤ 2 V (URest) Status display: Green LED Error indication: Red LED Protective circuit: Surge protection; Suppressor diode |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 86 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 50°C Ambient temperature (storage/transport): -40°C ... 85°C |
| Approvals | CE Certificate: CE-compliant Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| EMC data | Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Air clearances and creepage distances Standards/regulations: IEC 60947-5-1 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
