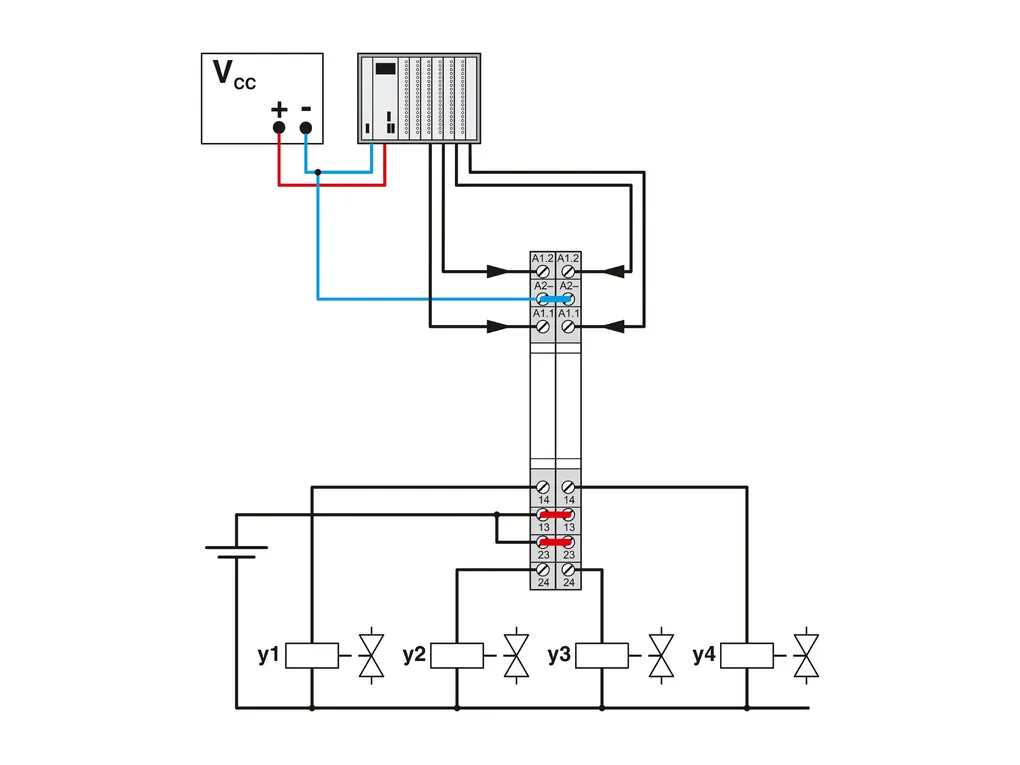

| Product properties | Product type: Relay Module Product family: PLC-INTERFACE Application: two integrated relays Operating mode: 100% operating factor Mechanical service life: 2x 107 cycles Insulation characteristics Insulation: Basic insulation Insulation characteristics: Air clearances and creepage distances between the power circuits Insulation: Basic insulation Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.17 W Test voltage (Winding/contact): 3 kV AC (50ÃHz, 1Ãmin., winding/contact) Test voltage (Contact/contact): 3 kV AC (50ÃHz, 1Ãmin., contact/contact) Air clearances and creepage distances between the power circuits Rated insulation voltage: 250 VÃAC Rated surge voltage: 4 kV |
| Input data | Coil side Nominal input voltage UN: 24 VÃDC Input voltage range: 18 VÃDC ... 33.6 VÃDC (20ðC) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 7 mA Typical response time: 4 ms Typical release time: 6 ms Protective circuit: Reverse polarity protection; Polarity protection diode Freewheeling diode; Freewheeling diode Operating voltage display: Yellow LED |
| Output data | Switching Contact switching type: 2 N/O contacts Type of switch contact: Single contact Note regarding the switch contact: two integrated relays Contact material: AgNi Maximum switching voltage: 250 VÃAC 30 VÃDC Minimum switching voltage: 24 V AC/DC Limiting continuous current: 3.5 A Maximum inrush current: 5 A Min. switching current: 5 mA Interrupting rating (ohmic load) max.: 84 W (at 24 V DC) 24 W (at 48 V DC) 24 W (at 60 V DC) 31 W (at 110 V DC) 46 W (at 220 V DC) 875 VA (for 250 V AC) |
| Connection data | Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.45 Nm ... 0.55 Nm (Usually these terminal blocks must be supported during conductor connection (held by one hand, supported on the housing)) |
| Dimensions | Width: 6.2 mm Height: 80 mm Depth: 86 mm |
| Material specifications | Flammability rating according to UL 94: V0 (Housing) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Ambient temperature (operation): -20°C ... 60°C Ambient temperature (storage/transport): -20°C ... 60°C |
| Approvals | CE Certificate: CE-compliant Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 |
| EMC data | Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive |
| Standards and regulations | Air clearances and creepage distances between the power circuits Standards/regulations: IEC 60664 ENÃ50178 |
| Mounting | Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any |
