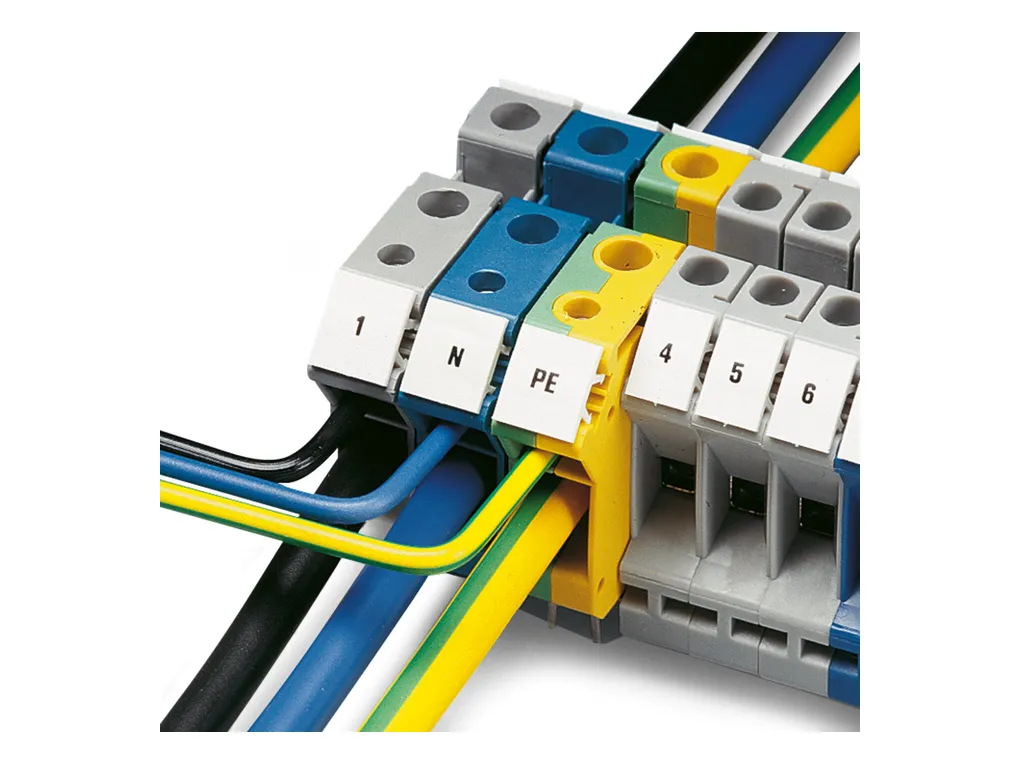

| Product properties | Product type: Ground terminal block Number of connections: 3 Number of rows: 2 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.82 W |
| Connection data | Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 10 mm² 1 level Screw thread: M4 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 1.5 ... 1.8 Nm Stripping length: 11 mm Connection in acc. with standard: IEC 60947-7-2 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 6 mm² Nominal cross section: 10 mm² 1st level connection right Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 7 mm Connection in acc. with standard: IEC 60947-7-2 Conductor cross section rigid: 0.2 mm² ... 6 mm² Cross section AWG: 24 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 4 mm² Nominal cross section: 4 mm² |
| Dimensions | Width: 10.2 mm Height: 53 mm Depth on NSÃ32: 52 mm Depth on NSÃ35/7,5: 47 mm Depth on NSÃ35/15: 54.5 mm |
| Material specifications | Color: green-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | General Terminal block mounting: 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-2 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 NSÃ32 Terminal block mounting: 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
