3002368 PHOENIX CONTACT -

PT 2X10/9X4 BU - Potential collective terminal

Potential collective terminal, nom. voltage: 1000 V, nominal current: 57 A, Line contact, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², Load contact, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting: NS 35/7,5, color: blue

Cod. Articolo: 3002368 copia - copy

Cod. Fornitore: 3002368 copia - copy

PHOENIX CONTACT

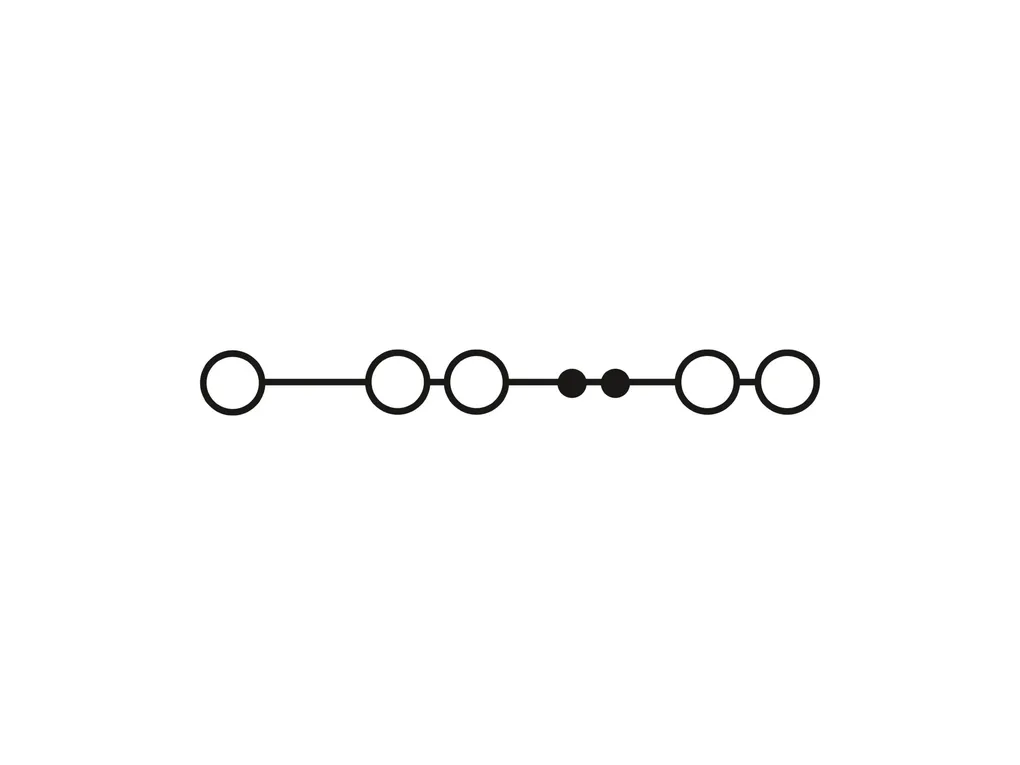

Product properties	Product type: Potential distributor Number of connections: 11 Number of rows: 1 Potentials: 1 Data management status Article revision: 01 Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.02 W
Connection data	Number of connections per level: 11 Nominal cross section: 4 mm² Line contact Stripping length: 20 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm² Nominal current: 57 A Maximum load current: 101 A (with 2x10 mm² conductor cross section) Nominal voltage: 1000 V Nominal cross section: 10 mm² Load contact Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 6 mm² Cross section AWG: 20 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 20 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 4 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1 mm² Nominal current: 32 A Maximum load current: 36 A (with 6 mm² conductor cross section) Nominal voltage: 1000 V Nominal cross section: 4 mm² Line contact Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 16 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm² Load contact Connection cross sections directly pluggable Conductor cross section rigid: 0.5 mm² ... 6 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 4 mm²
Dimensions	Width: 18.5 mm Height: 83.2 mm Depth: 42.4 mm Depth on NS 35/7,5: 47.9 mm
Material specifications	Color: blue (RAL 5015) Flammability rating according to UL 94: PA 6.6 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-1
Mounting	Mounting type: NS 35/7,5
