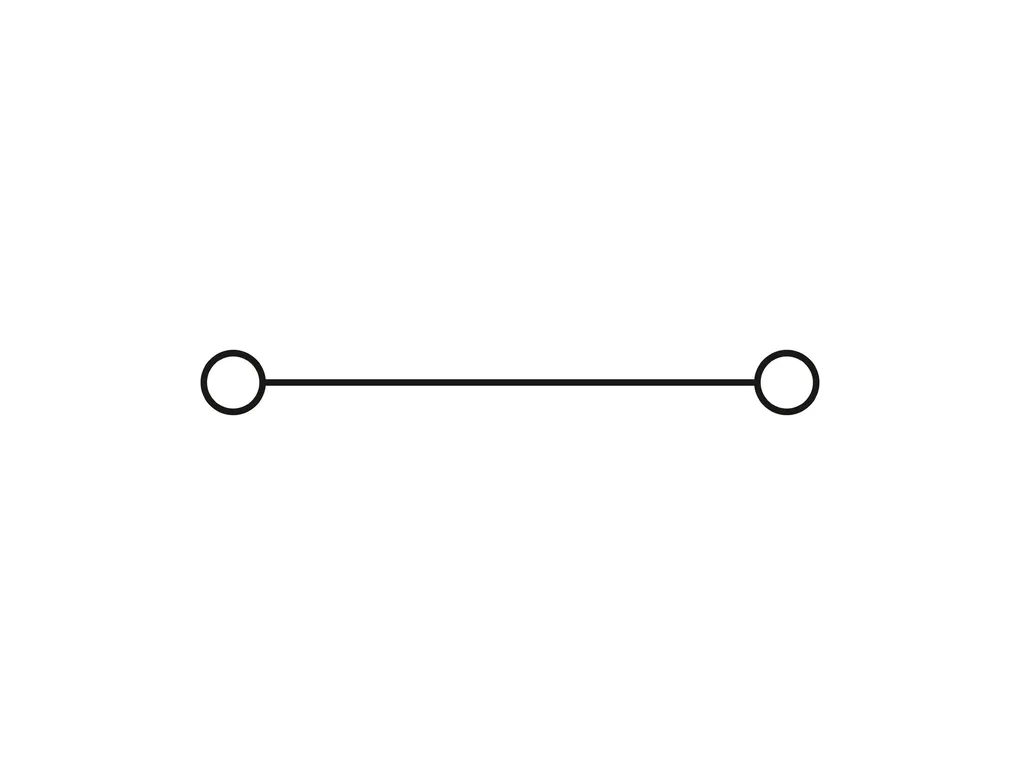

| Notes | General: Can only be used in conjunction with UKHÃ150/240 |
| Product properties | Product type: Pick-off terminal Number of connections: 1 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.82 W |
| Connection data | Number of connections per level: 1 Nominal cross section: 10 mm² Tightening torque: 1.5 ... 1.8 Nm Stripping length: 10 mm Internal cylindrical gage: B6 Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 10 mm² Cross section AWG: 20 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 6 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 4 mm² 2 conductors with same cross section, flexible: 0.5 mm² ... 4 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.5 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 6 mm² Nominal current: 57 A Maximum load current: 76 A (with 10 mm² conductor cross section) Nominal voltage: 1000 V |
| Ex data | Rated data (ATEX/IECEx) Identification: ïÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1212589 SF-SL 1,0X5,5-125 S-VDE Ex temperature increase: 40 K (62.7 A / 10 mm²) Rated voltage: 1100 V Rated insulation voltage: 1000 V output: (Permanent) Ex level General Rated current: 57 A Maximum load current: 57 A Contact resistance: 0.7 mé Ex connection data General Torque range: 1.5 Nm ... 1.8 Nm Nominal cross section: 10 mm² Rated cross section AWG: 8 Connection capacity rigid: 0.5 mm² ... 10 mm² Connection capacity AWG: 20 ... 8 Connection capacity flexible: 0.5 mm² ... 10 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 6 mm² 2 conductors with the same cross-section AWG rigid: 20 ... 10 2 conductors with same cross section, stranded: 0.5 mm² ... 6 mm² 2 conductors with the same cross-section AWG flexible: 20 ... 10 |
| Dimensions | Width: 10.2 mm Height: 20.7 mm Depth: 34.7 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: on base element |
