UK 10 N-PE/N - Installation ground terminal block

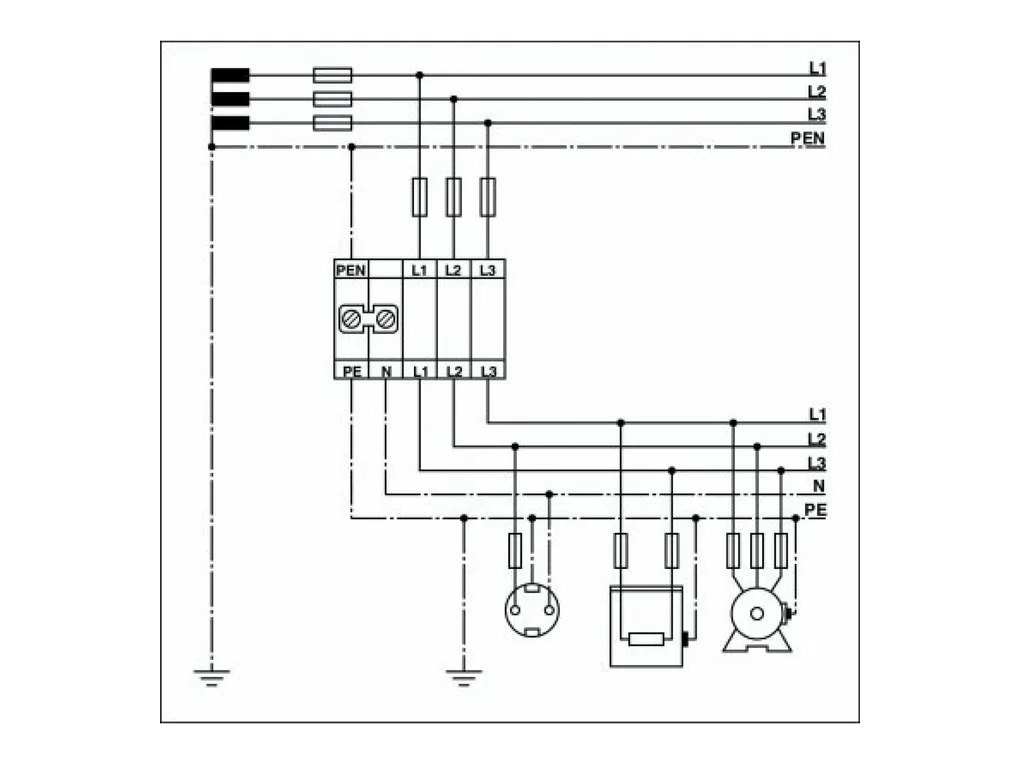

Installation ground terminal block, PE/N block, consisting of a green-yellow ground terminal and a blue terminal block with screw bridge, nom. voltage: 250 V, nominal current: 76 A, number of connections: 2, connection method: Screw connection, cross section: 0.5 mm²-16 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: green-yellow-blue

Cod. Articolo: 3024740 copia - copy

Cod. Fornitore: 3024740 copia - copy

PHOENIX CONTACT

Product properties	Product type: Ground terminal block Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 0 W
Connection data	PEN function: yes Grounding foot: Yes Number of connections per level: 2 Level 1 above 1 below 1 Screw thread: M4 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 1.5 ... 1.8 Nm Stripping length: 10 mm Internal cylindrical gage: B6 Connection in acc. with standard: IEC / EN Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 6 mm² Cross-section with insertion bridge, rigid: 10 mm² Cross-section with insertion bridge, flexible: 10 mm² Nominal current: 76 A Maximum load current: 76 A (with 16 mm² conductor cross section) Nominal voltage: 250 V
Dimensions	Width: 20.4 mm Height: 42.5 mm Depth on NSÃ32: 52.3 mm Depth on NSÃ35/7,5: 47.3 mm Depth on NSÃ35/15: 54.8 mm
Material specifications	Color: green-yellow-blue Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	General Terminal block mounting: 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC / EN
Mounting	Mounting type: NS 35/7,5 NSÃ35/15 NSÃ32 Terminal block mounting: 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4)
