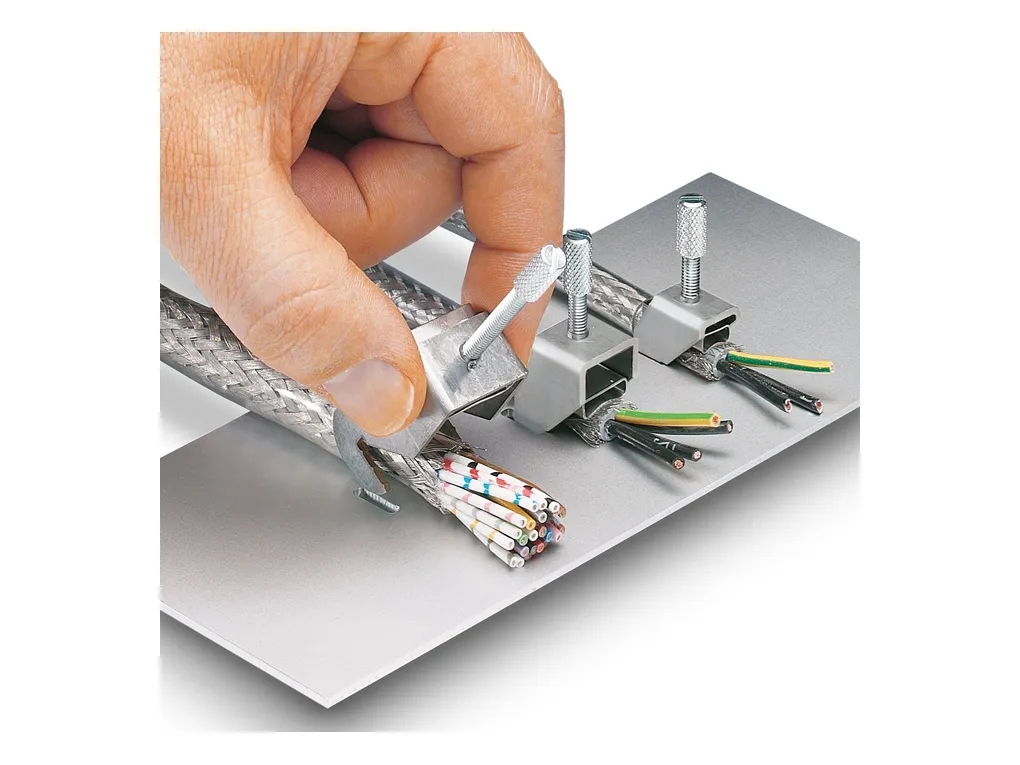

| Product properties | Product type: Shield connection clamp Pitch: 40 mm Number of connections: 1 Number of rows: 1 |
| Electrical properties | Maximum power dissipation for nominal condition: 0.77 W Contact resistance: < 0.001 é |
| Connection data | Grounding foot: Yes Screw thread: M5 Tightening torque: 1.5 ... 1.8 Nm Connection in acc. with standard: IEC / EN |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/620a38415dd16b45974571da7c62a380/-S204x204-FJPG Width: 40 mm Height: 20 mm Depth: 105 mm Pitch: 40 mm External dimensions Outside diameter: 20 mm ... 35 mm |
| Material specifications | Color: silver Material: Steel |
| Cable/line | External cable diameter: 20 mm ... 35 mm |
| Mechanical properties | Mechanical data Open side panel: No |
| Standards and regulations | Connection in acc. with standard: IEC / EN |
| Mounting | Mounting type: direct screw connection |
