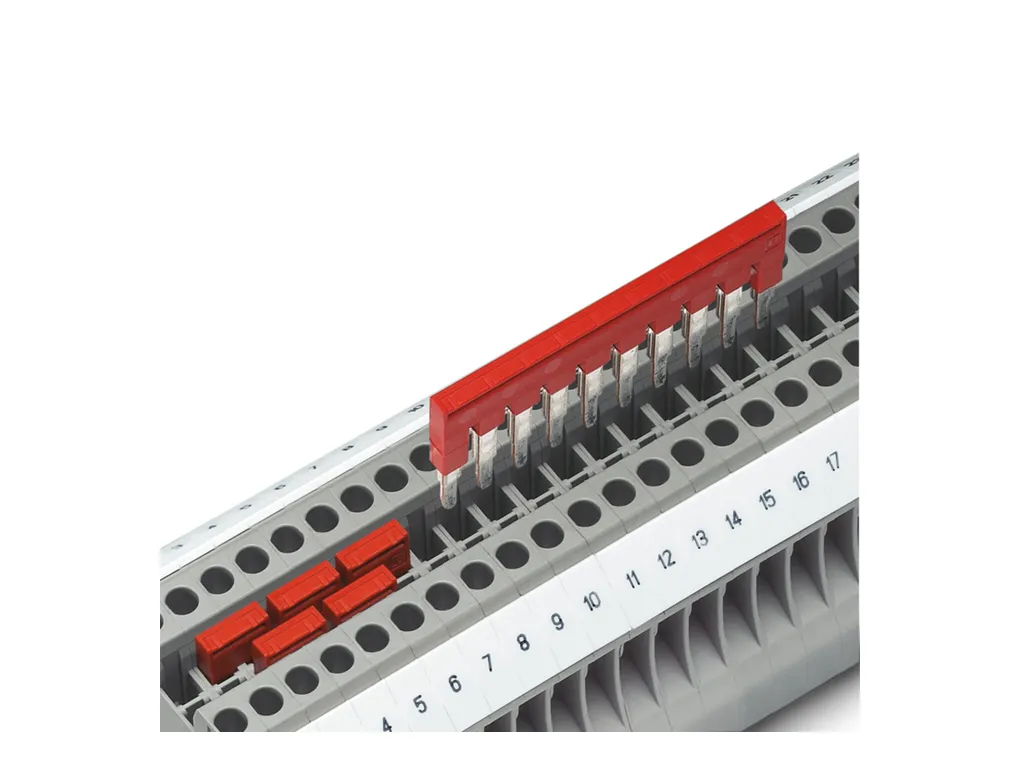

| Product properties | Product type: Jumper Number of positions: 10 Pitch: 8.2 mm |
| Electrical properties | Maximum load current: 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Connection data | Maximum load current: 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Dimensions | Width: 80.3 mm Height: 29.6 mm Depth: 29.6 mm Pitch: 8.2 mm |
| Material specifications | Color: red Material: Copper Flammability rating according to UL 94: V0 Insulating material: PA |
| Mechanical properties | Technical data Pin assignment: 1, 4, 7, 10 |
| Mounting | Mounting type: Plug-in mounting |
