| Notes | General: Touch proof against unintentional direct contact according to DIN EN 50274 when plugged in Do not plug in while the power is connected Latching testing accessories, therefore only suitable for being plugged in once |

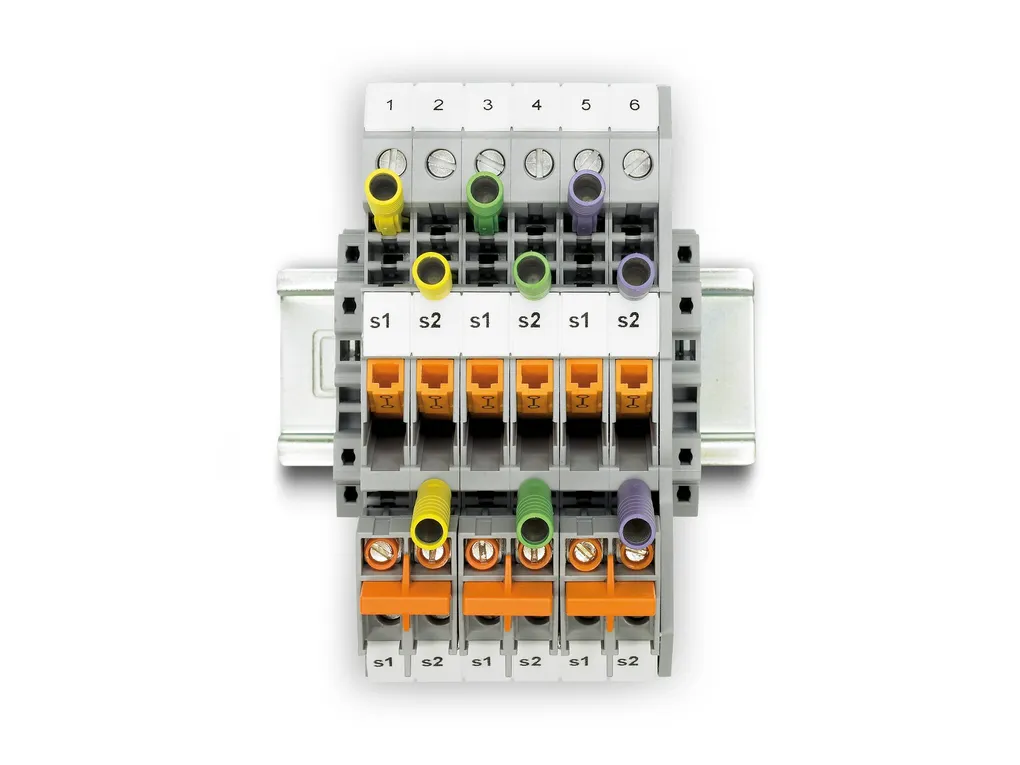

| Product properties | Product type: Test socket Number of positions: 1 |
| Electrical properties | Maximum load current: 10 A Max. voltage: 250 V |
| Connection data | Maximum load current: 10 A |
| Dimensions | Width: 5.8 mm Height: 5.8 mm Depth: 51.5 mm Diameter: 5.8 mm Pin diameter: 2.4 mm |
| Material specifications | Color: violet Material: PA Flammability rating according to UL 94: V0 Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: 1 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Mounting | Connection method: Plug-in connection |
