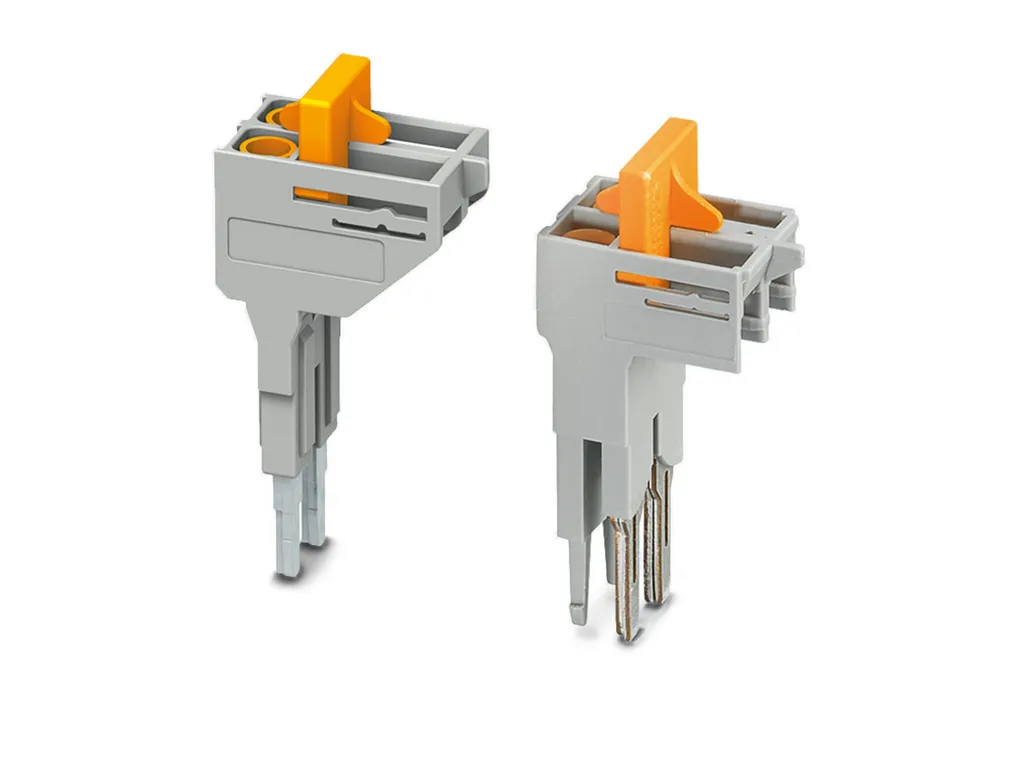

| Product properties | Product type: Switching jumper Number of positions: 2 Pitch: 6.2 mm Potentials: 1 |
| Electrical properties | Maximum load current: 25 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Connection data | Maximum load current: 25 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
| Dimensions | Width: 12.3 mm Height: 21.2 mm Depth: 36.4 mm Length: 21.2 mm Pitch: 6.2 mm |
| Material specifications | Color: gray/orange Material: Copper Flammability rating according to UL 94: V0 Insulating material: PA |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Mounting | Mounting type: Plug-in mounting |
