3048195 PHOENIX CONTACT -

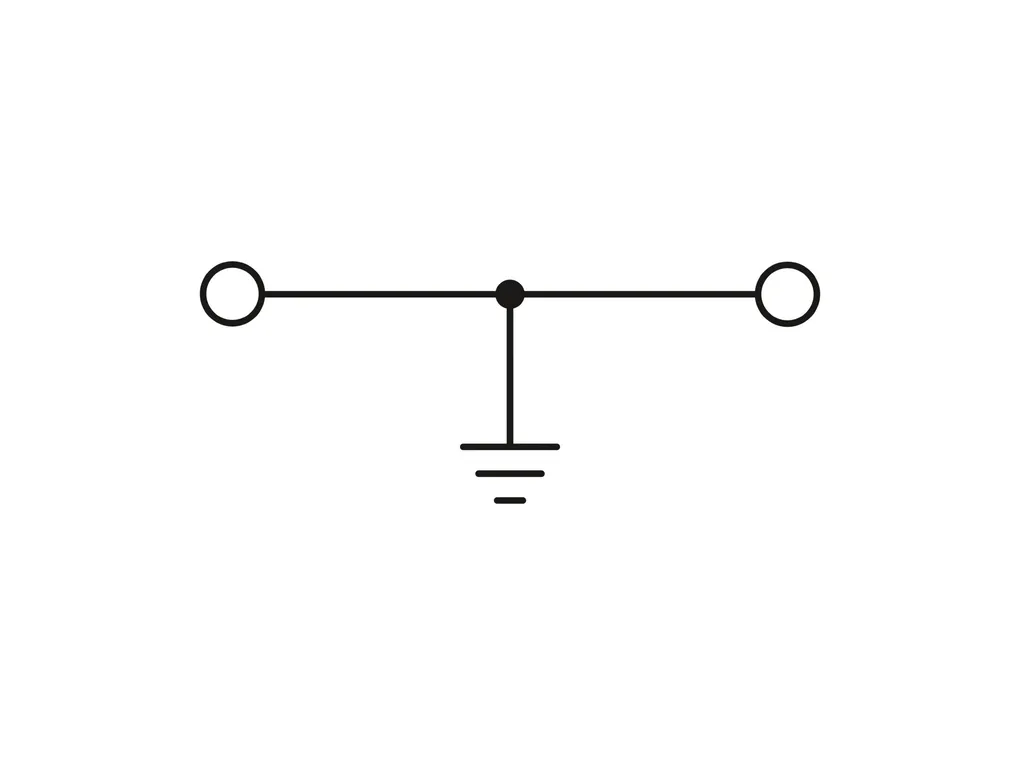

USLKG 95 B - Ground terminal

Ground terminal, Screws with hexagonal socket, with opening for bridging, without mounting screw, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 95 mm², cross section: 25 mm² - 95 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow

Cod. Articolo: 3048195 copia - copy

Cod. Fornitore: 3048195 copia - copy

PHOENIX CONTACT

Notes	General: Screws with hexagonal socket
Product properties	Product type: Ground terminal block Number of positions: 1 Number of connections: 2 Number of rows: 1 Data management status Article revision: 06 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W
Connection data	Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 95 mm² Level 1 above 1 below 1 Screw thread: M8 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 15 ... 20 Nm Stripping length: 30 mm Connection in acc. with standard: IEC 60947-7-2 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 25 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 2 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 35 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 35 mm² ... 95 mm² Nominal cross section: 95 mm²
Dimensions	Width: 25 mm Height: 83 mm Depth on NS 32: 95.3 mm Depth on NS 35/7,5: 90.3 mm Depth on NS 35/15: 97.8 mm
Material specifications	Color: green-yellow Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60947-7-2
Mounting	Mounting type: NS 35/7,5 NS 35/15 NS 32
