| Notes | General Note: The rated insulation voltage applies to insulated cable lugs acc. DIN 46237:1970-07 and for uninsulated cable lugs acc. DIN 46234:1980-03 with shrink sleeve. |

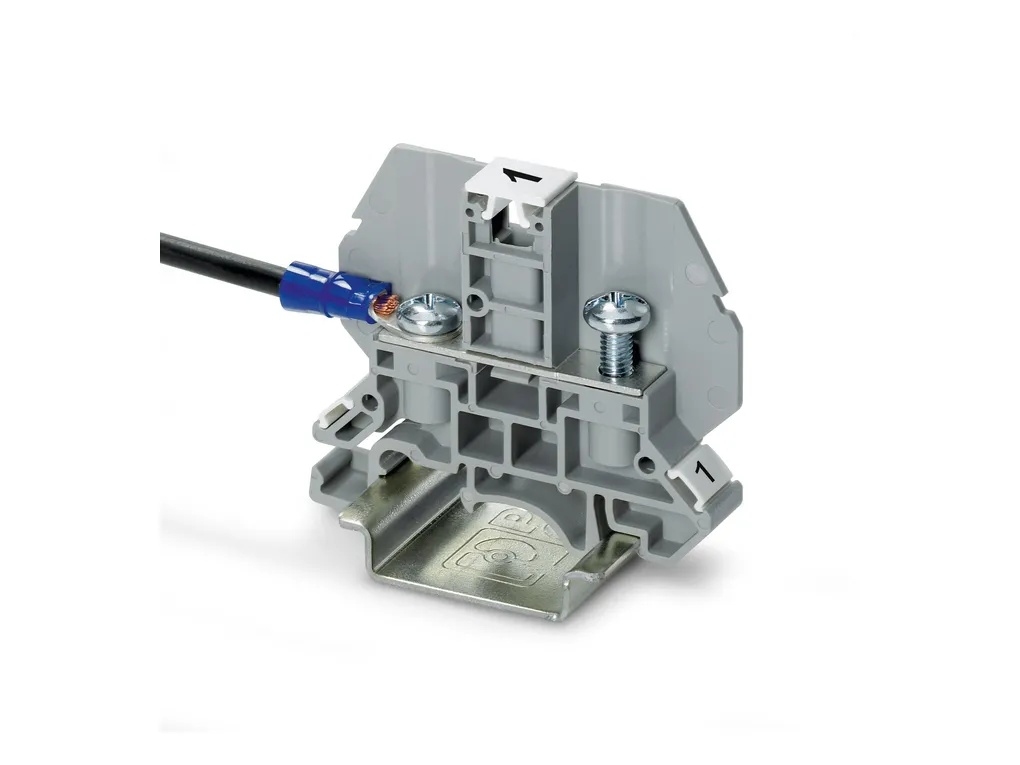

| Product properties | Product type: Bolt connection terminal block Pitch: 9 mm Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 1.02 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 4 mm² Stripping length: The stripping length depends on the specification provided by the cable lug manufacturer. Connection in acc. with standard: IEC 60947-7-1 Nominal current: 32 A Maximum load current: 32 A Nominal voltage: 800 V Cable lug connection DINÃ46234:1980-03 Connection in acc. with standard: DINÃ46234:1980-03 DINÃ46237:1970-07 Cross section: 0.1 mm² ... 6 mm² 0.5 mm² ... 2.5 mm² Cross section range AWG: 26 ... 10 (converted acc. to IEC) Hole diameter: 4.3 mm Width: 8 mm Bolt diameter: 4 mm Screw thread: M4 Tightening torque: 1.2 ... 1.4 Nm Identification color of ring cable lugs : red: 1 mm² Identification color of ring cable lugs : blue: 2.5 mm² |
| Dimensions | Width: 9 mm End cover width: 2.2 mm Height: 53.3 mm Depth on NSÃ32: 52.1 mm Depth on NSÃ35/7,5: 47.1 mm Depth on NSÃ35/15: 54.6 mm Pitch: 9 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Electrical tests | Surge voltage test Test voltage setpoint: 9.8 kV Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature ââ°¤Ã45ÃK Result: Test passed Short-time withstand current 4 mm²: 0.48 kA Short-time withstand current 6 mm²: 0.72 kA Power-frequency withstand voltage Test voltage setpoint: 2 kV Result: Test passed |
| Mechanical properties | Mechanical data Open side panel: Yes |
| Mechanical tests | Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NSÃ32/NSÃ35 Test force setpoint: 1 N Result: Test passed |
| Environmental and real-life conditions | Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Spectrum: Service life test categoryÃ1, classÃB, body mounted Frequency: f1 = 5 Hz to f2 = 150 Hz ASD level: 0.2g²/Hz Acceleration: 0.8g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 |
