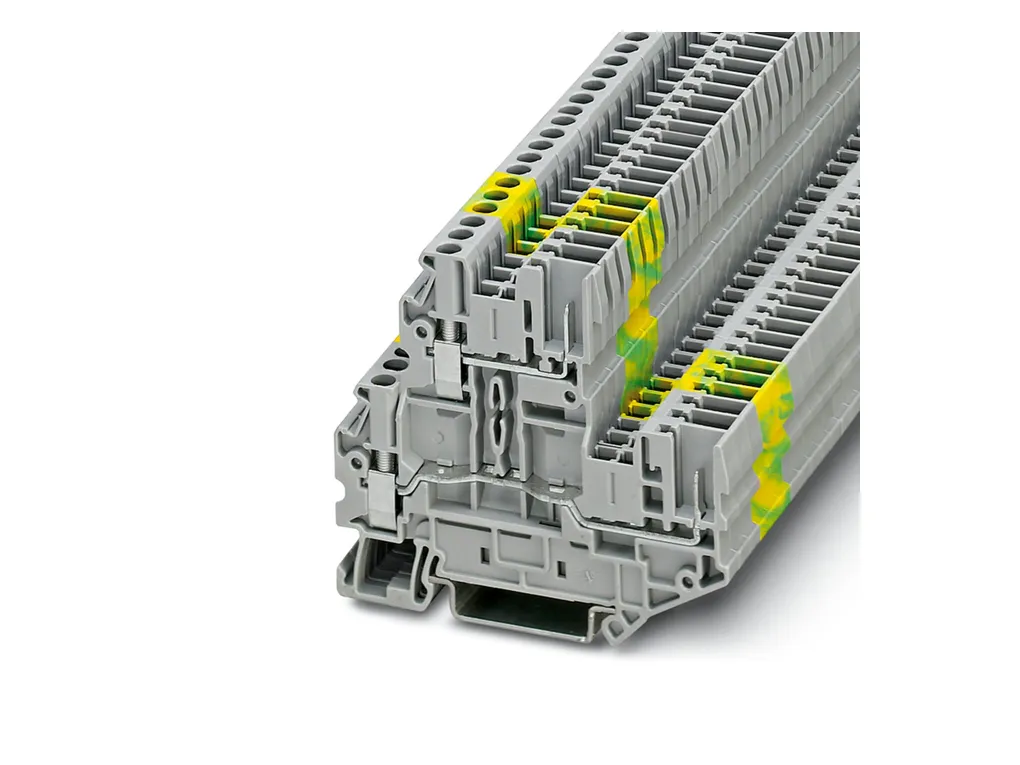

UTTB 2,5/2P-PE - Protective conductor double-level terminal block

Protective conductor double-level terminal block, Current and voltage are determined by the plug used., connection method: Screw/plug-in connection, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

Cod. Articolo: 3060380 copia - copy

Cod. Fornitore: 3060380 copia - copy

PHOENIX CONTACT

Notes	General: Current and voltage are determined by the plug used. GeneralÃ¢Ã¢¬Ã¢¹ Note: When establishing a connection on the open housing side of a feed-through modular terminal block of the same series and size, the block must be provided with a cover if the expected insulation voltage is >320 V.
Product properties	Product type: Ground terminal block Number of positions: 1 Number of connections: 4 Number of rows: 2 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated insulation voltage: 500 V Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 0.77 W
Connection data	Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 2.5 mm² Level 1+2 Screw thread: M3 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 0.5 ... 0.6 Nm Stripping length: 9 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 61984 Conductor cross section rigid: 0.14 mm² ... 4 mm² Cross section AWG: 26 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 26 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 2.5 mm² 2 conductors with same cross section, solid: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible: 0.14 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.14 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm²
Dimensions	Width: 5.2 mm End cover width: 2.2 mm Height: 69.9 mm Depth: 64.4 mm Depth on NSÃ35/7,5: 65 mm Depth on NSÃ35/15: 72.5 mm
Material specifications	Color: green-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2022-06 Spectrum: Service life test categoryÃ1, classÃB, body mounted Frequency: f₁ = 5 Hz to f₂ = 150 Hz ASD level: 0.964 (m/s²)²/Hz Acceleration: 0.58g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2022-06 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 61984
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
