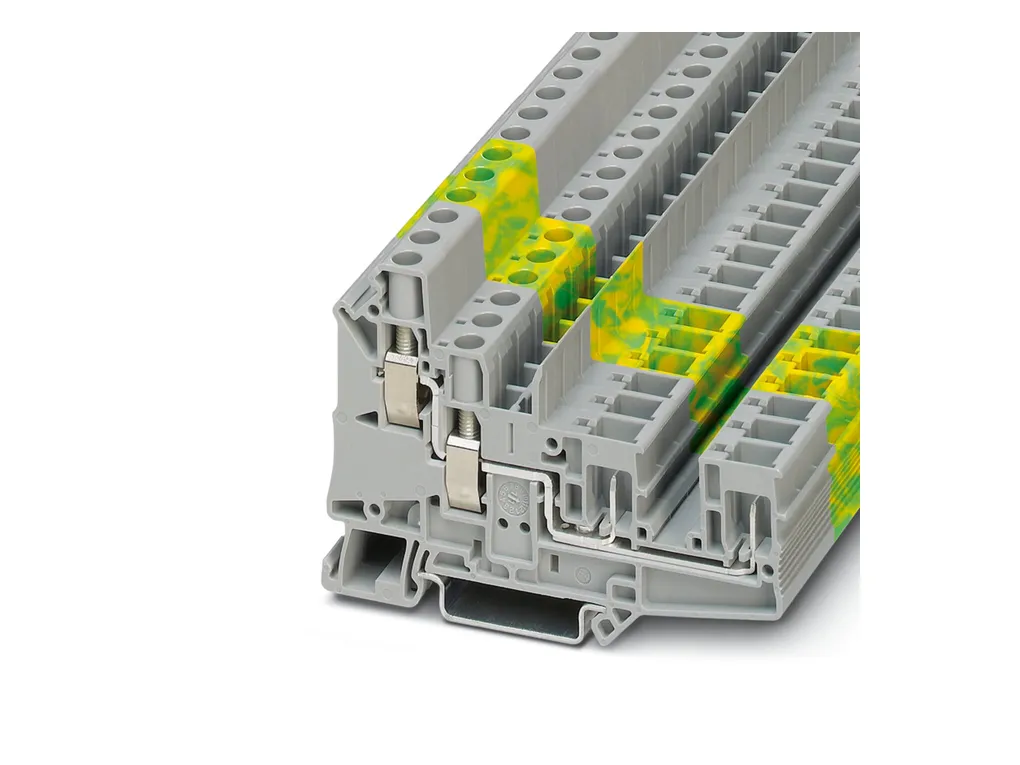

UT 6-QUATTRO/2P-PE - Ground terminal

Ground terminal, The max. load current must not be exceeded by the total current of all connected conductors.
Current and voltage are determined by the plug used., number of connections: 4, connection method: Screw/plug-in connection, cross section: 0.2 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

Cod. Articolo: 3060584 copia - copy

Cod. Fornitore: 3060584 copia - copy

PHOENIX CONTACT

Notes	General: The max. load current must not be exceeded by the total current of all connected conductors. Current and voltage are determined by the plug used. GeneralÃ¢Ã¢¬Ã¢¹ Note: The max. load current must not be exceeded by the total current of all connected conductors. With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces.
Product properties	Product type: Ground terminal block Number of connections: 4 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 1.31 W
Connection data	Grounding foot: Yes Number of connections per level: 4 Nominal cross section: 6 mm² Rated cross section AWG: 8 Level 1 above 1 below 1 Screw thread: M4 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 1.5 ... 1.8 Nm Stripping length: 10 mm Internal cylindrical gage: A5 Connection in acc. with standard: IEC 61984 Conductor cross section rigid: 0.2 mm² ... 10 mm² Cross section AWG: 24 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 24 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 6 mm²
Dimensions	Width: 8.2 mm End cover width: 2.2 mm Height: 86.5 mm Depth on NSÃ35/7,5: 60 mm Depth on NSÃ35/15: 67.5 mm
Material specifications	Color: green-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2022-06 Spectrum: Service life test categoryÃ1, classÃB, body mounted Frequency: f₁ = 5 Hz to f₂ = 150 Hz ASD level: 0.964 (m/s²)²/Hz Acceleration: 0.58g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2022-06 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 61984
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
