3061105 PHOENIX CONTACT -

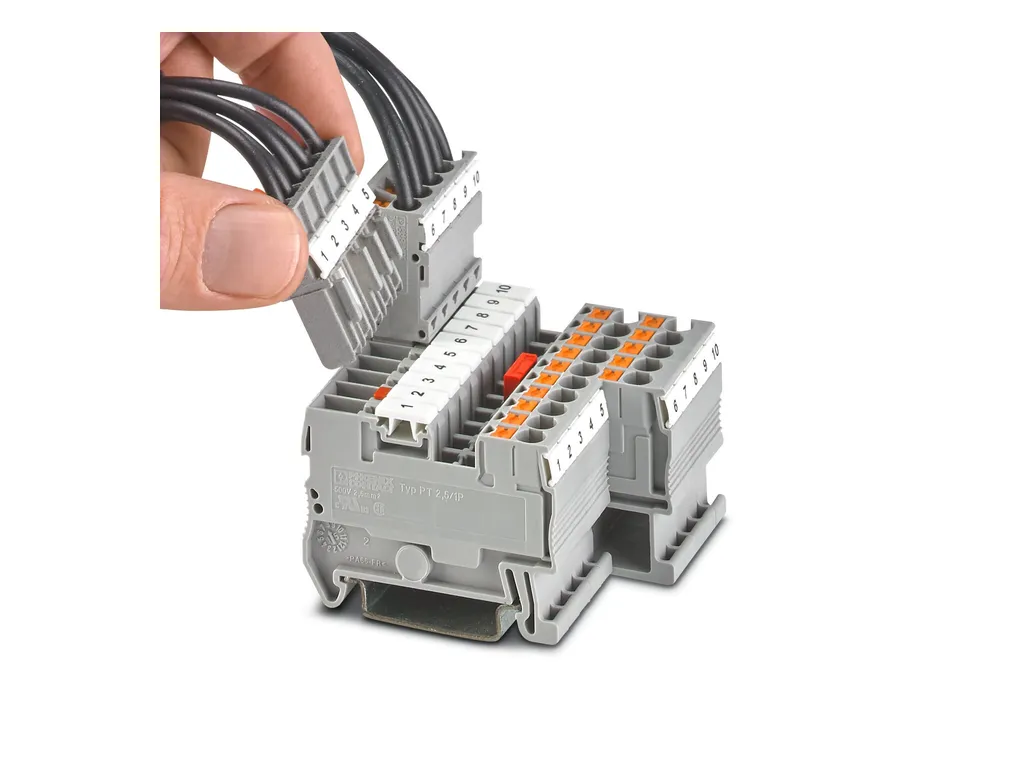

CP 2,5/5 - Connector housing

Connector housing, nom. voltage: 500 V, nominal current: 10 A, connection method: Crimp connection, width: 25.8 mm, height: 30.5 mm, number of positions: 5, color: gray

Cod. Articolo: 3061105 copia - copy

Cod. Fornitore: 3061105 copia - copy

PHOENIX CONTACT

Product properties	Product type: Plug Number of positions: 5 Insulation characteristics Overvoltage category: III Pollution degree: 3
Connection data	Nominal current: 10 A Maximum load current: 13.5 A Nominal voltage: 500 V Nominal cross section: 1.5 mm²
Dimensions	Width: 25.8 mm Height: 30.5 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: CTI 600 Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
