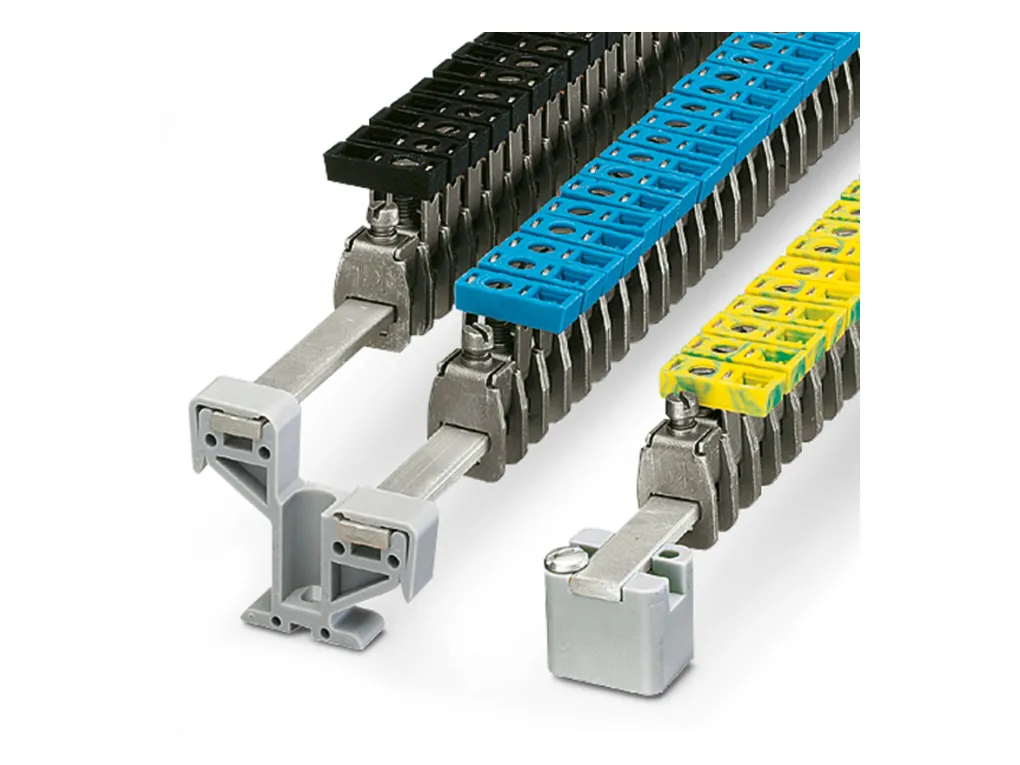

| Product properties | Product type: Installation terminal block Number of connections: 1 Number of rows: 1 |
| Electrical properties | Maximum load current: 41 A Maximum power dissipation for nominal condition: 1.02 W Nominal current IN: 32 A Current carrying capacity of the neutral busbar: 140 A |
| Connection data | Nominal cross section: 4 mm² Maximum load current: 41 A Level 1 above 1 below 1 Screw thread: M4 Tightening torque: 1.5 ... 1.8 Nm Stripping length: 16 mm Conductor cross section rigid: 0.5 mm² ... 6 mm² Cross section AWG: 20 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 20 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 6 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 2.5 mm² 2 conductors with same cross section, flexible: 0.5 mm² ... 2.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.5 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 2.5 mm² Nominal current: 41 A Maximum load current: 41 A (with 6 mm² conductor cross section) Nominal voltage: 300 V Nominal cross section: 4 mm² |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9741b853efa0d946847f03806a6a81a5/-S204x204-FJPG Width: 7 mm Height: 23.7 mm Depth: 23.6 mm Length: 23.7 mm |
| Material specifications | Color: red Flammability rating according to UL 94: V2 Insulating material: PA Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 125°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2 |
| Electrical tests | Temperature-rise test Requirement temperature-rise test: Increase in temperature ââ°¤Ã45ÃK Result: Test passed |
| Mounting | Mounting type: Neutral busbar |
