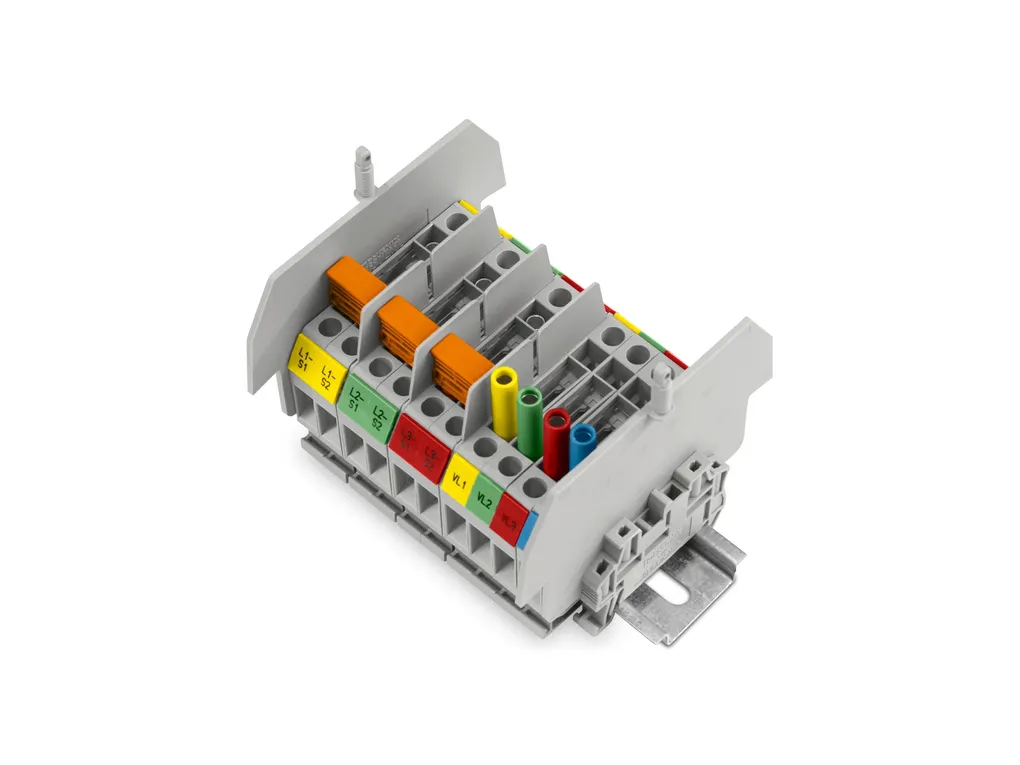

| Notes | Note on application: The SCP short-circuit plugs are designed for short-circuiting adjacent test-disconnect terminal blocks. They can be used as temporary current transformer short-circuiting options for maintenance and commissioning tasks on measuring and safety equipment in power generation systems. Connecting or disconnecting short-circuit plugs is only permitted while the power supply and all loads are disconnected. |
| Product properties | Product type: Short-circuit connector Number of positions: 4 Pitch: 8.15 mm Data management status Article revision: 01 |
| Electrical properties | Rated voltage: 60 V DC 30 V AC |
| Dimensions | Pin diameter: 4.00 mm Pitch: 8.15 mm |
| Material specifications | Color: orange (RAL 2003) Material: Copper Flammability rating according to UL 94: V0 Insulating material: PA |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60 °C ... 105 °C Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (storage/transport): 30 % ... 70 % |
| Mounting | Mounting type: Plug-in mounting |

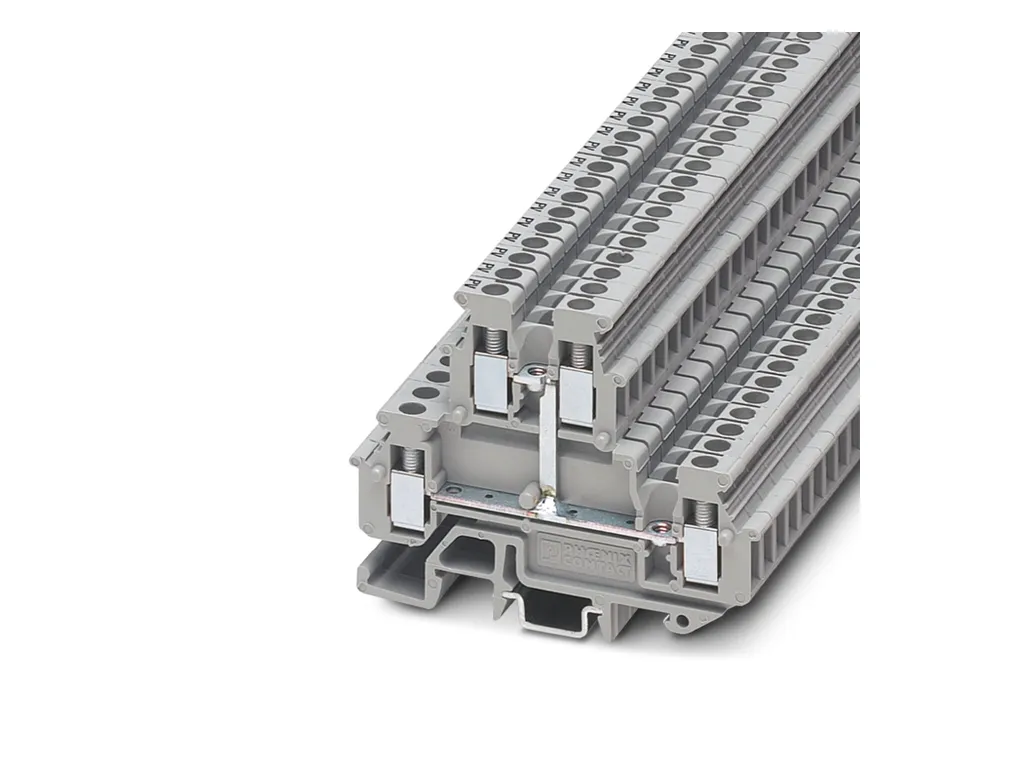

Di seguito alcuni articoli correlati a quello che stai vedendo
