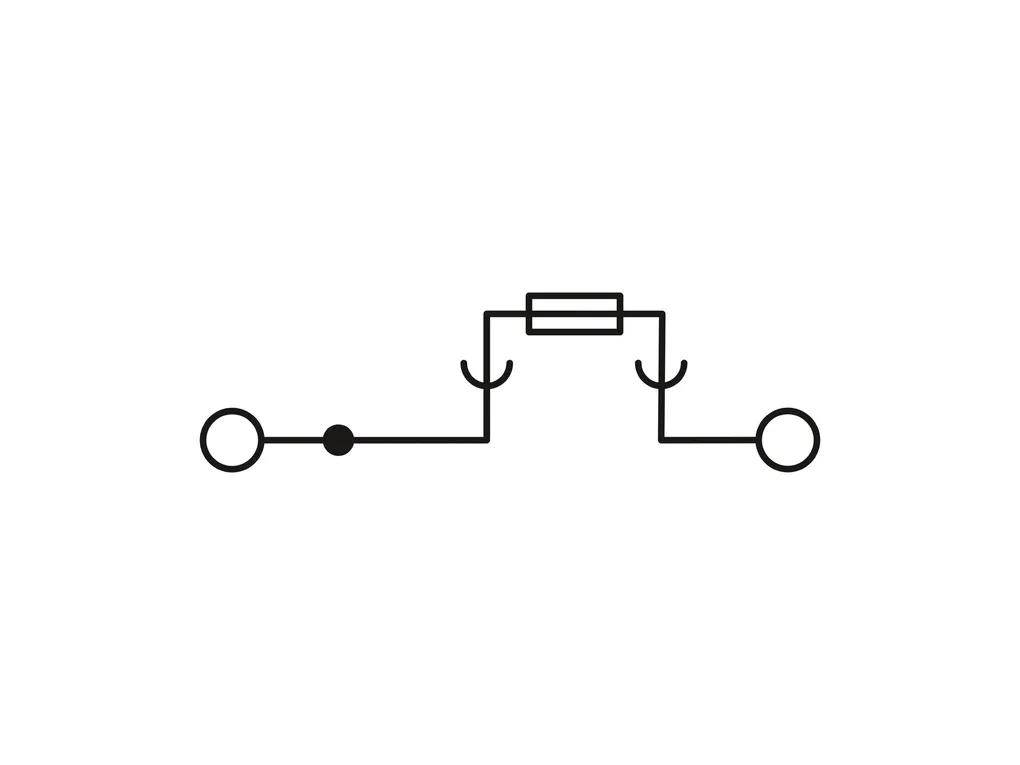

| Product properties | Product type: Fuse terminal block Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Fuse type: Glass / ceramics / ... Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 2.43 W Fuse: G / 6,3 x 32 |
| Connection data | Number of connections per level: 2 Nominal cross section: 16 mm² Level 1 above 1 below 1 Screw thread: M4 Tightening torque: 1.5 ... 1.8 Nm Stripping length: 11 mm Internal cylindrical gage: B6 Connection in acc. with standard: IEC 60947-7-3 Conductor cross section rigid: 0.5 mm² ... 16 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 16 mm² Conductor cross section, flexible [AWG]: 20 ... 6 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm² Cross-section with insertion bridge, rigid: 10 mm² Cross-section with insertion bridge, flexible: 10 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 4 mm² 2 conductors with same cross section, flexible: 0.5 mm² ... 4 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.5 mm² ... 4 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 10 mm² Nominal current: 10 A Maximum load current: 10 A Nominal voltage: 400 V 800 V (As a disconnect terminal block) Nominal cross section: 1.5 mm² |
| Ex data | Rated data (ATEX/IECEx) Identification: ïà II 3 GD Ex nA IIC Gc Operating temperature range: -50°C ... 125°C Ex-certified accessories: 1205066 SZS 1,0X4,0 VDE 1201442 E/UK Rated voltage: 275 V Rated insulation voltage: 250 V output: (Permanent) Ex level General Rated current: 10 A Maximum load current: 10 A Ex connection data General Torque range: 1.5 Nm ... 1.8 Nm Nominal cross section: 16 mm² Rated cross section AWG: 6 Connection capacity rigid: 0.5 mm² ... 16 mm² Connection capacity AWG: 20 ... 6 Connection capacity flexible: 0.5 mm² ... 16 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 4 mm² 2 conductors with the same cross-section AWG rigid: 20 ... 10 2 conductors with same cross section, stranded: 0.5 mm² ... 4 mm² 2 conductors with the same cross-section AWG flexible: 20 ... 10 |
| Dimensions | Width: 12 mm Height: 62 mm Depth on NSÃ32: 62.2 mm Depth on NSÃ35/7,5: 57.2 mm Depth on NSÃ35/15: 64.7 mm |
| Material specifications | Color: black Flammability rating according to UL 94: V2 Insulating material group: I Insulating material: PA |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-3 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 NSÃ32 |
