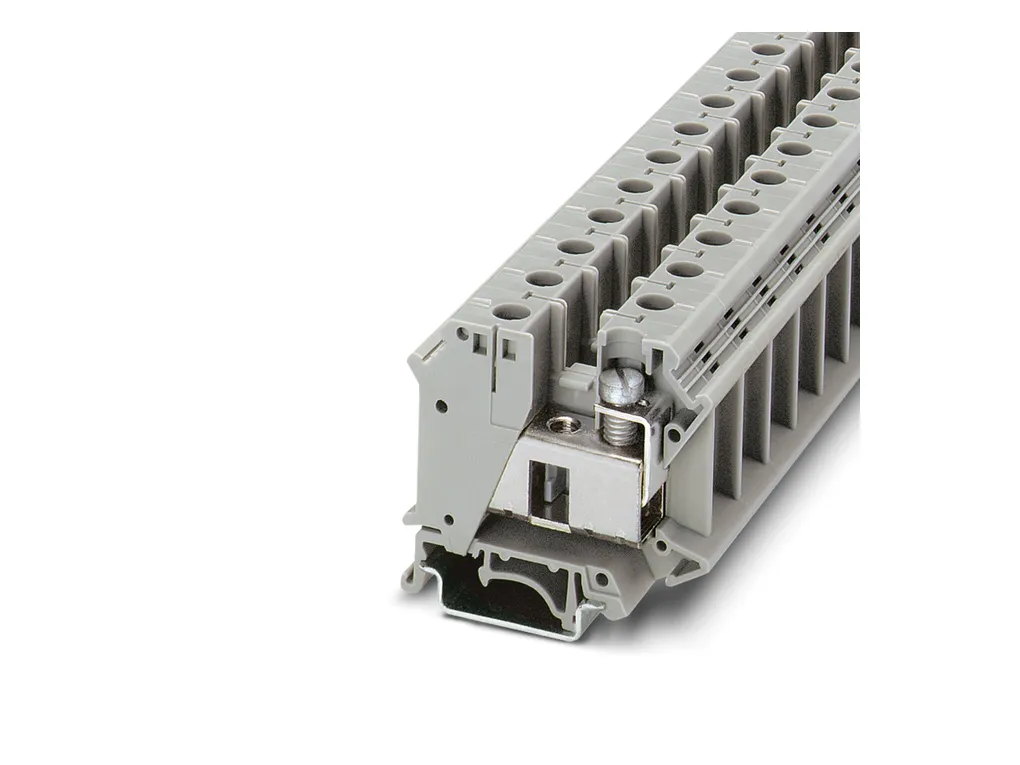

UTI 6-PE/L/NT - Installation ground terminal block

Installation ground terminal block, Assembly instruction:
In order to securely fix the neutral busbar in place, support brackets must be placed at the beginning and end of each terminal strip as well as every 20cm on longer terminal strips.
The corresponding support brackets can be found at phoenixcontact.com/products, nom. voltage: 400 V, nominal current: 38 A, Screw connection, Rated cross section: 6 mm², cross section:0.2 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color:gray

Cod. Articolo: 3076039 copia - copy

Cod. Fornitore: 3076039 copia - copy

PHOENIX CONTACT

Notes	General: Assembly instruction: In order to securely fix the neutral busbar in place, support brackets must be placed at the beginning and end of each terminal strip as well as every 20Ãcm on longer terminal strips. The corresponding support brackets can be found at phoenixcontact.com/products

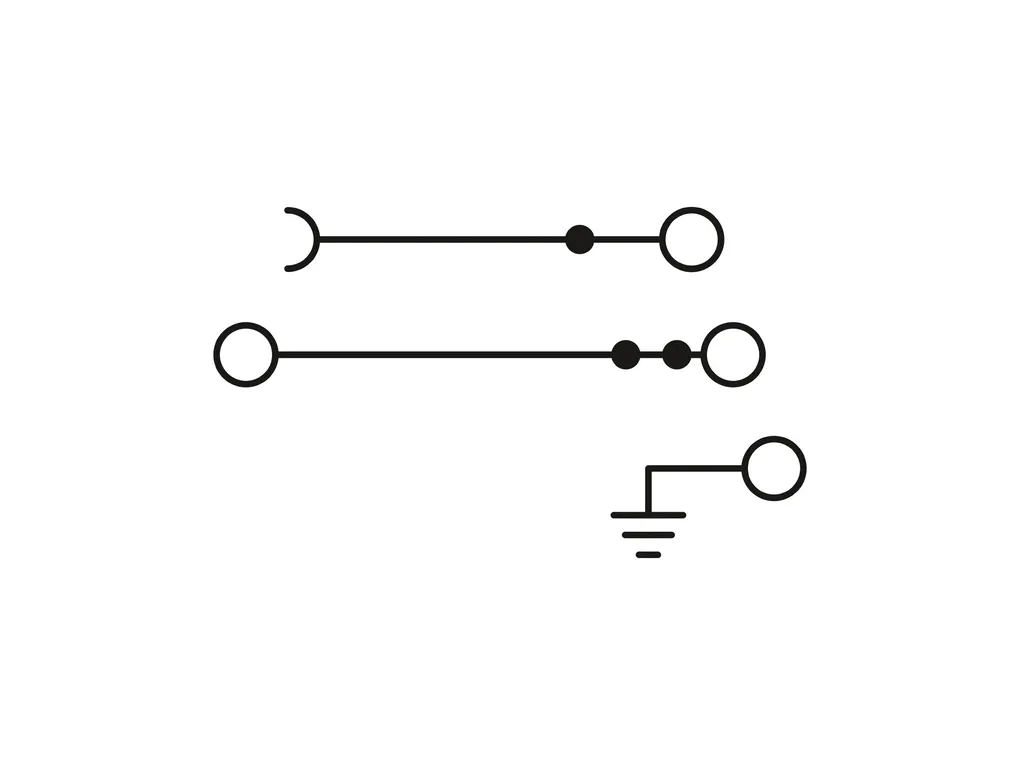

Product properties	Product type: Installation terminal block Number of connections: 4 Number of rows: 3 Potentials: 2 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 1.31 W Current carrying capacity of the neutral busbar: 140 A
Connection data	Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 6 mm² Level 1 Screw thread: M3 Note: Please observe the current carrying capacity of the DIN rails. Tightening torque: 0.5 ... 0.6 Nm Stripping length: 9 mm Internal cylindrical gage: A5 Conductor cross section rigid: 0.2 mm² ... 10 mm² Cross section AWG: 24 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 24 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.25 mm² ... 6 mm² Nominal current: 38 A (with 6 mm² conductor cross section) Maximum load current: 47 A (with 10 mm² conductor cross section) Nominal voltage: 400 V (phase conductor/phase conductor) 250 V (phase conductor/PE) 250 V (phase conductor/N) Nominal cross section: 6 mm²
Dimensions	Width: 8.2 mm End cover width: 2.2 mm Height: 95 mm Depth on NSÃ35/7,5: 51.5 mm Depth on NSÃ35/15: 59 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
