PHOENIX CONTACT 3190438
PHOENIX CONTACT 3190438
PHOENIX CONTACTNon disponibile

STG-MTN 0,5-1,0 - Crimp contact

Module socket contact, inserted in the PCC or HCC plug housing after crimping the conductor, for 0.5 mm2 ... 1.0 mm2 conductors
Cod. Articolo: 3190438 copia - copy
Cod. Fornitore: 3190438 copia - copy
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Connector
Product family: MSTBC-MT
Pitch: 0 mm

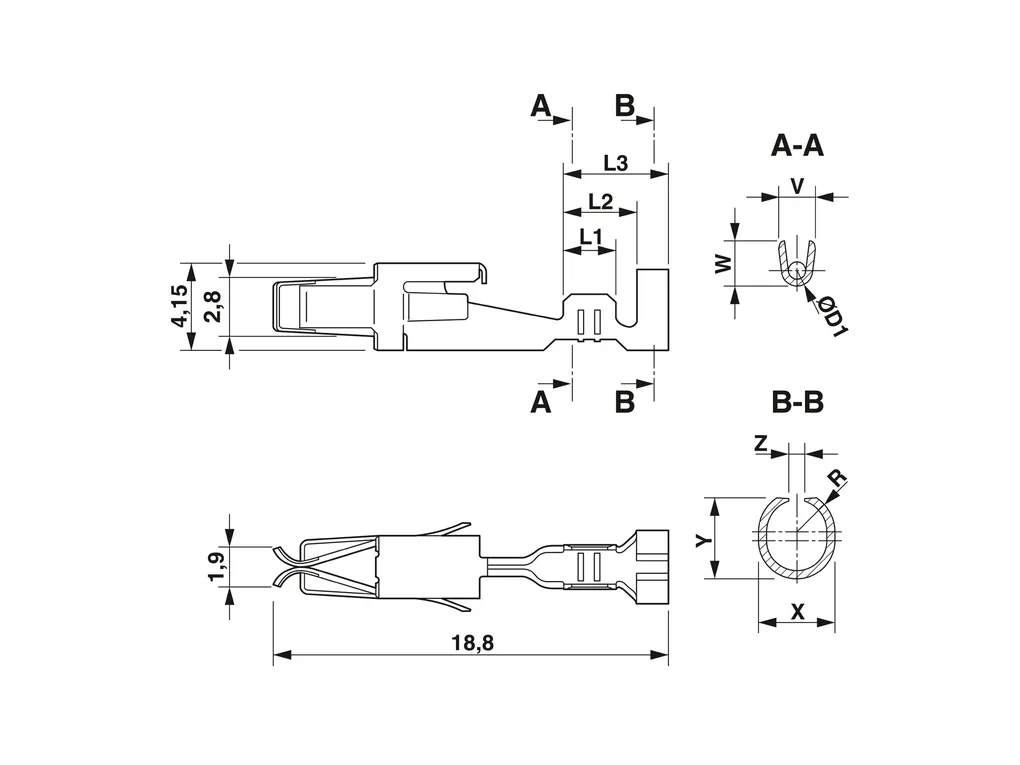

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8a26656237a10745a419cf6dffcf185f/-S204x204-FJPG
Pitch: 0 mm
Material specificationsContact surface: Tin Sn
Contact surface material: Tin
Metal surface contact area (top layer): Tin Sn)
MountingConnection method: Crimp connection
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Safety_notes_00001.pdf

Technical_drawing_44074.pdf

Technical_drawing_44075.pdf
