3200836 PHOENIX CONTACT -

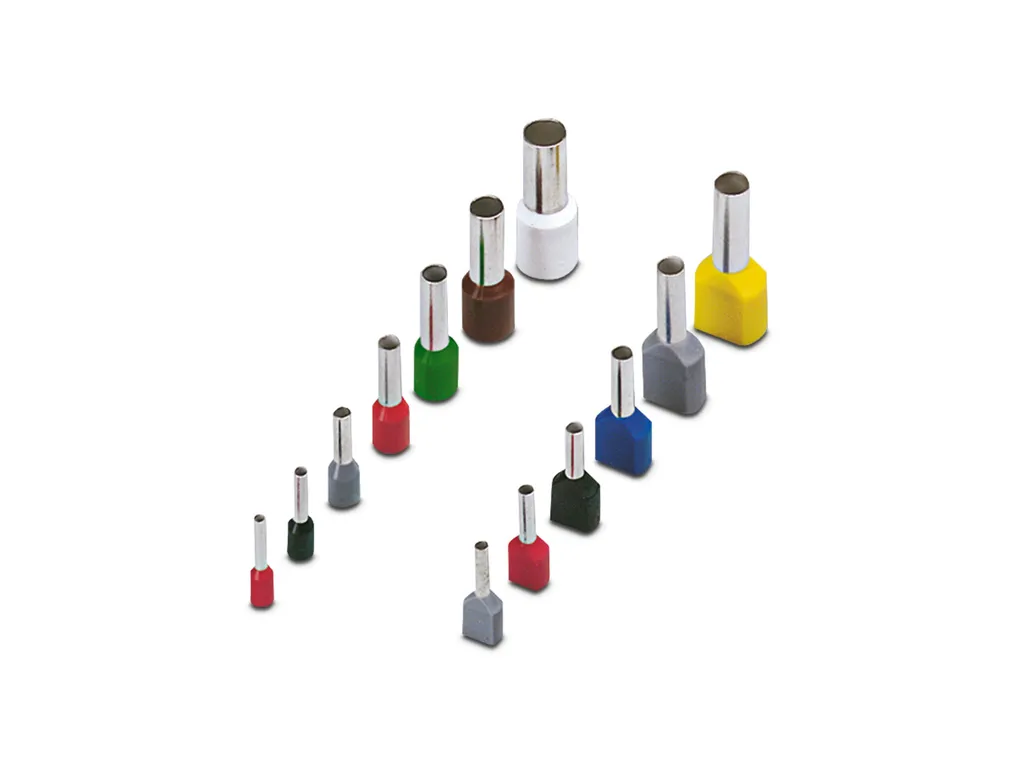

AI-TWIN 2X 2,5 -10 BU - Ferrule

Ferrules, for two 2.5 mm² conductors, sleeve length: 10 mm, with plastic collar, galvanically tin-plated, color: blue, color range according to NF C 63-023, CSA-certified

Cod. Articolo: 3200836 copia - copy

Cod. Fornitore: 3200836 copia - copy

PHOENIX CONTACT

Product properties	Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M
Connection data	Conductor connection Conductor cross section flexible max.: 2.5 mm² Conductor cross section AWG max.: 14 Stripping length: 14 mm
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a8c951bf9d6e3644bcd1bfbf28078f22/-S204x204-FJPG Sleeve length: 10 mm Maximum stripping length: 14 mm Ferrule diameter: 2.9 mm Sleeve wall thickness: 0.2 mm Insulating collar thickness: 0.3 mm Inner dimensions of the insulating collar: 4.2 mm
Material specifications	Color: blue Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen
Mechanical properties	Technical data Sleeve length: 10 mm
Environmental and real-life conditions	Ambient conditions Permanent temperature: 105°C (-40Ã°C no load / 0Ã°C dynamic load) Short-term temperature: 120°C
Standards and regulations	Design according to standard: DINÃ46228-4, ULÃ486F-F
