3200849 PHOENIX CONTACT -

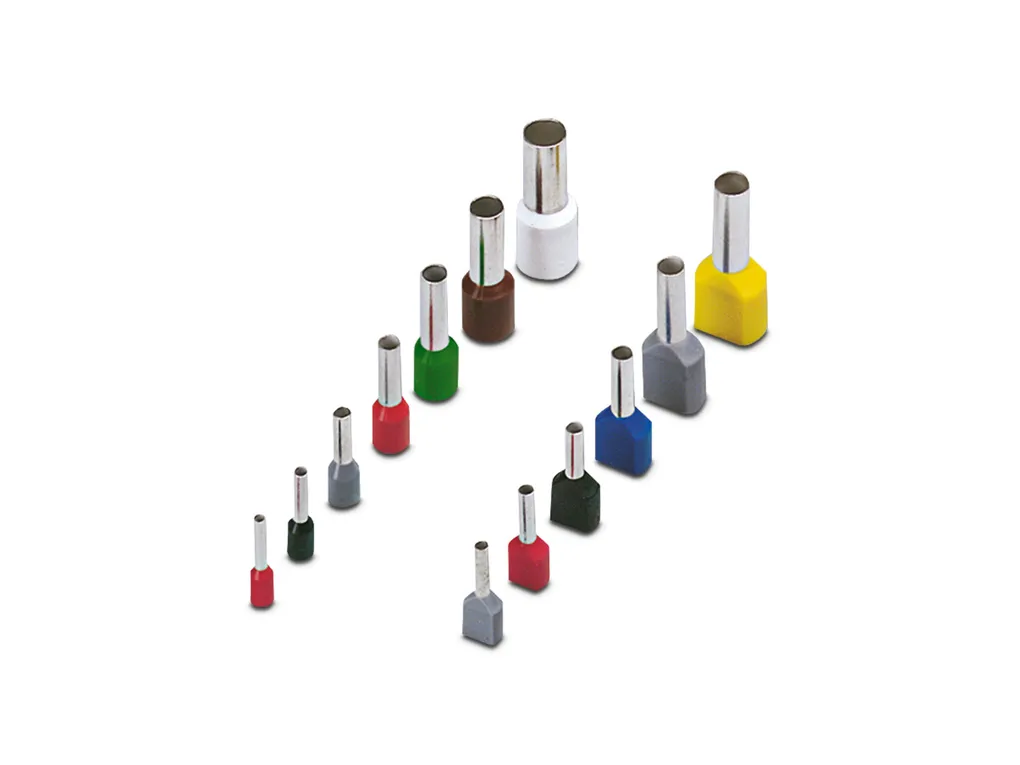

Product properties	Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M
Connection data	Conductor connection Conductor cross section flexible max.: 0.75 mm² Conductor cross section AWG max.: 18 Stripping length: 15 mm
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/21471997d069d94f929265ac80f49f55/-S204x204-FJPG Sleeve length: 12 mm Maximum stripping length: 15 mm Ferrule diameter: 1.3 mm Sleeve wall thickness: 0.15 mm Insulating collar thickness: 0.25 mm Inner dimensions of the insulating collar: 2.8 mm
Material specifications	Color: gray Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen
Mechanical properties	Technical data Sleeve length: 12 mm
Environmental and real-life conditions	Ambient conditions Permanent temperature: 105°C (-40Ã°C no load / 0Ã°C dynamic load) Short-term temperature: 120°C
Standards and regulations	Design according to standard: DINÃ46228-4, ULÃ486F-E
