3201013 PHOENIX CONTACT -

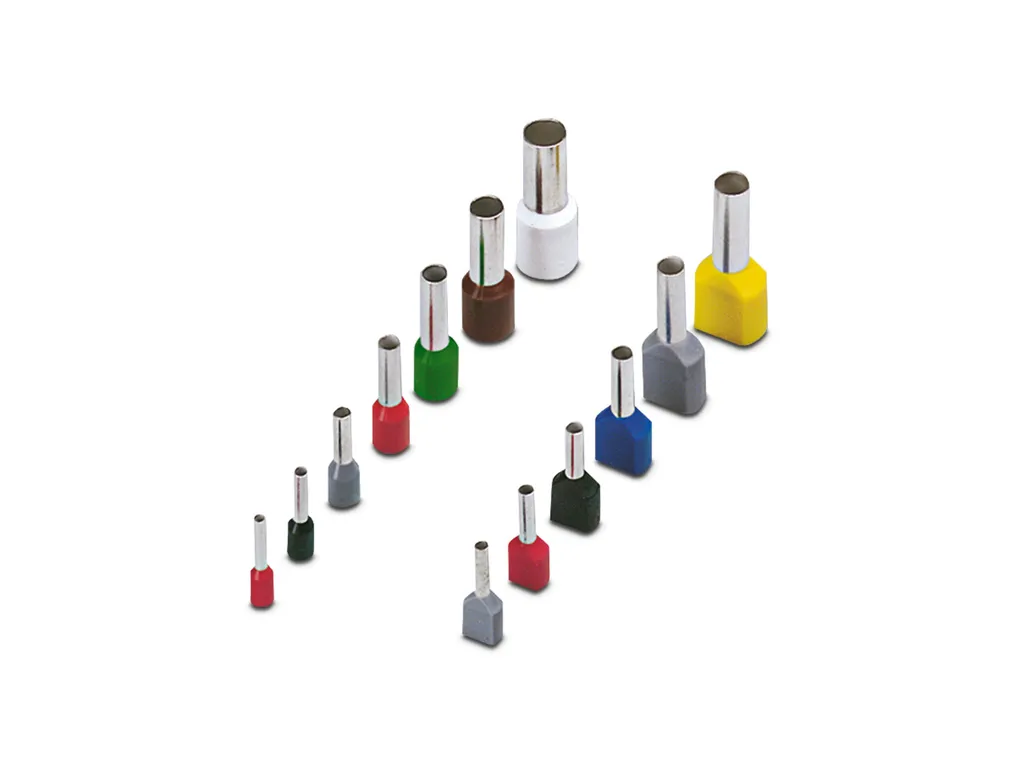

Product properties	Product type: Cable end sleeve Conductor category: stranded conductors, class 2, 5, 6 / B, C, K, M
Connection data	Conductor connection Conductor cross section flexible max.: 6 mm² Conductor cross section AWG max.: 10 Stripping length: 19 mm
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/655544f193c1474b97d1603d998cda9b/-S204x204-FJPG Sleeve length: 14 mm Maximum stripping length: 19 mm Ferrule diameter: 4.9 mm Sleeve wall thickness: 0.2 mm Insulating collar thickness: 0.4 mm Inner dimensions of the insulating collar: 5.9 mm
Material specifications	Color: yellow Material: CU-DHP Flammability rating according to UL 94: HB Coating: tin-plated (galvanic) Components: free from silicone and halogen
Mechanical properties	Technical data Sleeve length: 14 mm
Environmental and real-life conditions	Ambient conditions Permanent temperature: 105°C (-40Ã°C no load / 0Ã°C dynamic load) Short-term temperature: 120°C
Standards and regulations	Design according to standard: DINÃ46228-4, ULÃ486F-F
