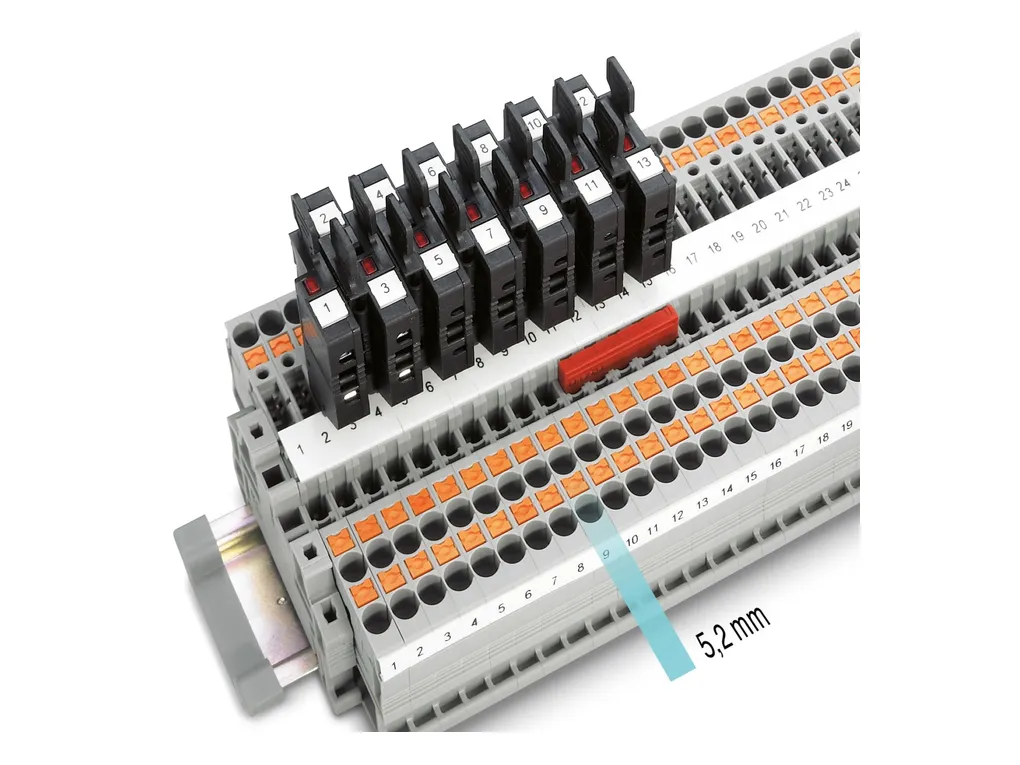

| Notes | General: Suitable for terminal blocks with a width of 5.2 mm and above with TG zone Notes on operation: Prior to replacing the cartridge fuse, disconnect the fuse connector from the basic terminal block. |
| Product properties | Product type: Fuse Potentials: 1 Data management status Article revision: 05 Insulation characteristics Degree of pollution: 3 |
| Electrical properties | Fuse: G / 5 x 20 LED voltage range: 12 V DC ... 30 V DC LED current range: 0.35 mA ... 0.95 mA |
| Input data | LED voltage range: 12 V DC ... 30 V DC |
| Connection data | Nominal current: 6.3 A (the current is determined by the fuse used) Maximum load current: 6.3 A (the current is determined by the fuse used) Nominal voltage: 24 V (The current is determined by the fuse used, the voltage by the fuse or selected LED display.) |
| Material specifications | Color: black (RAL 9005) Flammability rating according to UL 94: V0 Insulating material: PA Static insulating material application in cold: -60 °C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C Relative insulation material temperature index (Elec., UL 746 B): 130 °C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, no longer than 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 % |
