Non disponibile

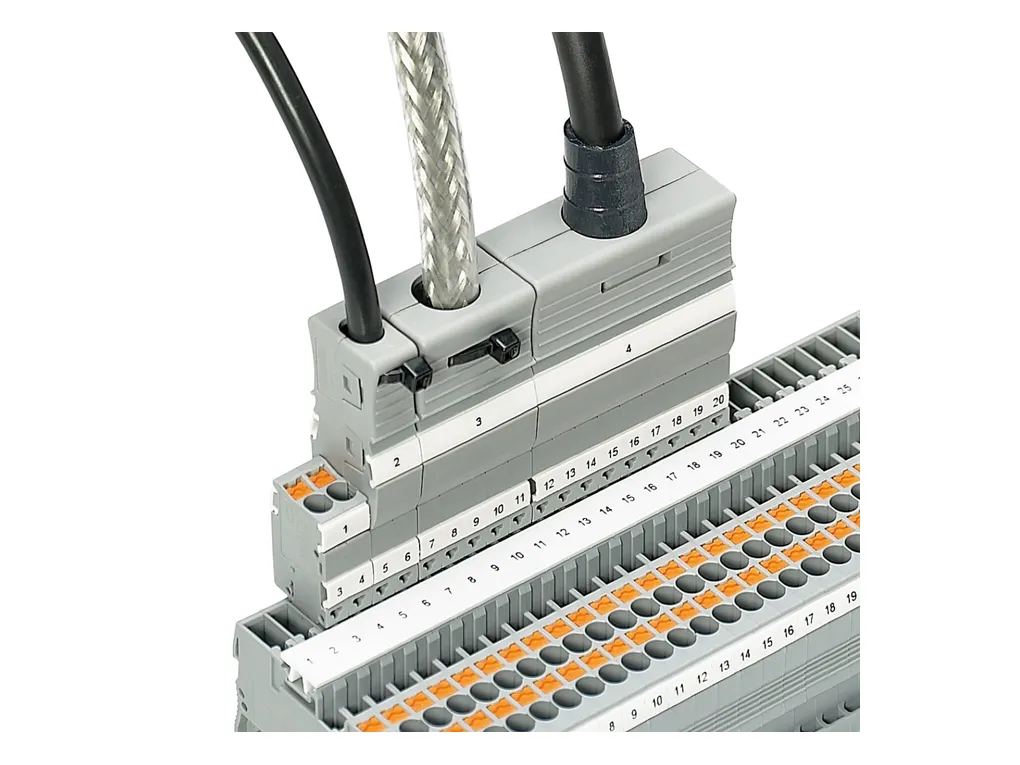

| Product properties | Product type: Cable housing Number of positions: 9 Pitch: 46.8 mm |
| Material specifications | Color: gray Material: PA Flammability rating according to UL 94: V0 Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Dimensions | Width: 46.8 mm Height: 19.9 mm Depth: 36.8 mm Pitch: 46.8 mm |
| Notes | General: a cable tie or cable clamp is required for strain relief |
