3211472 PHOENIX CONTACT -

PTTB 2,5-LA 230 - Double-level terminal block

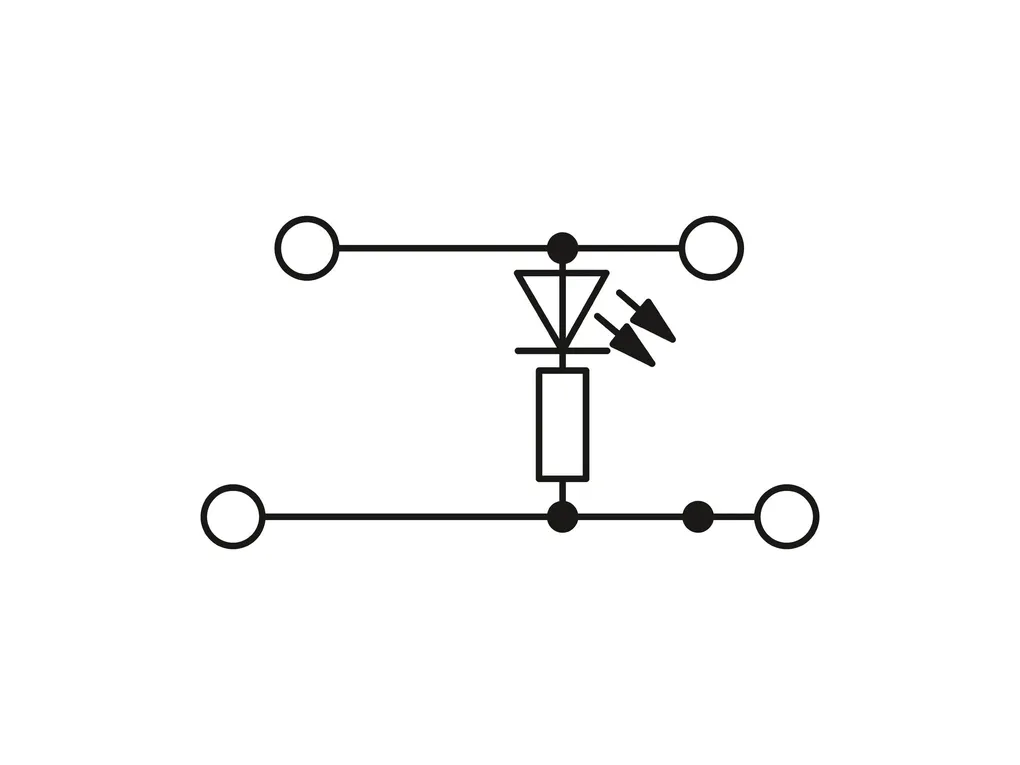

Double-level terminal block, The operating voltage is determined by the LED display version. Key data LA 110 - 250VAC/DC, 0.1mA - 0.5mA., nom. voltage:500 V, nominal current:20 A, 1st and 2nd level, connection method: Push-in connection, Rated cross section:2.5 mm², cross section:0.14 mm²-4 mm², mounting: NS 35/7,5, NS35/15, color:gray

Cod. Articolo: 3211472 copia - copy

Cod. Fornitore: 3211472 copia - copy

PHOENIX CONTACT

Notes	General: The operating voltage is determined by the LED display version. Key data LA 110 - 250ÃVÃAC/DC, 0.1ÃmA - 0.5ÃmA.
Product properties	Product type: Multi-level terminal block Number of connections: 4 Number of rows: 2 Insulation characteristics Overvoltage category: III
Electrical properties	Rated surge voltage: 4 kV Maximum power dissipation for nominal condition: 0.77 W
Connection data	Number of connections per level: 2 Nominal cross section: 2.5 mm² 1st and 2nd level Stripping length: 10 mm Internal cylindrical gage: A3 Conductor cross section rigid: 0.14 mm² ... 4 mm² Cross section AWG: 26 ... 12 (converted acc. to IEC) Conductor cross section flexible: 0.14 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 26 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.14 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.14 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² Nominal current: 20 A Maximum load current: 24 A (with 4Ãmm² conductor cross section, rigid) Nominal voltage: 500 V (the operating voltage is determined by the selected LED version) Nominal cross section: 2.5 mm² 1st and 2nd level Connection cross sections directly pluggable Conductor cross section rigid: 0.34 mm² ... 4 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 2.5 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 2.5 mm²
Dimensions	Width: 5.2 mm End cover width: 2.2 mm Height: 68 mm Depth on NSÃ35/7,5: 47.5 mm Depth on NSÃ35/15: 55 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: Yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NS 35/7,5 NSÃ35/15
