3212068 PHOENIX CONTACT -

PTPOWER 35-3L - High-current terminal block

High-current terminal block, Blocked, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 6, number of positions: 3, connection method: PowerTurn connection, Rated cross section: 35 mm², cross section: 2.5 mm²-35 mm², mounting type: NS35/15, color: gray

Cod. Articolo: 3212068 copia - copy

Cod. Fornitore: 3212068 copia - copy

PHOENIX CONTACT

Product properties	Product type: High current terminal block Number of positions: 3 Number of connections: 6 Number of rows: 1 Potentials: 3 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 4.06 W

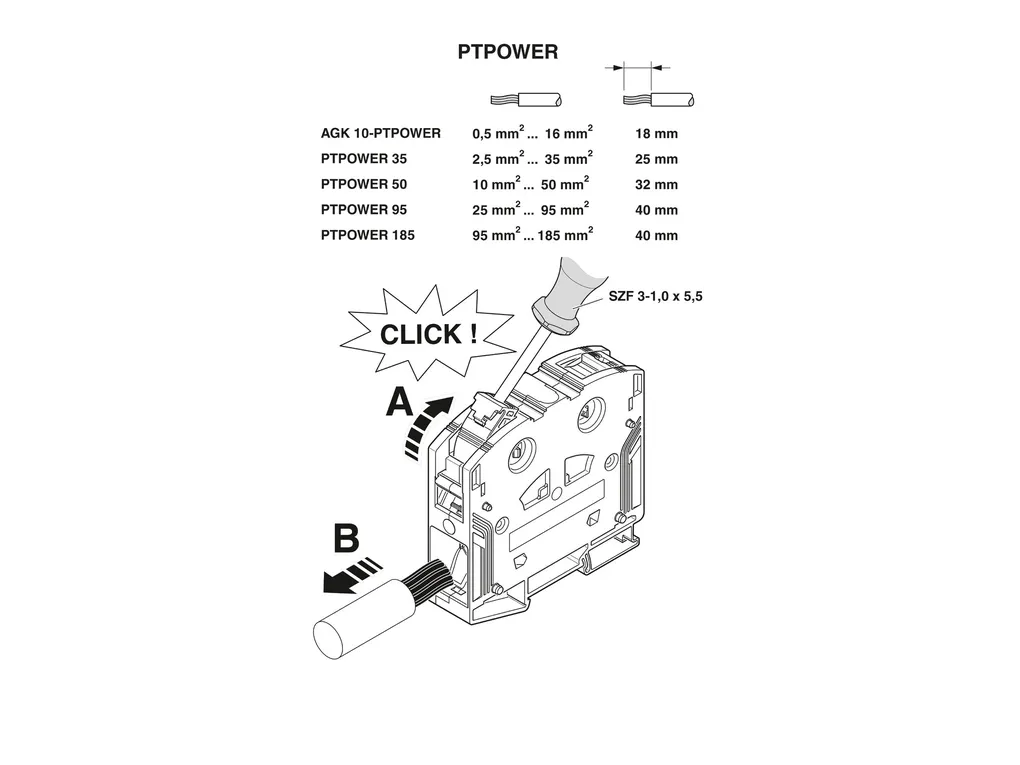

Connection data	Number of connections per level: 6 Nominal cross section: 35 mm² Rated cross section AWG: 2 Stripping length: 25 mm Conductor cross section rigid: 2.5 mm² ... 35 mm² Cross section AWG: 12 ... 2 (converted acc. to IEC) Conductor cross section flexible: 2.5 mm² ... 35 mm² Conductor cross section, flexible [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm² Nominal current: 125 A Maximum load current: 125 A (with 35 mm² conductor cross section) Nominal voltage: 1000 V Connection cross sections directly pluggable Conductor cross section rigid: 2.5 mm² ... 35 mm² Conductor cross section, rigid [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯ÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1206612 SZF 3-1,0X5,5 1201662 E/AL-NS 35 List of bridges: Plug-in bridge / FBS 2-16 / 3005963 Bridge data: 89 A / 25 mm² Ex temperature increase: 40 K (120ÃA/35Ãmm²) Rated voltage: 690 V for bridging with bridge: 690 V Rated insulation voltage: 660 V output: (Permanent) Ex level General Rated current: 109 A Maximum load current: 109 A Contact resistance: 0.16 mÃ© Ex connection data General Ferrule length: 25 mm Stripping length: 25 mm Nominal cross section: 35 mm² Rated cross section AWG: 2 Connection capacity rigid: 2.5 mm² ... 35 mm² Connection capacity AWG: 12 ... 2 Conductor cross section flexible, with ferrule without plastic sleeve min.: 6 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 35 mm²
Dimensions	Width: 48 mm Height: 91.6 mm Depth on NSÃ35/7,5: 69.8 mm Depth on NSÃ35/15: 77.3 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: No
Environmental and real-life conditions	Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NSÃ35/15
