3212078 PHOENIX CONTACT -

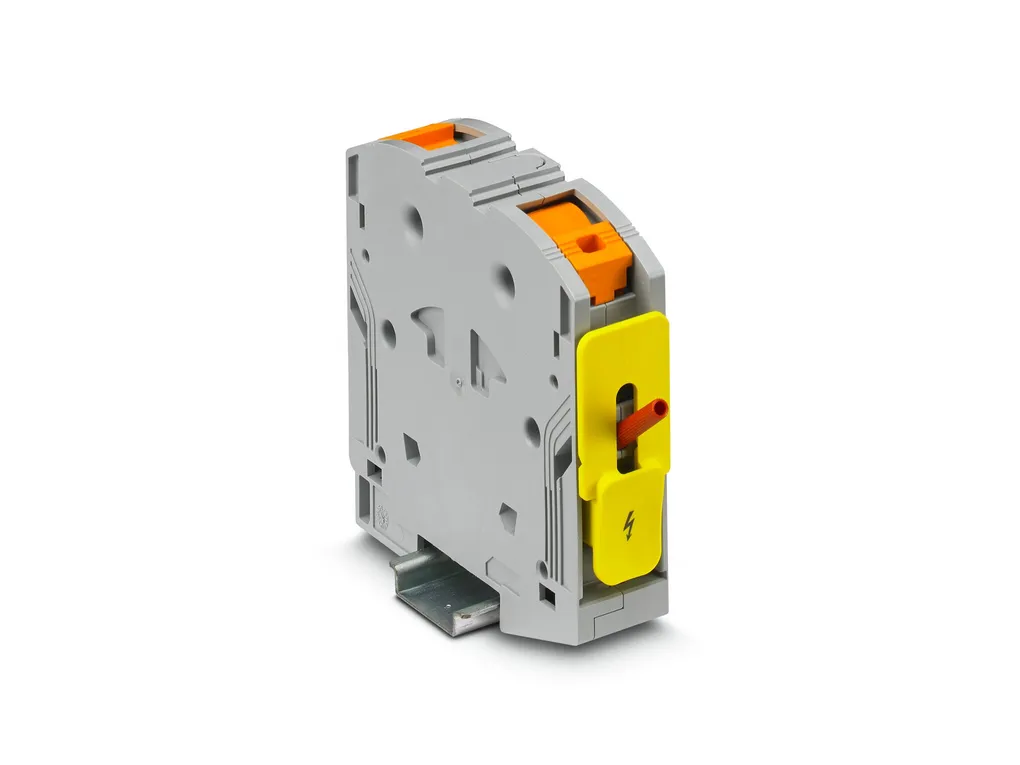

PTPOWER 35-F - High-current terminal block

High-current terminal block, nom. voltage: 1000 V, nominal current: 125 A, number of connections: 2, number of positions: 1, connection method: PowerTurn connection, Rated cross section: 35 mm², cross section: 2.5 mm²-35 mm², mounting type: direct screw connection, color: gray

Cod. Articolo: 3212078 copia - copy

Cod. Fornitore: 3212078 copia - copy

PHOENIX CONTACT

Product properties	Product type: High current terminal block Number of positions: 1 Pitch: 16 mm Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 4.06 W
Connection data	Number of connections per level: 2 Nominal cross section: 35 mm² Rated cross section AWG: 2 Stripping length: 25 mm Conductor cross section rigid: 2.5 mm² ... 35 mm² Cross section AWG: 12 ... 2 (converted acc. to IEC) Conductor cross section flexible: 2.5 mm² ... 35 mm² Conductor cross section, flexible [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm² Nominal current: 125 A Maximum load current: 125 A (with 35 mm² conductor cross section) Nominal voltage: 1000 V Connection cross sections directly pluggable Conductor cross section rigid: 2.5 mm² ... 35 mm² Conductor cross section, rigid [AWG]: 12 ... 2 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 2.5 mm² ... 35 mm² Flexible conductor cross section (ferrule with plastic sleeve): 2.5 mm² ... 35 mm²
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯ÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1206612 SZF 3-1,0X5,5 1201662 E/AL-NS 35 List of bridges: Plug-in bridge / FBS 2-16 / 3005963 Bridge data: 89 A / 25 mm² Ex temperature increase: 40 K (120ÃA/35Ãmm²) Rated voltage: 690 V for bridging with bridge: 690 V Rated insulation voltage: 660 V output: (Permanent) Ex level General Rated current: 109 A Maximum load current: 109 A Contact resistance: 0.16 mÃ© Ex connection data General Ferrule length: 25 mm Stripping length: 25 mm Nominal cross section: 35 mm² Rated cross section AWG: 2 Connection capacity rigid: 2.5 mm² ... 35 mm² Connection capacity AWG: 12 ... 2 Conductor cross section flexible, with ferrule without plastic sleeve min.: 6 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 35 mm²
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3eaf41ffc9df234480a8b4a42e5cfeef/-S204x204-FJPG Width: 16 mm Height: 120.2 mm Depth: 68.3 mm Drill hole spacing: 108 mm Hole diameter: 5.5 mm Pitch: 16 mm
Material specifications	Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical tests	Surge voltage test Test voltage setpoint: 9.8 kV Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢Ã¢°¤Ã45ÃK Result: Test passed Short-time withstand current 35 mm²: 4.2 kA Power-frequency withstand voltage Test voltage setpoint: 2.2 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: No Technical data Drill hole spacing: 108 mm
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NSÃ35 Test force setpoint: 10 N Result: Test passed Test for conductor damage and slackening Rotation speed: 10Ãrpm Revolutions: 135 Conductor cross section/weight: 2.5 mm² / 0.7 kg 35 mm² / 6.8 kg Result: Test passed
Environmental and real-life conditions	Aging Temperature cycles: 192 Result: Test passed Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: direct screw connection
