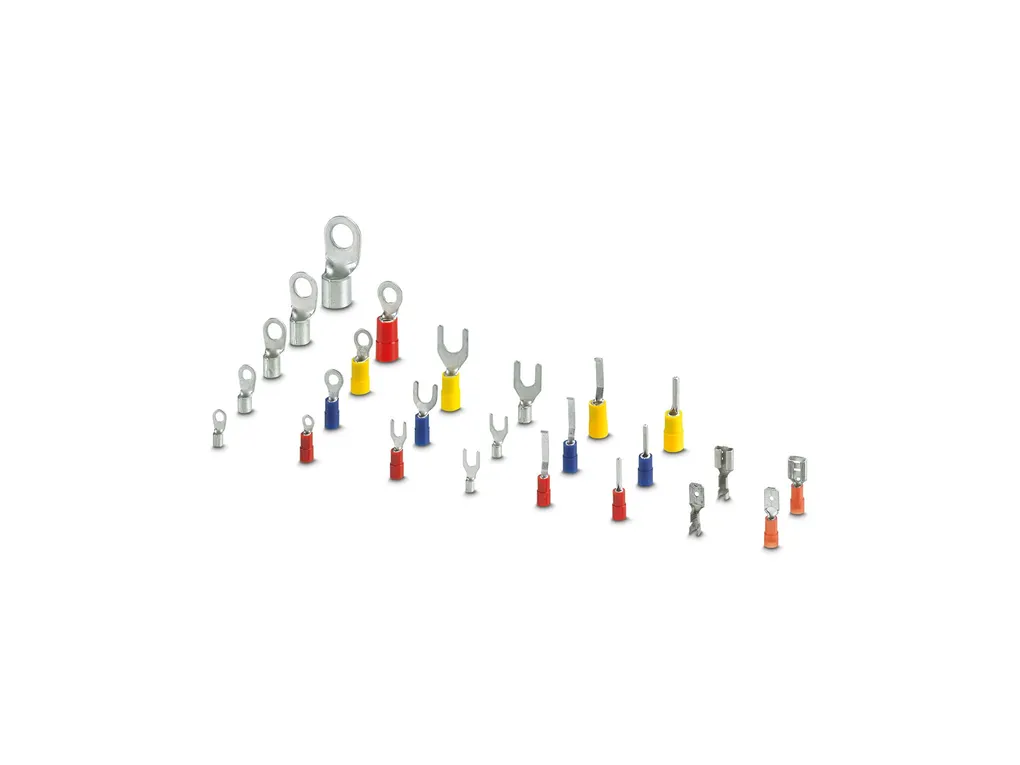

| Product properties | Product type: Connector |
| Electrical properties | Fuse: yes |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9d444e33ead1424ab717ecbeb186f450/-S204x204-FJPG Width: 5.5 mm Length of the insulating material sleeve: 10.5 mm Maximum stripping length: 7 mm Distance from the center to the insulating material sleeve: 4.3 mm Min. material thickness: 0.75 mm Inner dimensions of the insulating collar: 4.1 mm Internal dimensions Internal diameter: 3.2 mm |
| Material specifications | Color: red Material: Copper Flammability rating according to UL 94: V2 Coating: tin-plated Insulating material: PA Components: halogen-free |
| Environmental and real-life conditions | Ambient conditions Optimum ambient temperature (storage/transport): 20°C 50 % Humidity (RH), store inside sealed original packaging. Avoid direct sunlight and heat. Ambient temperature (operation): -20°C ... 105°C Ambient temperature (assembly): -20°C ... 100°C Short-term temperature: 100°C |
| Standards and regulations | Design according to standard: JIS, UL, CSA |
