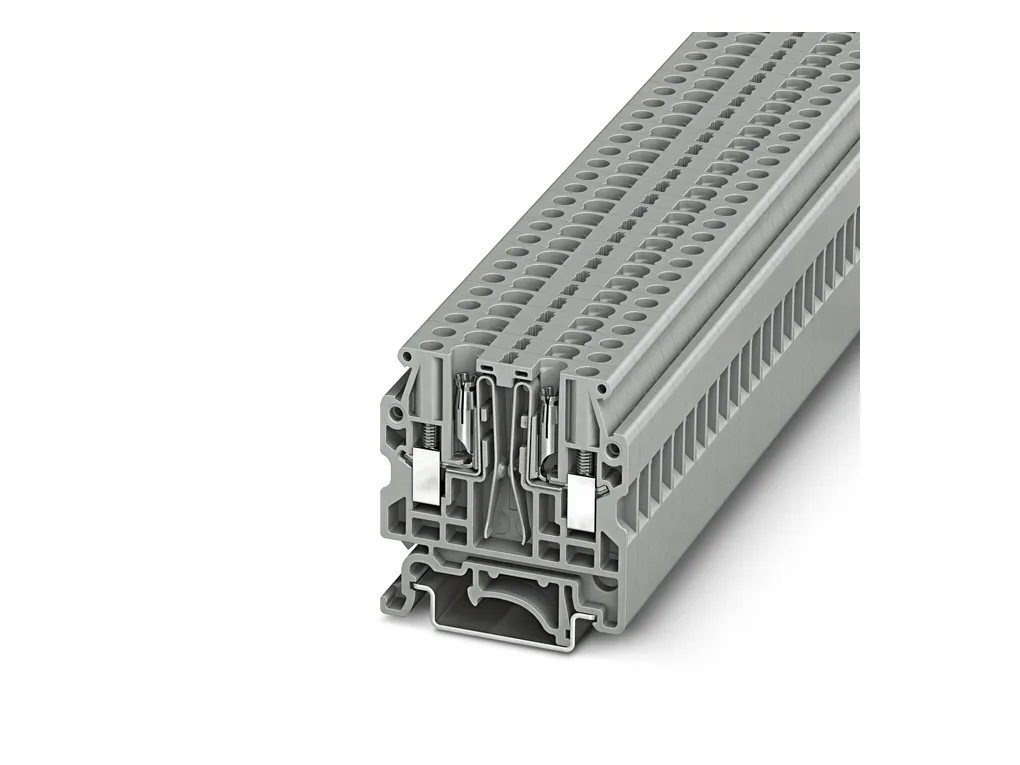

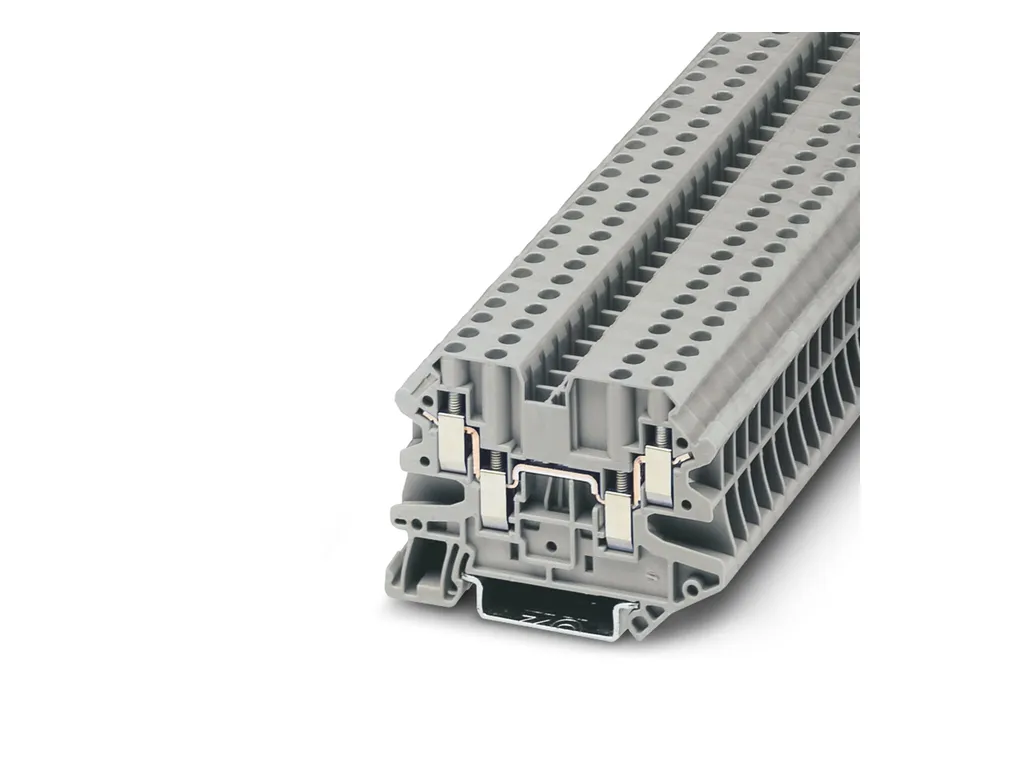

| Product properties | Product type: Disconnect terminal block Number of positions: 1 Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 1.02 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 4 mm² Rated cross section AWG: 12 Level 1 above 1 below 1 Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 9 mm Connection in acc. with standard: IEC 60947-7-1 Conductor cross section rigid: 0.5 mm² ... 6 mm² Cross section AWG: 20 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 20 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 4 mm² Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.5 mm² ... 1.5 mm² 2 conductors with same cross section, solid: 0.5 mm² ... 1.5 mm² 2 conductors with the same cross-section AWG rigid: 20 ... 16 (converted acc. to IEC) 2 conductors with same cross section, flexible: 0.5 mm² ... 1.5 mm² 2 conductors with the same cross-section AWG flexible: 20 ... 16 (converted acc. to IEC) 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.5 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Nominal current: 10 A Maximum load current: 10 A Nominal voltage: 500 V Nominal cross section: 4 mm² |
| Dimensions | Width: 6.2 mm Height: 45.5 mm Depth: 46.1 mm Depth on NSÃ32: 52.3 mm Depth on NSÃ35/7,5: 47.3 mm Depth on NSÃ35/15: 54.8 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Electrical tests | Surge voltage test Test voltage setpoint: 7.3 kV Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature ââ°¤Ã45ÃK Result: Test passed Short-time withstand current 1.5 mm²: 0.18 kA Power-frequency withstand voltage Test voltage setpoint: 1.89 kV Result: Test passed |
| Mechanical properties | Mechanical data Open side panel: Yes |
| Mechanical tests | Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NSÃ32/NSÃ35 Test force setpoint: 1 N Result: Test passed Test for conductor damage and slackening Rotation speed: 10Ãrpm Revolutions: 135 Conductor cross section/weight: 0.5 mm² / 0.3 kg 4 mm² / 0.9 kg 6 mm² / 1.4 kg Result: Test passed |
| Environmental and real-life conditions | Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: IEC 61373:2010-05 Spectrum: Service life test categoryÃ1, classÃB, body mounted Frequency: 5ÃHzÃ...Ã150ÃHz ASD level: 0.964 (m/s²)²/Hz Acceleration: 5,7Ãm/s² Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: IEC 61373:2010-05 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 105°C (max. short-term operating temperature RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 NSÃ32 |
