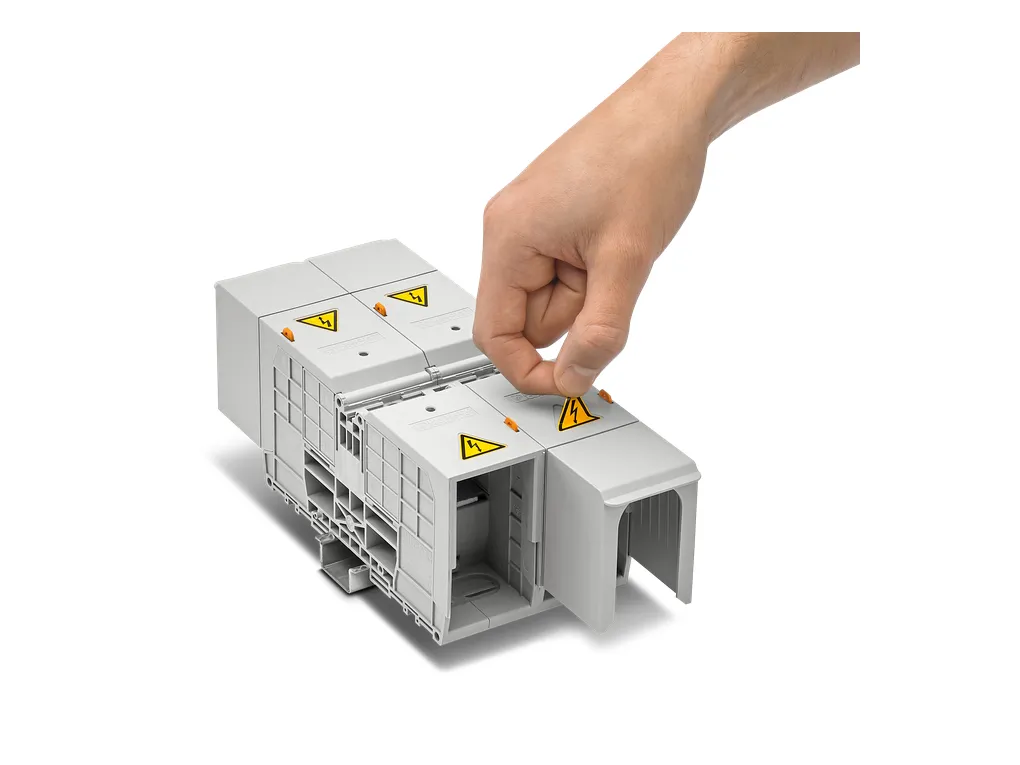

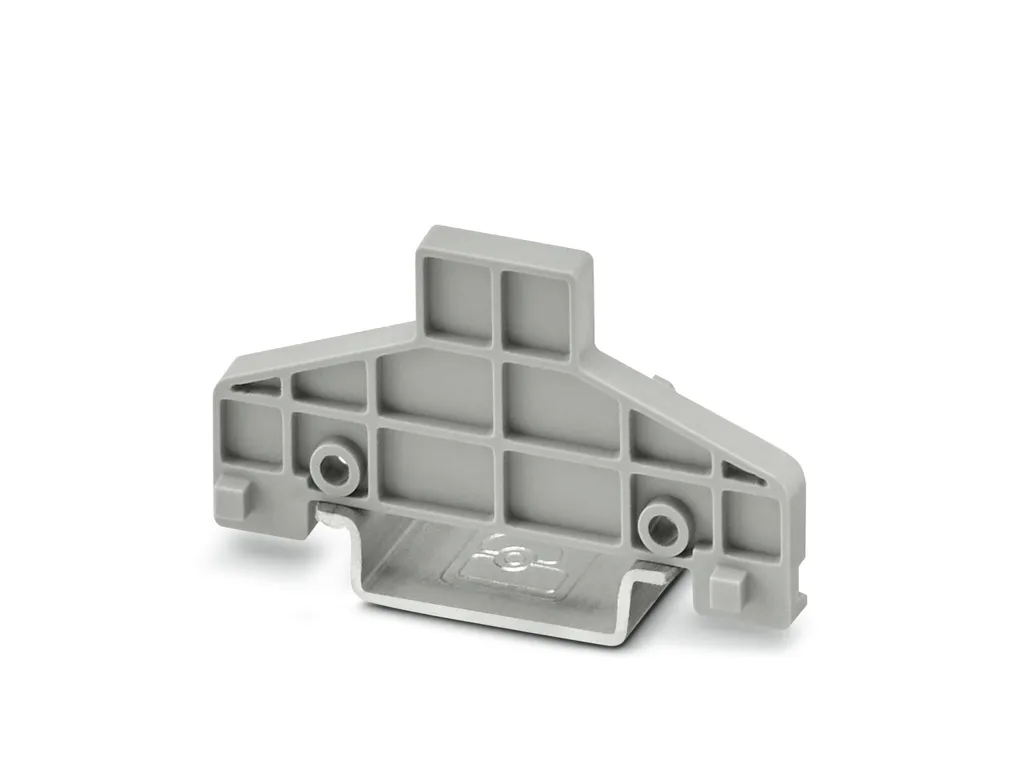

| Product properties | Product type: Bolt connection terminal block Number of positions: 1 Pitch: 49 mm Area of application: Railway industry Machine building Plant engineering Number of connections: 2 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 13.78 W |
| Connection data | Number of connections per level: 2 Nominal cross section: 240 mm² 1 level Stripping length: The stripping length depends on the specification provided by the cable lug manufacturer. Connection in acc. with standard: IEC 60947-7-1 Nominal current: 415 A Maximum load current: 415 A (with 240Ãmm² conductor cross section) Nominal voltage: 1500 VÃDC 1000 VÃAC Cable lug connection DINÃ46234:1980-03 Connection in acc. with standard: DINÃ46234:1980-03 DINÃ46235:1983-07 Cross section: 10 mm² ... 240 mm² Cross section range AWG: 8 ... 500 kcmil (converted acc. to IEC) Hole diameter: 13 mm Width: 38 mm 42 mm Bolt diameter: 12 mm Screw thread: M12 Tightening torque: 14 ... 30 Nm |
| Ex data | Rated data (ATEX/IECEx) Identification: ïÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 0800886 E/NS 35 N List of bridges: / RBO 12-VS 2 / 3244669 / RBO 12-VS 3 / 3244672 Bridge data: 415 A / 240 mm² Ex temperature increase: 40 K (415ÃA / 240Ãmm²) Rated voltage: 1100 V for bridging with bridge: 1100 V Rated insulation voltage: 1000 V output: (Permanent) Ex level General Rated current: 415 A Maximum load current: 415 A Contact resistance: 0.05 mé Ex connection data General Torque range: 14 Nm ... 30 Nm Nominal cross section: 240 mm² Rated cross section AWG: 500 kcmil Connection capacity rigid: 10 mm² ... 240 mm² Connection capacity AWG: 8 ... 500 kcmil Connection capacity flexible: 10 mm² ... 240 mm² 2 conductors with same cross section, solid: 10 mm² ... 240 mm² 2 conductors with the same cross-section AWG rigid: 8 ... 500 kcmil 2 conductors with same cross section, stranded: 10 mm² ... 240 mm² 2 conductors with the same cross-section AWG flexible: 8 ... 500 kcmil |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4ca8faf9acd52b4ab1e80ed7d098e1da/-S204x204-FJPG Width: 49 mm Height: 265 mm Depth on NSÃ35/7,5: 83.3 mm Depth on NSÃ35/15: 90.8 mm Bolt length: 36.5 mm Hole diameter: 6.4 mm Pitch: 49 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Electrical tests | Surge voltage test Test voltage setpoint: 12 kV Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature ââ°¤Ã45ÃK Result: Test passed Short-time withstand current 240 mm²: 28.8 kA Power-frequency withstand voltage Test voltage setpoint: 2.7 kV Result: Test passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Mechanical tests | Mechanical strength Result: Test passed Attachment on the carrier DIN rail/fixing support: NSÃ35 Test force setpoint: 20 N Result: Test passed |
| Environmental and real-life conditions | Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Spectrum: Service life test categoryÃ1, classÃB, body mounted Frequency: f1 = 5 Hz to f2 = 150 Hz ASD level: 1.857 (m/s²)²/Hz Acceleration: 0.8g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Pulse shape: Half-sine Acceleration: 5g Shock duration: 30Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-1 |
| Mounting | Mounting type: NS 35/7,5 NSÃ35/15 direct screw connection |
