3248039 PHOENIX CONTACT -

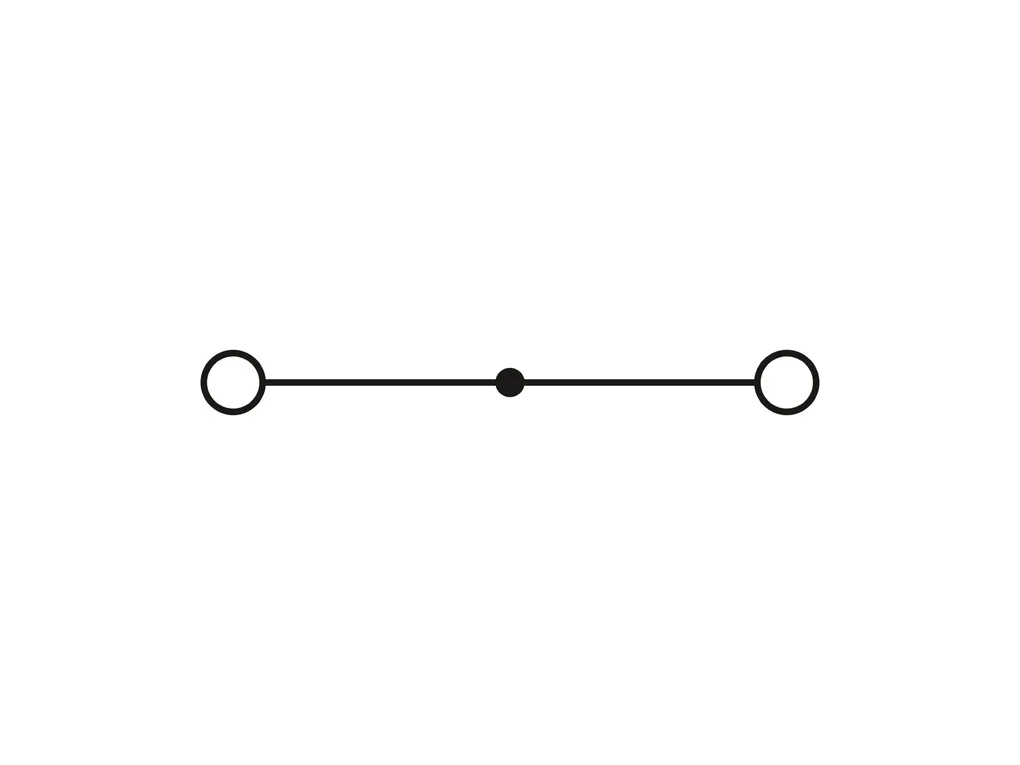

MUT 6 BU - Mini feed-through terminal block

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 41 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², mounting type: NS 15, color: blue

Cod. Articolo: 3248039 copia - copy

Cod. Fornitore: 3248039 copia - copy

PHOENIX CONTACT

Product properties	Product type: Miniature terminal block Number of positions: 1 Number of connections: 2 Number of rows: 1 Data management status Article revision: 02 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 0.56 W
Connection data	Number of connections per level: 2 Nominal cross section: 6 mm² Rated cross section AWG: 10 Screw thread: M3 Tightening torque: 0.6 ... 0.8 Nm Stripping length: 8 mm ... 9 mm Internal cylindrical gage: A5 B4 Conductor cross section rigid: 0.2 mm² ... 10 mm² Cross section AWG: 24 ... 8 (converted acc. to IEC) Conductor cross section flexible: 0.25 mm² ... 6 mm² Conductor cross section, flexible [AWG]: 24 ... 10 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.25 mm² ... 6 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1.5 mm² ... 4 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible: 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm² Nominal current: 41 A (with a 6 mm² conductor cross section) Maximum load current: 57 A (with 10 mm² conductor cross section) Nominal voltage: 500 V
Ex data	Rated data (ATEX/IECEx) Identification: Ã¯Ã II 2 GD Ex eb IIC Gb Operating temperature range: -60 °C ... 110 °C Ex-certified accessories: 3248033 D-MUT 2,5/4 1205053 SZS 0,6X3,5 3022263 CLIPFIX 15 List of bridges: Plug-in bridge / FBSL 2-8 / 3030324 Plug-in bridge / FBSL 3-8 / 3030325 Plug-in bridge / FBSL 5-8 / 3030327 Plug-in bridge / FBSL 10-8 / 3030328 Bridge data: 38 A / 6 mm² Ex temperature increase: 40 K (41 A / 6 mm²) Rated voltage: 275 V for bridging with bridge: 220 V - At bridging between non-adjacent terminal blocks: 220 V - At bridging between non-adjacent terminal blocks via PE terminal block: 220 V - At cut-to-length bridging with cover: 220 V Rated insulation voltage: 220 V output: (Permanent) Ex level General Rated current: 39 A Maximum load current: 50 A Contact resistance: 0.08 mÃ© Ex connection data Torque range: 0.6 Nm ... 0.8 Nm Connection capacity rigid: 0.2 mm² ... 10 mm² Connection capacity AWG: 24 ... 8 24 ... 10 Connection capacity flexible: 0.25 mm² ... 6 mm² 2 conductors with same cross section, solid: 0.2 mm² ... 2.5 mm² 2 conductors with the same cross-section AWG rigid: 24 ... 14 2 conductors with same cross section, stranded: 0.2 mm² ... 2.5 mm² 2 conductors with the same cross-section AWG flexible: 24 ... 14
Dimensions	Width: 8.2 mm End cover width: 2.2 mm Height: 29.9 mm Depth on NS 15: 34 mm
Material specifications	Color: blue (RAL 5015) Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60 °C Relative insulation material temperature index (Elec., UL 746 B): 130 °C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Electrical tests	Surge voltage test Result: Test passed Temperature-rise test Requirement temperature-rise test: Increase in temperature Ã¢Ã¢°¤ 45 K Result: Test passed Short-time withstand current 6 mm²: 0.72 kA Power-frequency withstand voltage Test voltage setpoint: 1.89 kV Result: Test passed
Mechanical properties	Mechanical data Open side panel: Yes
Mechanical tests	Mechanical strength Result: Test passed Attachment on the carrier Result: Test passed Test for conductor damage and slackening Rotation speed: 10 (+/- 2) rpm Revolutions: 135 Conductor cross section/weight: 0.2 mm² / 0.2 kg 6 mm² / 1.4 kg 10 mm² / 2 kg Result: Test passed
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DIN EN 50155 (VDE 0115-200):2018-05 Spectrum: Service life test category 2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DIN EN 50155 (VDE 0115-200):2018-05 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18 ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) Ambient temperature (assembly): -5 °C ... 70 °C Ambient temperature (actuation): -5 °C ... 70 °C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 %
Mounting	Mounting type: NS 15
