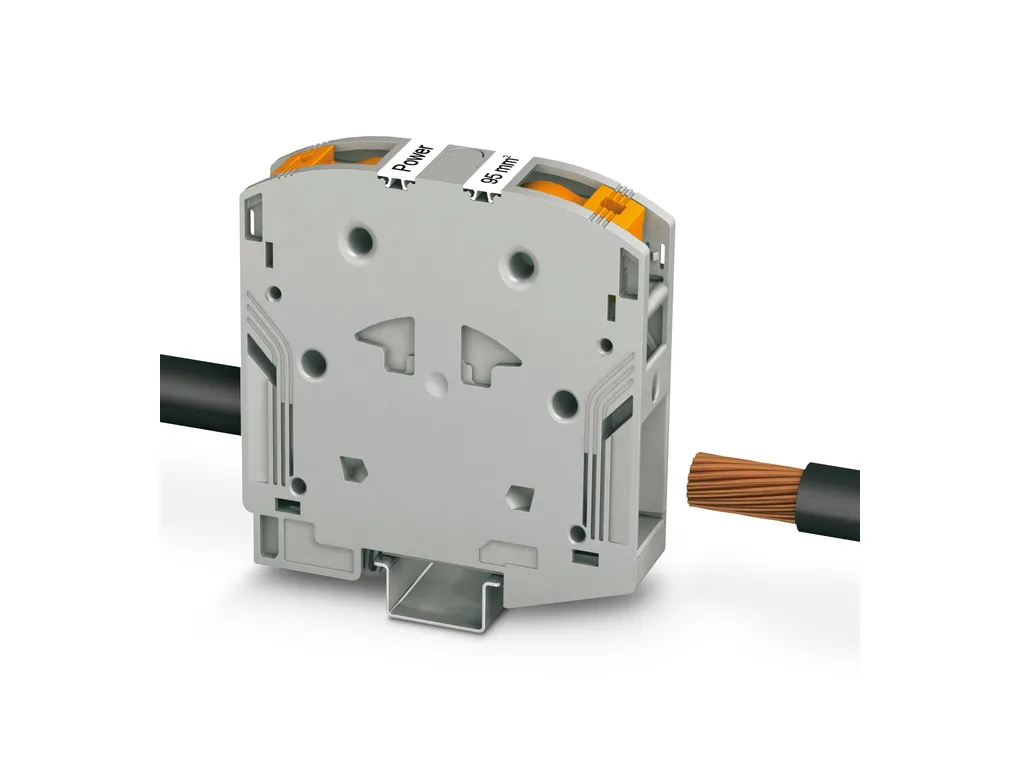

| Product properties | Product type: Ground terminal block Number of positions: 1 Area of application: Railway industry Machine building Plant engineering Number of connections: 2 Number of rows: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated surge voltage: 8 kV Maximum power dissipation for nominal condition: 7.54 W |
| Connection data | Grounding foot: Yes Number of connections per level: 2 Nominal cross section: 95 mm² Note: May only be mounted on 2.3 mm copper DIN rails Stripping length: 40 mm Connection in acc. with standard: IEC 60947-7-2 Conductor cross section rigid: 25 mm² ... 95 mm² Cross section AWG: 2 ... 3/0 (converted acc. to IEC) Conductor cross section flexible: 25 mm² ... 95 mm² Conductor cross section, flexible [AWG]: 2 ... 3/0 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 25 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 25 mm² ... 95 mm² Cross-section with insertion bridge, rigid: 70 mm² Cross-section with insertion bridge, flexible: 70 mm² Connection cross sections directly pluggable Conductor cross section rigid: 25 mm² ... 95 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 25 mm² ... 95 mm² Flexible conductor cross section (ferrule with plastic sleeve): 25 mm² ... 95 mm² |
| Ex data | Rated data (ATEX/IECEx) Identification: ïÃÃIIÃ2ÃGDÃÃEx eb IIC Gb Operating temperature range: -60°C ... 110°C Ex-certified accessories: 1206612 SZF 3-1,0X5,5 1201662 E/AL-NS 35 output: (Permanent) Ex connection data General Ferrule length: 40 mm Stripping length: 40 mm Nominal cross section: 95 mm² Rated cross section AWG: 4/0 Connection capacity rigid: 25 mm² ... 95 mm² Connection capacity AWG: 4 ... 4/0 Conductor cross section flexible, with ferrule without plastic sleeve min.: 25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max.: 95 mm² Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG: 4 ... 4/0 |
| Dimensions | Width: 25 mm Height: 105.5 mm Depth on NSÃ35/15: 108.7 mm |
| Material specifications | Color: green-yellow Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed |
| Mechanical properties | Mechanical data Open side panel: No |
| Environmental and real-life conditions | Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f1 = 5 Hz to f2 = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2008-03 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (operation): -60°C ... 110°C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60ðC to +70ðC) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (operation): 20 % ... 90 % Permissible humidity (storage/transport): 30 % ... 70 % |
| Standards and regulations | Connection in acc. with standard: IEC 60947-7-2 |
| Mounting | Mounting type: 2.3 mm copper DIN rail |
