PTFIX 10/18X4-G BN - Distribution block

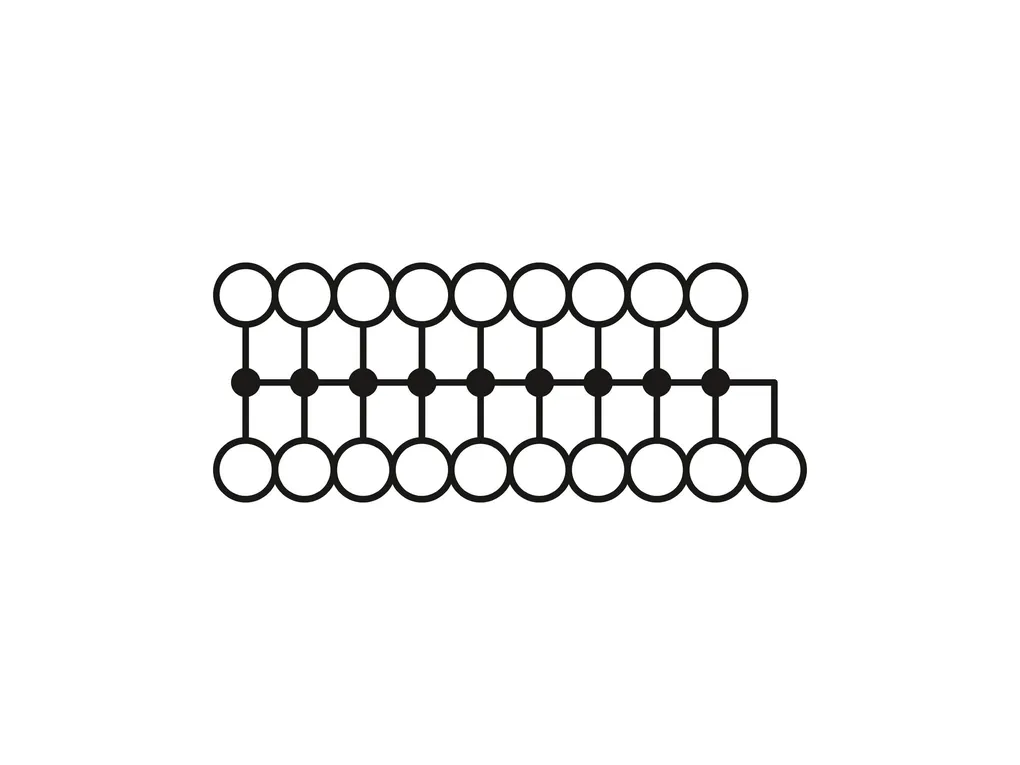

Distribution block, bridged internally, nom. voltage: 450 V, nominal current: 32 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.2 mm²-6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², mounting type: adhesive, color: brown

Cod. Articolo: 3274042 copia - copy

Cod. Fornitore: 3274042 copia - copy

PHOENIX CONTACT

Notes	General Note: The maximum load current of a single clamping unit must not be exceeded. For power distribution applications, IEC 60364-4-43.2008; modified + corrigendum Okt. 2008 (DINÃVDEÃ0100-430:2010-10) sectionÃ433.2 ff must be observed!
Product properties	Product type: Distributor terminal block Number of connections: 19 Number of rows: 1 Potentials: 1 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage: 6 kV Maximum power dissipation for nominal condition: 1.02 W
Connection data	Service Entrance: yes Number of connections per level: 19 Nominal cross section: 4 mm² Rated cross section AWG: 6 Load contact Stripping length: 8 mm ... 10 mm Internal cylindrical gage: A3 Connection in acc. with standard: IEC 60998-2-2 Conductor cross section rigid: 0.2 mm² ... 6 mm² Cross section AWG: 24 ... 10 (converted acc. to IEC) Conductor cross section flexible: 0.2 mm² ... 4 mm² Conductor cross section, flexible [AWG]: 24 ... 12 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.2 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.2 mm² ... 4 mm² Nominal current: 32 A Maximum load current: 41 A Maximum total current: 63 A Nominal voltage: 450 V Line contact Stripping length: 12 mm ... 14 mm Connection in acc. with standard: IEC 60998-2-2 Conductor cross section rigid: 0.5 mm² ... 10 mm² Cross section AWG: 20 ... 6 (converted acc. to IEC) Conductor cross section flexible: 0.5 mm² ... 10 mm² Conductor cross section, flexible [AWG]: 20 ... 8 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.5 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.5 mm² ... 10 mm² Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve): 0.5 mm² ... 2.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 2.5 mm² Nominal current: 57 A Maximum load current: 57 A Nominal cross section: 10 mm² Load contact Connection cross sections directly pluggable Conductor cross section rigid: 0.34 mm² ... 6 mm² Conductor cross section, rigid [AWG]: 22 ... 10 (converted acc. to IEC) Conductor cross-section flexible (ferrule without plastic sleeve): 0.34 mm² ... 4 mm² Flexible conductor cross section (ferrule with plastic sleeve): 0.34 mm² ... 4 mm² Line contact Connection cross sections directly pluggable Conductor cross section rigid: 1 mm² ... 16 mm² Conductor cross-section flexible (ferrule without plastic sleeve): 1 mm² ... 10 mm² Flexible conductor cross section (ferrule with plastic sleeve): 1 mm² ... 10 mm²
Dimensions	Width: 64.8 mm Height: 28.6 mm Depth: 22.7 mm
Material specifications	Color: brown Flammability rating according to UL 94: V0 Insulating material group: I Insulating material: PA Static insulating material application in cold: -60°C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130°C Relative insulation material temperature index (Elec., UL 746 B): 130°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3 Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg Surface flammability NFPA 130 (ASTM E 162): passed Specific optical density of smoke NFPA 130 (ASTM E 662): passed Smoke gas toxicity NFPA 130 (SMP 800C): passed
Mechanical properties	Mechanical data Open side panel: No
Mechanical tests	Attachment on the carrier Result: Test passed Note: When aligning several blocks, it is recommended to either place a DIN rail adapter underneath the connection point or a flange element between the blocks. For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. When using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half.
Environmental and real-life conditions	Needle-flame test Time of exposure: 30 s Result: Test passed Oscillation/broadband noise Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Spectrum: Service life test categoryÃ2, bogie-mounted Frequency: f₁ = 5 Hz to f₂ = 250 Hz ASD level: 6.12 (m/s²)²/Hz Acceleration: 3.12g Test duration per axis: 5 h Test directions: X-, Y- and Z-axis Result: Test passed Shocks Specification: DINÃENÃ50155 (VDEÃ0115-200):2018-05 Pulse shape: Half-sine Acceleration: 30g Shock duration: 18Ãms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Result: Test passed Ambient conditions Ambient temperature (storage/transport): -25°C ... 60°C (for a short time, not exceeding 24Ãh, -60Ã°C to +70Ã°C) Ambient temperature (assembly): -5°C ... 70°C Ambient temperature (actuation): -5°C ... 70°C Permissible humidity (storage/transport): 30 % ... 70 %
Standards and regulations	Connection in acc. with standard: IEC 60998-2-2
Mounting	Mounting type: adhesive
