2909775 PHOENIX CONTACT -

RIF-1-RPT-LV-120AC/2X21MS - Relay Module

Preassembled relay module with Push-in connection, consisting of: relay base, relay retaining bracket, plug-in interference suppression module, and power contact relay with test button and integrated status LED. Contact switching type: 2changeover contacts. Input voltage: 120VAC

Product Code: 2909775 copia - copy

Partner cod.: 2909775 copia - copy

PHOENIX CONTACT

Product properties	Product type: Relay Module Product family: RIFLINEÃcomplete Application: Universal Palm switch Operating mode: 100% operating factor Mechanical service life: approx. 5x 10⁶ cycles Insulation characteristics Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Safe isolation between input and output Basic insulation between the changeover contacts Overvoltage category: III Pollution degree: 2
Electrical properties	Service life electrical: see diagram Maximum power dissipation for nominal condition: 0.84 W Test voltage (Winding/contact): 4 kV_rms (50ÃHz, 1Ãmin., winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kV_rms (50ÃHz, 1Ãmin., changeover contact/changeover contact) Rated insulation voltage: 250 VÃAC Rated surge voltage: 6 kV (Input/output) 4 kV (between the changeover contacts)

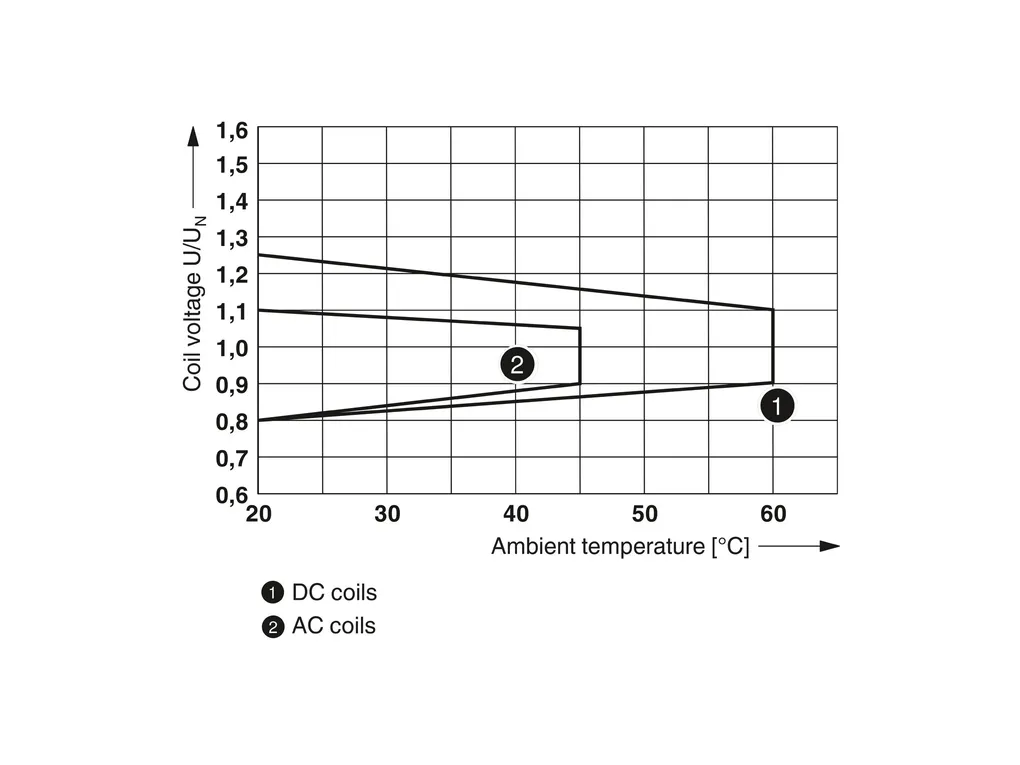

Input data	Coil side Nominal input voltage U_N: 120 VÃAC Input voltage range: 96 VÃAC ... 132 VÃAC (20Ã°C) Input voltage range in reference to U_N: see diagram Mains frequency: 50/60 Hz Drive and function: monostable Drive (polarity): polarized Typical input current at U_N: 7 mA Typical response time: 4 ms ... 10 ms Typical release time range: 3 ms ... 20 ms Coil voltage: 120 VÃAC Protective circuit: Varistor Operating voltage display: Yellow LED
Output data	Switching Contact switching type: 2 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage: 250 V AC/DC Minimum switching voltage: 12 V (10ÃmA) Limiting continuous current: 5 A (see diagram) Maximum inrush current: 16 A (20 ms, N/O contacts) Min. switching current: 10 mA (12ÃV) Interrupting rating (ohmic load) max.: 192 W (at 24 V DC) 62 W (at 48 V DC) 42 W (at 60 V DC) 55 W (at 110 V DC) 66 W (at 220 V DC) 2000 VA (for 250 V AC) Switching capacity min.: 120 mW Utilization category CB Scheme (IEC 60947-5-1): AC15, 1.5 A/250 V (N/O contact) DC13, 1 A/24 V (N/O contact)
Connection data	Connection method: Push-in connection Stripping length: 8 mm Conductor cross section rigid: 0.14 mm² ... 1.5 mm² Conductor cross section flexible: 0.14 mm² ... 1.5 mm² 0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve) 0.14 mm² ... 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block) Conductor cross section AWG: 26 ... 16 (solid) 26 ... 16 (flexible)
Dimensions	Drill hole Diameter: 3.2 mm Width: 16 mm Height: 96 mm Depth: 75 mm
Material specifications	Flammability rating according to UL 94: V2 (Housing)
Environmental and real-life conditions	Ambient conditions Degree of protection (Relay base): IP20 (Relay base) Degree of protection (Relay): RT II (Relay) Ambient temperature (operation): -40°C ... 45°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60
Standards and regulations	Standards/regulations: IEC 60947-5-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
