2980416 PHOENIX CONTACT -

PLC-BSC-120UC/21-21/SO46 - Relay base

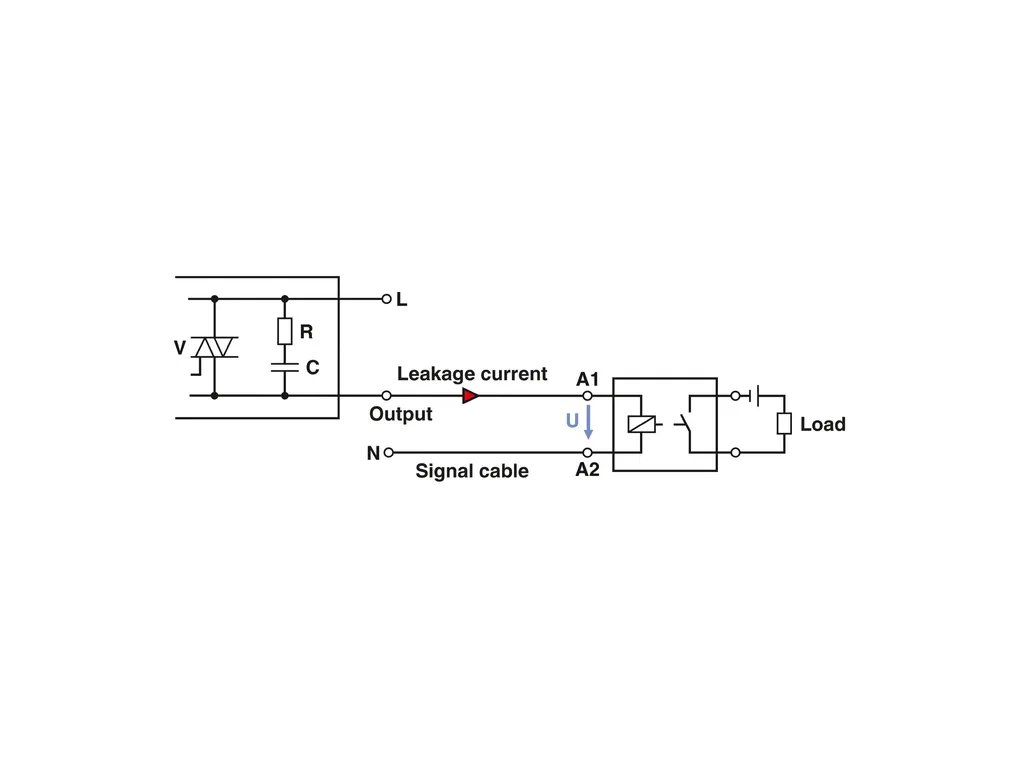

14 mm PLC basic terminal block with interference current and interference voltage protection on the control side, with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, with integrated RCZ filter, 2 changeover contacts, input voltage 120 V AC

Product Code: 2980416 copia - copy

Partner cod.: 2980416 copia - copy

PHOENIX CONTACT

Notes	Utilization restriction EMC note: EMC: class A product, see manufacturer's declaration in the download area
Product properties	Product type: Relay socket Product family: PLC-INTERFACE Application: Filter to prevent interference Operating mode: 100% operating factor Compatible components: Miniature relay, REL-MR-110DC/21-21AU, REL-MR-110DC/21-21 Insulation characteristics Pollution degree: 3
Electrical properties	Protective circuit: Bridge rectifier; Bridge rectifier RC element
Input data	Nominal input voltage U_N: 120 VÃAC Input voltage range in reference to U_N: 0.78 ... 1.4 (at 20Ã°C) Typical input current at U_N: 9 mA Typical response time: 7 ms Typical release time: 10 ms Relay assembly Nominal input voltage U_N: 120 VÃAC Input voltage range in reference to U_N: 0.78 ... 1.4 Typical input current at U_N: 6 mA (50ÃHz) 7 mA (60ÃHz) Typical response time: 7 ms Typical release time: 10 ms Typical release voltage: 16 VÃAC Operating voltage display: Yellow LED Protective circuit: Bridge rectifier; Bridge rectifier Filter; Filter Optocoupler assembly Operating voltage display: Yellow LED Protective circuit: Bridge rectifier; Bridge rectifier Filter; Filter
Output data	Compatible components: Miniature relay, REL-MR-110DC/21-21AU, REL-MR-110DC/21-21
Connection data	Connection method: Screw connection Stripping length: 8 mm Screw thread: M3 Conductor cross section rigid: 0.14 mm² ... 2.5 mm² Conductor cross section flexible: 0.14 mm² ... 2.5 mm² 0.2 mm² ... 2.5 mm² (Single ferrule) 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) Conductor cross section AWG: 26 ... 14 Tightening torque: 0.6 Nm ... 0.8 Nm
Signaling	Status display: LED
Dimensions	Width: 14 mm Height: 80 mm Depth: 94 mm
Material specifications	Flammability rating according to UL 94: V0 (Housing)
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 55°C Ambient temperature (storage/transport): -40°C ... 85°C
Approvals	CE Certificate: CE-compliant UKCA Certificate: UKCA-compliant Shipbuilding approval Certificate: TAE0000196 Corrosive gas test Identification: ISA-S71.04. G3 Harsh Group ENÃ60068-2-60 DNV GL data Temperature: D Humidity: A Vibration: B/C EMC: B Enclosure: Required protection according to the Rules shall be provided upon installation on board
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Electromagnetic compatibility: Conformance with EMC directive
Mounting	Mounting type: DIN rail mounting Assembly instructions: in rows with zero spacing Mounting position: any
