| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |

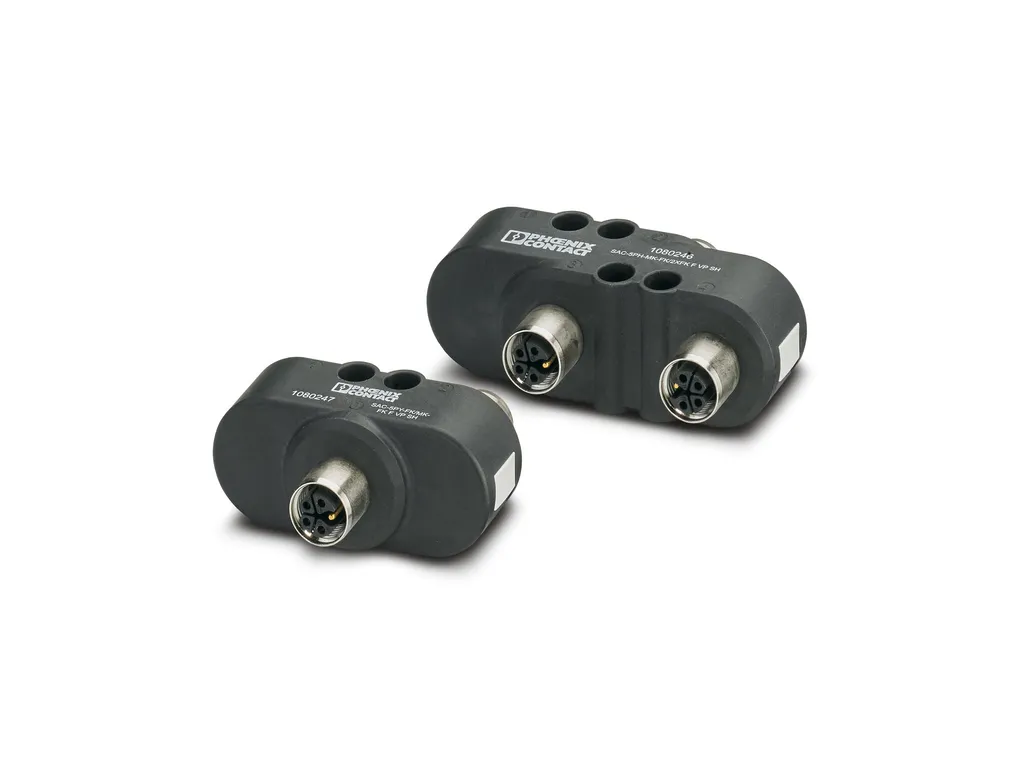

| Product properties | Product type: H-distributor Number of positions: 5 Application: Power supply No. of cable outlets: 3 Shielded: yes Coding: K Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Nominal voltage UN: 630 VÃAC Nominal current IN: 16 A (at 40ðC) |
| Signaling | Status display: No Status display present: No |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a9937a460600ab49a2ce519ed56072aa/-S204x204-FJPG Width: 28 mm Height: 47 mm Length: 80 mm Center distance: 35 mm |
| Material specifications | Material: CuZn CuNi Flammability rating according to UL 94: V0 Seal material: HNBR Material of grip body: PBT Contact surface material: Au Contact carrier material: PBT Material for screw connection: Brass, nickel-plated |
| Connector | Connection 1 Type: Plug straight M12 Coding type: K Connection 2 Type: Socket straight M12 Coding type: K |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
