1088669 PHOENIX CONTACT -

IPD P 5P2,5 F BK - Connector

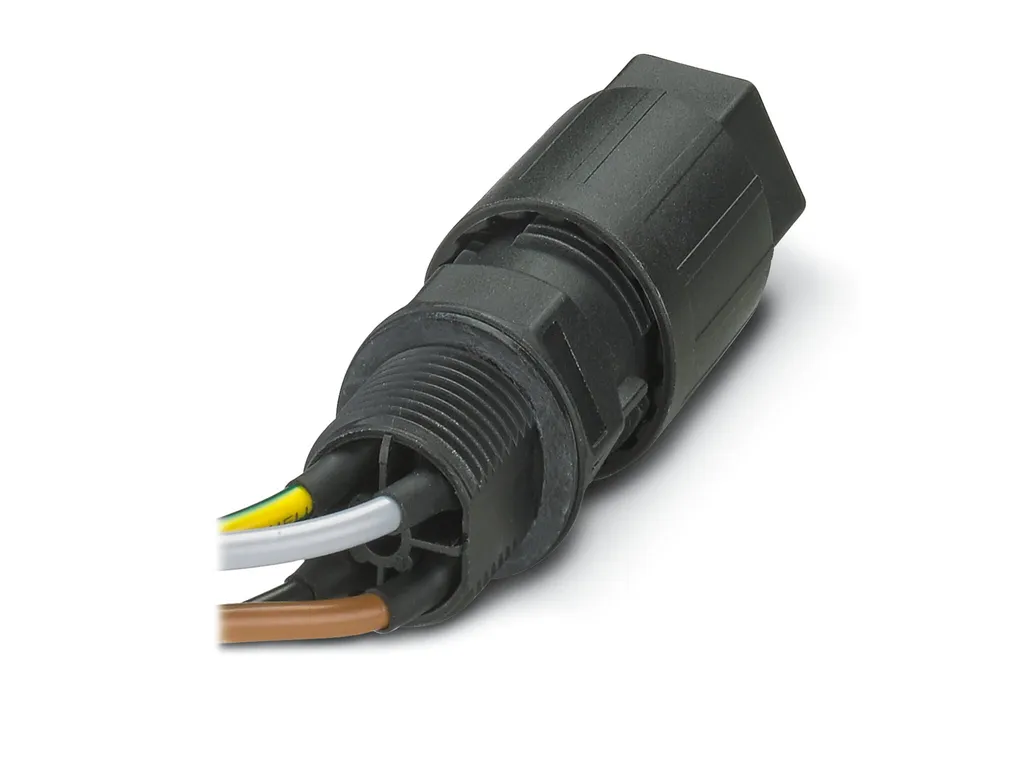

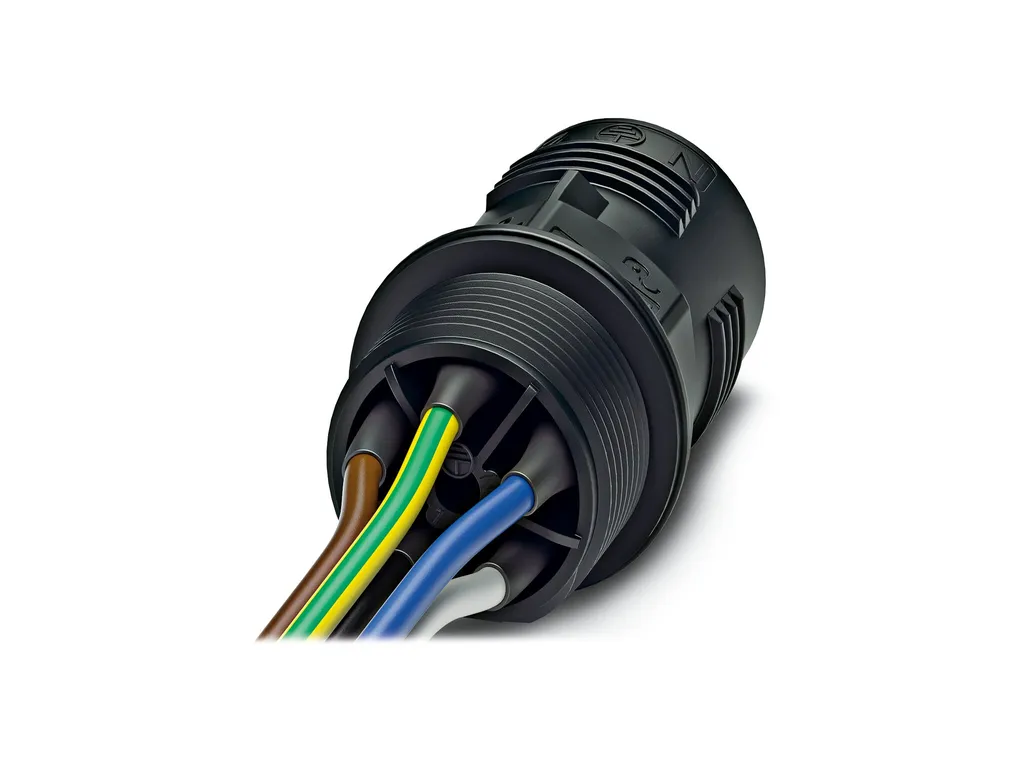

Connector, product family: IPD, connection method: Push-lock connection, number of positions: 4+PE, Socket, 0.5 mm² ... 2.5 mm², 600 V, 17.5 A, PA, black, coding: P, external cable diameter: 7 mm ... 11 mm and 11 mm ... 16 mm

Cod. Articolo: 1088669 copia - copy

Cod. Fornitore: 1088669 copia - copy

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties.
Product properties	Product type: Installation connector Product family: IPD Number of positions: 5 Connection profile: 4+PE Position marking: 1, 2, 3, N, PE Number of connections per position: 1 Coding: P Data management status Article revision: 00 Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated surge voltage (III/3): 6 kV Rated current: 17.5 A Rated voltage (III/3): 600 V Nominal voltage U_N: 600 V AC 600 V DC Nominal current I_N: 17.5 A
Connection data	Connection technology Connection method On the field side: Push-lock connection Conductor connection Conductor cross section flexibel: 0.5 mm² ... 2.5 mm² Conductor cross section solid: 0.5 mm² ... 2.5 mm² Conductor cross section with ferrule: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 20 ... 14

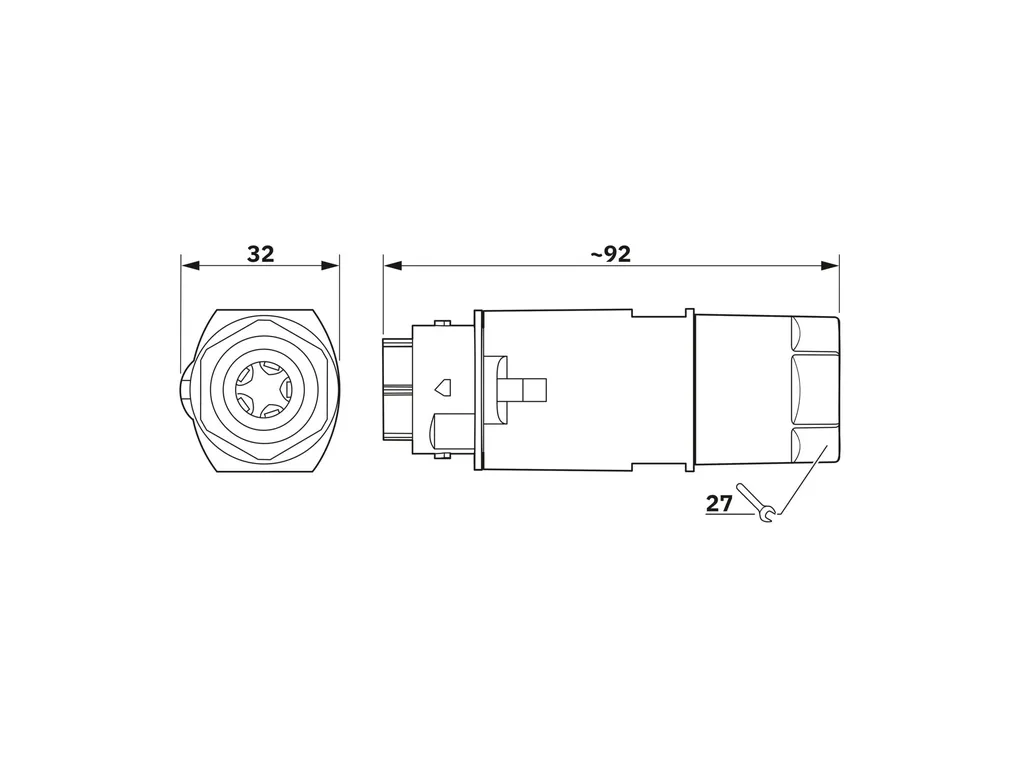

Dimensions	Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/5768/full/b1500?format=jpg Width: 32.5 mm Height: 32.1 mm Length: 91.6 mm
Material specifications	Color (Housing): black (RAL 9005) Material Housing: PA Material Seal: NBR Flammability rating according to UL 94: V0 Contact material: Cu Contact surface material: Ni/Ag/Sn
Cable/line	External cable diameter: 7 mm ... 11 mm 11 mm ... 16 mm Position marking: 1, 2, 3, N, PE
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50 (IP66/IP68/IP69K) 100 (IP66)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP66 IP68 (2 m / 24 h) IP69K Touch-proof when not plugged in (IP2X) Impact strength: IK07 Ambient temperature (operation): -30 °C ... 100 °C Temperature when conductor connected: -5 °C ... 50 °C Ambient temperature (storage/transport): -30 °C ... 100 °C Resistance to UV radiation: yes
