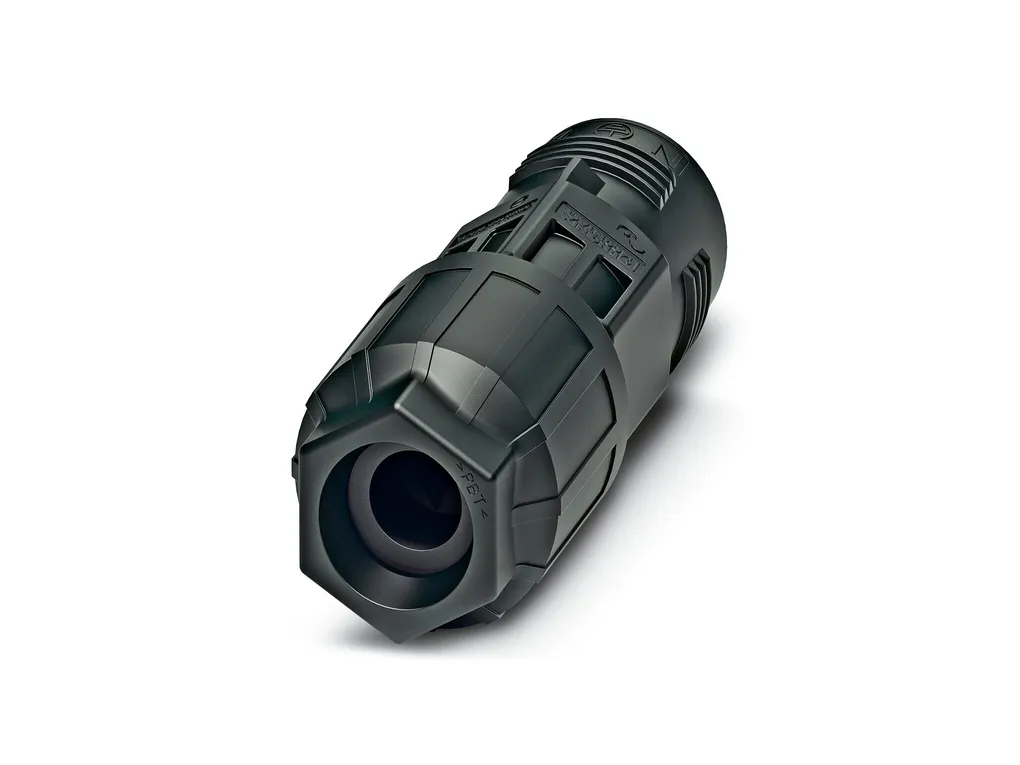

| Product properties | Type: QPD 4x2,5 Product type: Panel feed-through Product family: QPD Number of positions: 4 Position marking: 1, 2, 3, 4 Number of connections: 10 Number of connections per position: 1 Series: QPD Coding: coded Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Connection data | Connection technology Connection technology: QUICKON connection Connection system, internal: IDC connection Frequency of connections between conductors of the same cross section: max. 10 10 Conductor connection Conductor cross section flexibel: 1 mm² ... 2.5 mm² Conductor cross section solid: 1 mm² ... 2.5 mm² Connection cross section AWG: 16 ... 14 Tightening torque Union nut: 7 Nm Tightening torque Locking nut: 5 Nm |

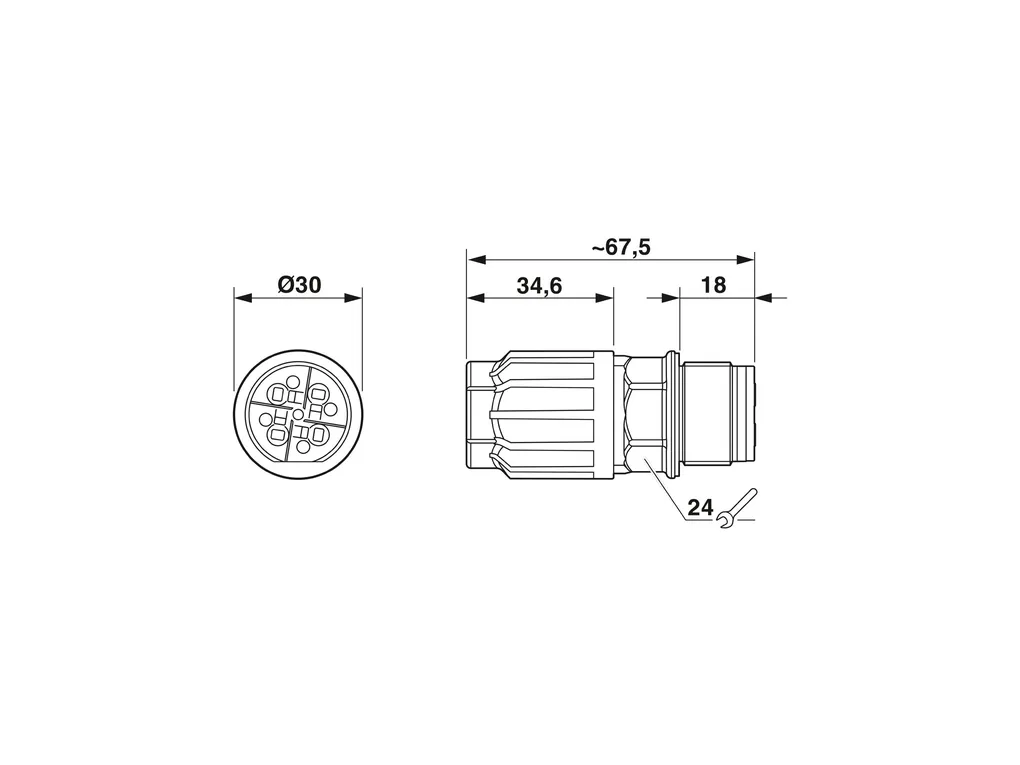

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b303e07df27df84f95ef14ff87ddcad8/-S204x204-FJPG Width: 30 mm Height: 30 mm Length: 67.5 mm Diameter: 30 mm |
| Electrical properties | Rated surge voltage (II/2): 6 kV Rated surge voltage (III/2): 6 kV Rated surge voltage (III/3): 6 kV Rated current: 20 A Contact resistance: < 3 mé rated voltage (II/2): 1000 V rated voltage (III/2): 690 V Rated voltage (III/3): 690 V Nominal voltage UN: 690 VÃAC 690 VÃDC Nominal current IN: 20 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: max. 50 |
| Material specifications | Material: PA Cu Silver-plated Flammability rating according to UL 94: V0 Material wire insulation: PVC /PE / rubber / TPE |
| Cable/line | Structure of individual litz in acc. with VDE 0295 / smallest wire diameter: VDE 0295 class 1 to 6/min. 0.15 mm External cable diameter (): 6 mm ... 10 mm Wire diameter including insulation: 2 mm ... 3.6 mm Position marking: 1, 2, 3, 4 Cable cross section: 2.5 mm² Material wire insulation: PVC/PE/TPE/rubber Halogen-free: yes |
| Mounting | Mounting type: Front mounting M25 Connection method: Push-in connection |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (2Ãm / 24Ãh) IP69K Ambient temperature (operation): -40°C ... 100°C Temperature when conductor connected: -5°C ... 50°C Ambient temperature (storage/transport): -40°C ... 100°C |
