1096429 PHOENIX CONTACT -

MACX-TR-1T-MUL - Timer relay

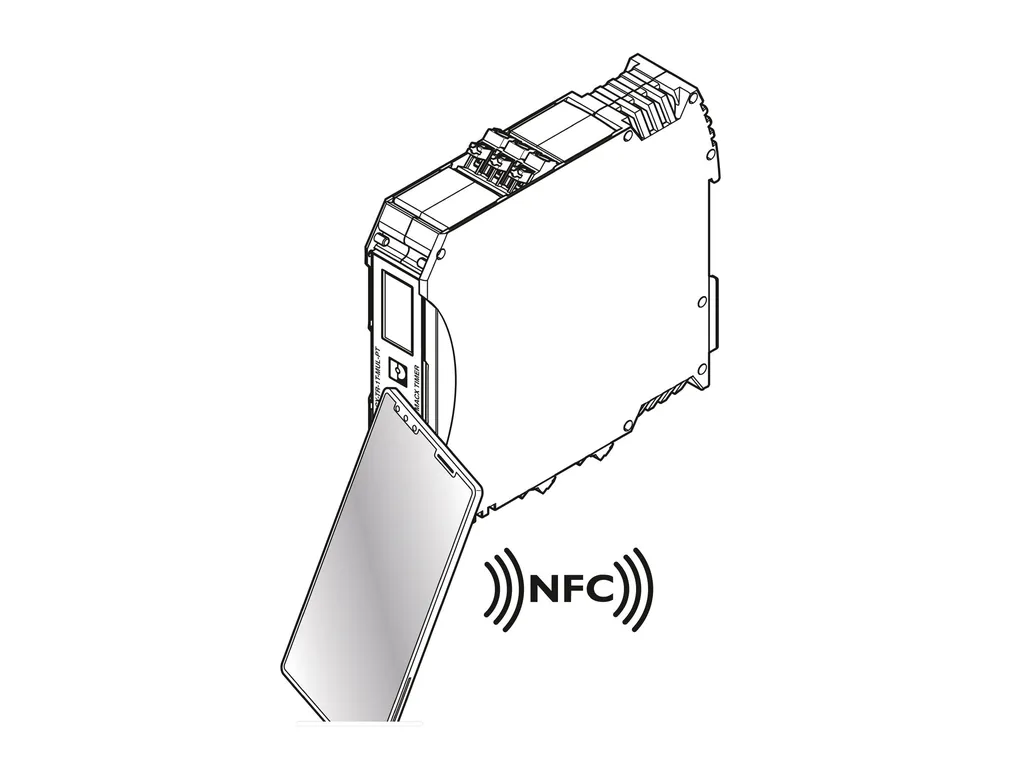

Multifunctional time relay, 24VAC/DC...240VAC/DC wide-range supply, with 13 functions, time range adjustable (10ms...999h:59min), two configuration possibilities, password protection, supporting dry contacts, PNP and NPN proximity switch inputs, 2 PDTs, screw connection.

Cod. Articolo: 1096429 copia - copy

Cod. Fornitore: 1096429 copia - copy

PHOENIX CONTACT

Product properties	Product type: Timer relay Mechanical service life: Approx. 3x 10⁷ cycles Insulation characteristics Insulation: Basic insulation Insulation characteristicsÃ¢Ã¢¬Ã¢¹ Insulation: Basic insulation Overvoltage category: III Pollution degree: 3
Electrical properties	Service life electrical: approx. 1x 10⁵ cycles, resistive load 2000ÃVÃA Nominal frequency: 48 Hz ... 63 Hz Nominal power consumption: 2.5 VA (0.8ÃW) Rated insulation voltage: 300 VÃAC Dielectric strength: 2 kV ((2ÃmA, 60Ãs) (IEC 60947-5-1))
Input data	Nominal power consumption: 2.5 VA (0.8ÃW) Input voltage range: 24 V AC/DC ... 240 V AC/DC (-15Ã%Ã...Ã+10Ã%) Temperature coefficient, typical: Ã¢Ã¢°¤ 0.01 %/°C Recovery time: 100 ms Setting range time: 10 ms ... 59999 min. (10ÃmsÃ...Ã999Ãh 59Ãmin.) Setting accuracy: Ã¢Ã¢°¤ 0.5 % (Ã¯¼Ã¾1Ãs) Repeat accuracy: Ã¢Ã¢°¤ 0.05 % (Ã¯¼Ã¾1Ãs) Control Connection name: Non-floating, terminals A1-B1 Control pulse length: 50 ms
Output data	Switching Contact switching type: 2 floating changeover contacts Contact material: AgNi (90/10) Maximum switching voltage: 400 VÃAC Interrupting rating (ohmic load) max.: 2000 VA (8ÃAÃ/Ã250ÃVÃAC) Output fuse: 8 A (fast-blow)
Connection data	Connection method: Screw connection Stripping length: 10 mm Conductor cross section rigid: 0.2 mm² ... 2.5 mm² Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section AWG: 24 ... 14 Tightening torque: 0.5 Nm ... 0.6 Nm (5ÃlbÃinÃ...Ã7ÃlbÃin)
Dimensions	Width: 22.5 mm Height: 109 mm Depth: 114 mm
Material specifications	Flammability rating according to UL 94: V0 Housing insulation material: PBT
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 60°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 2000 m Permissible humidity (operation): 10 % ... 95 % (non-condensing)
Approvals	CE Identification: CE-compliant UL, USA/Canada Identification: UL/C-UL Listed UL 508 CCC Identification: GB/T 14048.5
EMC data	Low Voltage Directive: Conformance with Low Voltage Directive Noise immunity: EN 61000-6-2 Electromagnetic compatibility: Conformance with EMC directive Noise emission: EN 61000-6-4
Standards and regulations	Standards/regulations: IEC 60947-5-1 IEC 61812-1
Mounting	Mounting type: DIN rail mounting Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715 Mounting position: any
