| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.Ãby using cable ties. |
| Mounting | Assembly instructions: The wires can be connected both with ferrules and without ferrules Connection method: Push-lock spring connection |

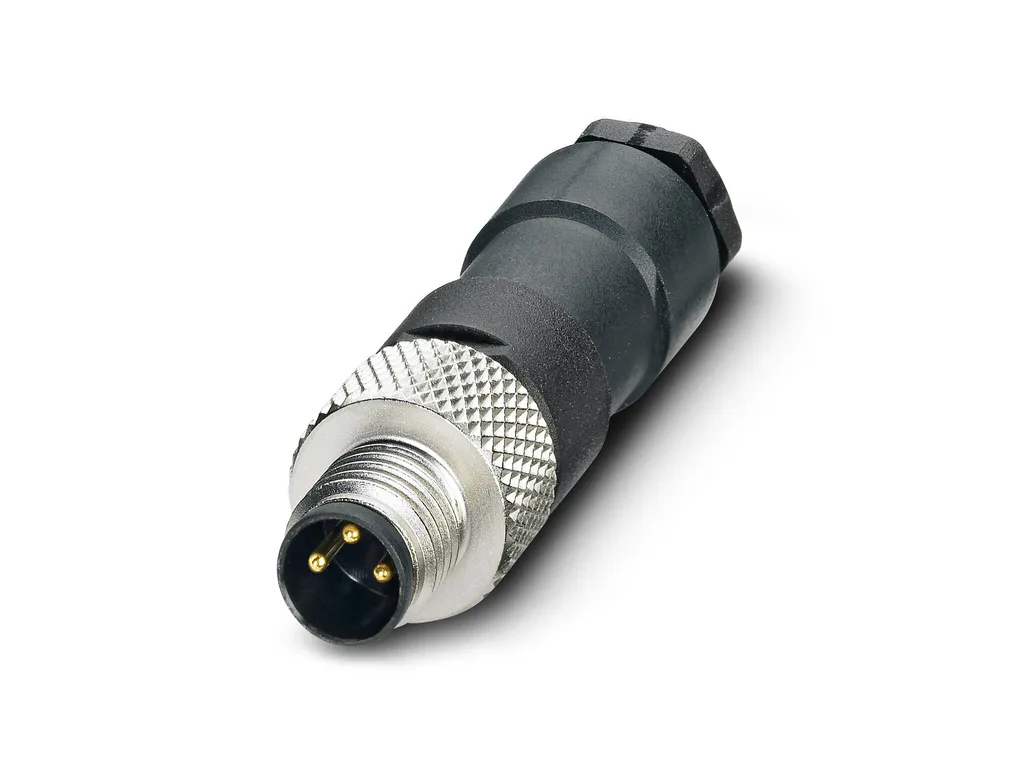

| Product properties | Product type: Circular connector (cable-side) Sensor type: Power Number of positions: 4 Application: Power supply No. of cable outlets: 1 Shielded: no Coding: T Cable outlet: straight Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/a93f84ab22313b4cb7901de238aa501c/-S204x204-FJPG Length: 70 mm External dimensions Outside diameter: 6 mm ... 11 mm Housing Diameter housing: 23 mm |
| Material specifications | Flammability rating according to UL 94: V0 Material of grip body: Brass, nickel-plated Contact surface material: Au Material for screw connection: Brass, nickel-plated |
| Connection data | Conductor connection Connection method: Push-lock spring connection Connection cross section: 1.5 mm² ... 2.5 mm² 0.75 mm² ... 2.5 mm² (with ferrule) 1.5 mm² ... 1.5 mm² (solid) Connection cross section AWG: 16 ... 14 (without ferrule) 18 ... 14 (with ferrule) Stripping length of the individual wire: 10 mm Tightening torque: 0.6 Nm (M12 knurl) 5 Nm (Pressure nut with connector housing) Pin assignment Contact | Color (signal designation) | Contact (optional): 1 = BN 2 = WH 3 = BU 4 = BK |
| Electrical properties | Rated surge voltage: 1.5 kV Nominal voltage UN: 63 VÃDC Nominal current IN: 12 A (when using 1.5 mm² conductors) 12 A (at 40ðC) |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Connector | Connection 1 Head design: Plug Head cable outlet: straight Head thread type: M12 Coding: T |
| Cable/line | Signal type/category: Power Stripping length of the individual wire: 10 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: based on IEC 61076-2-111 |
