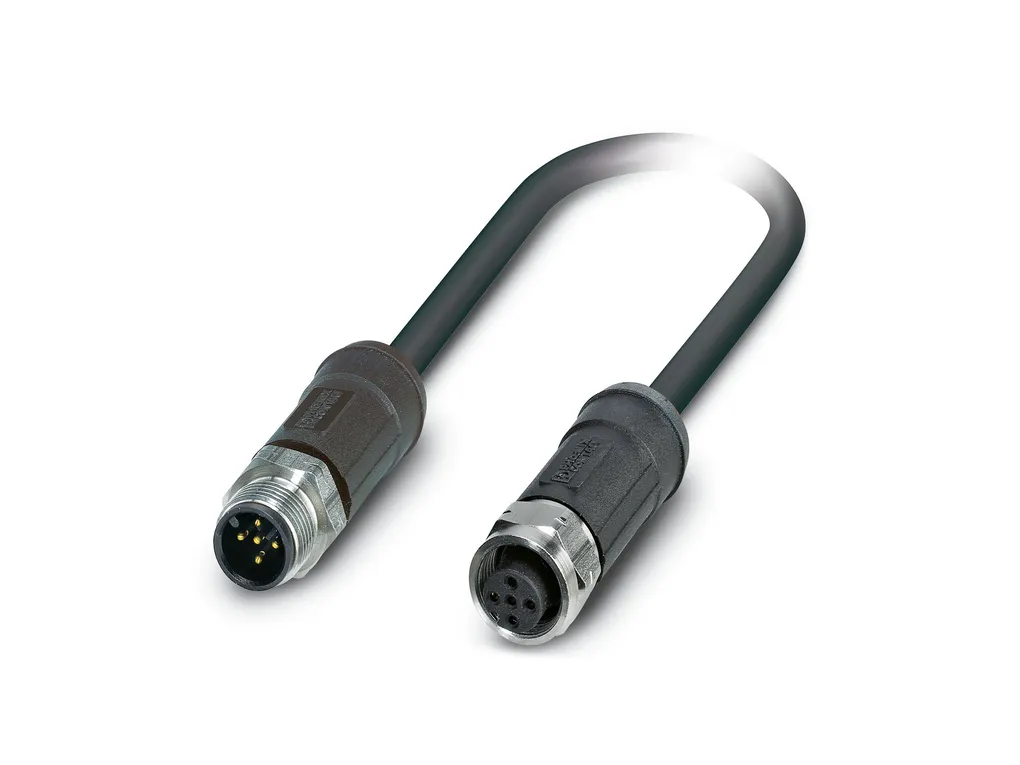

| Product properties | Product type: Power cable Application: Power supply Number of positions: 4 No. of cable outlets: 1 Shielded: yes Coding: S Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Material of grip body: PP Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 690 V AC Nominal current IN: 12 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Connector | Connection 1 Type: Plug straight M12 Coding type: S (Power) Connection 2 Type: Socket angled M12 Coding type: S (Power) |
| Cable/line | Cable length: 1.2 m PUR halogen-free orange shielded [PUR] Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/9590/full/b1500?format=jpg UL AWM Style: 20234 / 10492 (80 °C/1000 V) Number of positions: 4 Shielded: yes Cable type: PUR halogen-free orange shielded [PUR] Conductor cross section: 4x 1.5 mm² Wire diameter incl. insulation: ââ°¤ 2.5 mm External cable diameter: 9.70 mm ñ0.3 mm Outer sheath, material: PUR External sheath, color: orange RAL 2003 Conductor material: Bare Cu litz wires Material wire insulation: PP Single wire, color: black 1, black 2, black 3, green/yellow Thickness, insulation: 0.40 mm Thickness, outer sheath: 1.20 mm Overall twist: 4 wires optimally twisted Max. conductor resistance: ââ°¤ 13.3 é/km (at 20 °C) Insulation resistance: ââ°¥ 10 Mé*km (at 20 °C) Nominal voltage, cable: 1000 V AC Test voltage: 4260 V AC (5 min.) Minimum bending radius, fixed installation: 5 x D Minimum bending radius, flexible installation: 7.5 x D Smallest bending radius, fixed installation: 49 mm Smallest bending radius, movable installation: 73 mm Dynamic load capacity (bending): Max. bending cycles: 4000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s² Dynamic load capacity (torsion): Torsion: ñ25 °/m Halogen-free: according to VDE 0282-13 Appendix C Flame resistance: in accordance with EN 60332-1-2 in acc. to UL 1581 VW1 According to CSA C 22.2 No. 210-05 FT1 Resistance to oil: in accordance with DIN EN 60811-2-1 According to DIN EN 50363-10-2 Other resistance: UV resistant Low adhesion Ambient temperature (operation): -40 °C ... 90 °C (cable, fixed installation) -30 °C ... 90 °C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 (without preloading, as additional test in accordance with IEC 60529) Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 |
